Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Weaving Machine > China Best Quality Water Jet Loom With Niupai Electric Dobby

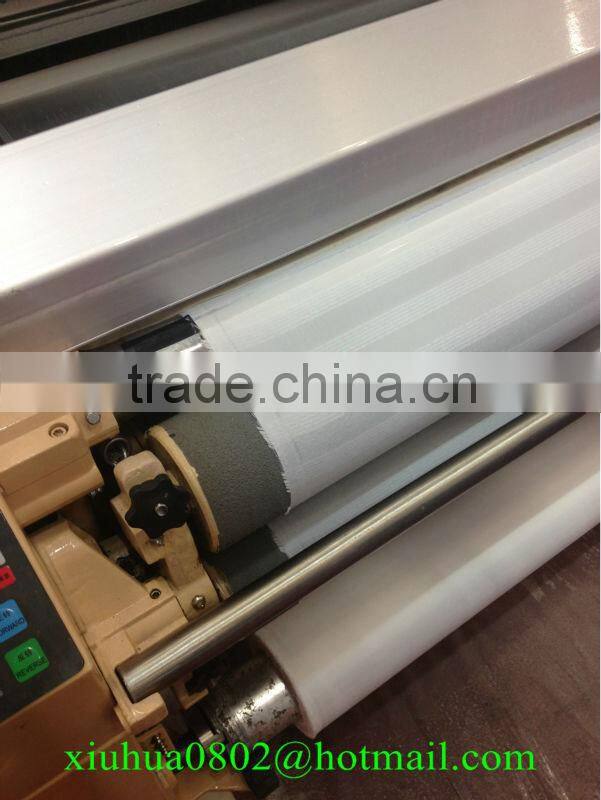

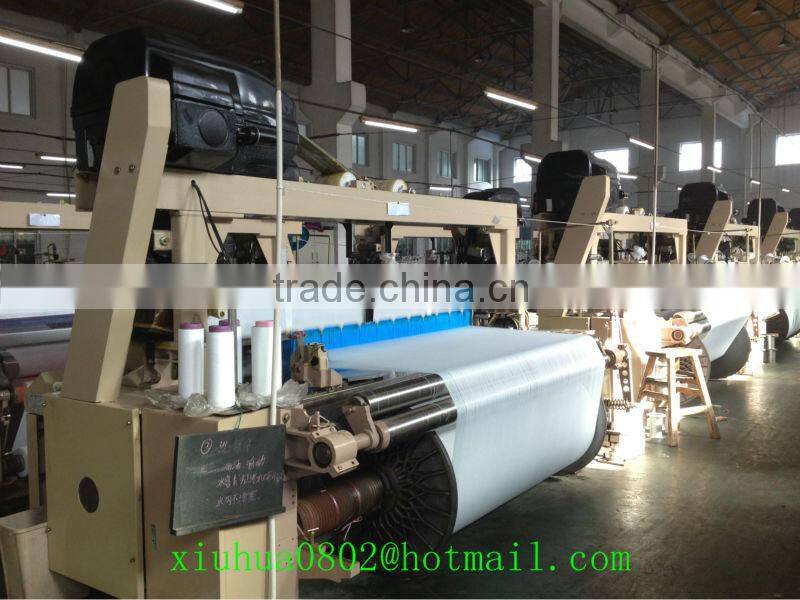

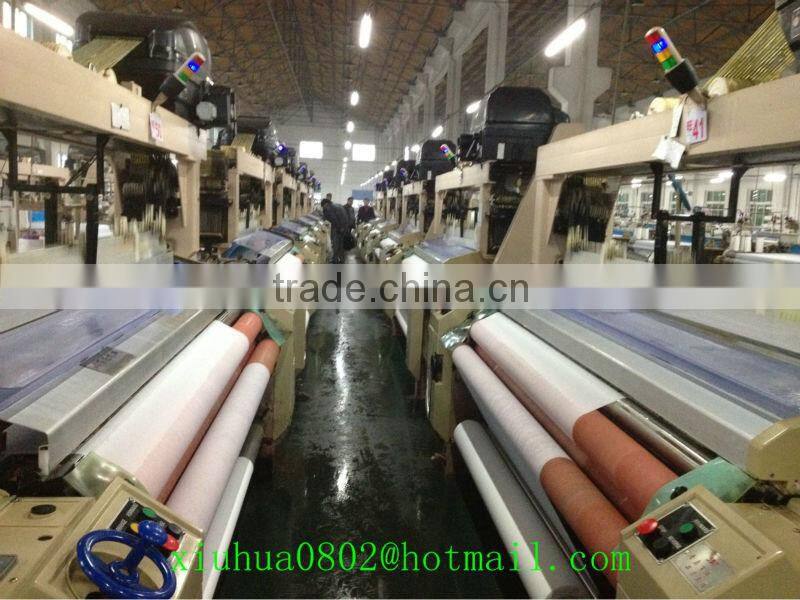

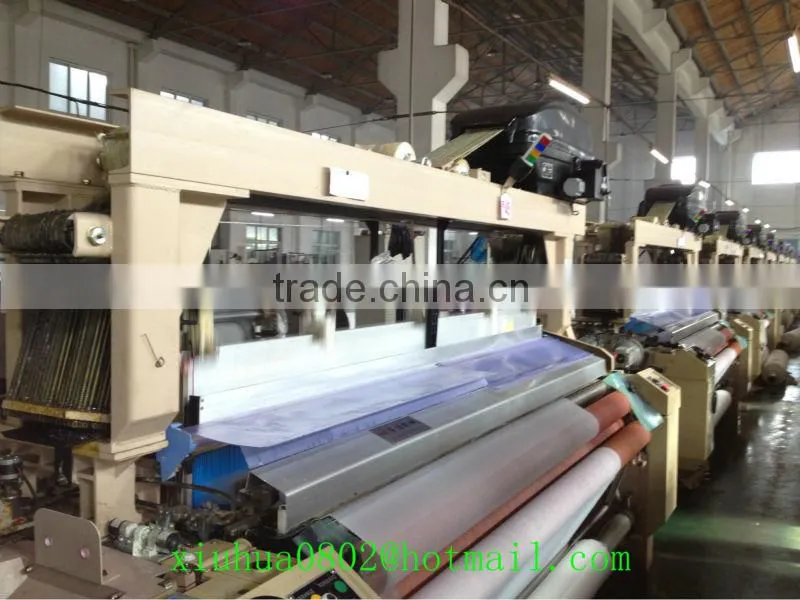

China Best Quality Water Jet Loom With Niupai Electric Dobby

Name: China Best Quality Water Jet Loom With Niupai Electric Dobby
Brand: BAIJIA
SKU: 133085151
Availability: InStock

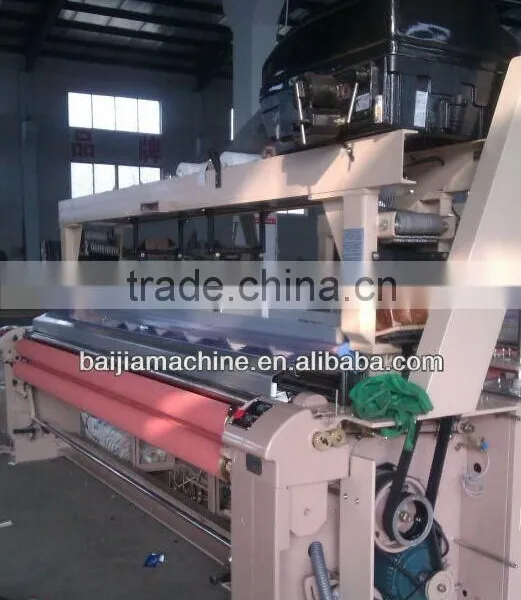

China Best Quality Water Jet Loom With Niupai Electric Dobby thumbnail-1

China Best Quality Water Jet Loom With Niupai Electric Dobby photo-1

US$ 10,000 - 20,000 MOQ: 2 Sets

Key Specifications

Get Latest Price

Condition:

New

Type:

Water Jet Loom

Application:

weaving

Contact Supplier Request Quote Chat Now

Qingdao Baijia Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Water Jet Loom

Application weaving

Place of Origin Shandong, China

Brand Name BAIJIA

Model Number JWB-408

Dimension(L*W*H) 3360*1700*2300mm

Weight 3600kg

Power(W) 3.7KW

Certification ISO 9001 CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Working range	Polyster yarn
Reed width (cm)	Nominal:150,170,190 ,210,230 260,280 330 360
Reed width (cm)	Useful reeding width:reduct 0-60cm
Filling selection	1 color 2 color at will
Weft density range	6-60pick/cm
Motor	3.5kw,4.6kw selected according to the certain model
Shedding	Plain type 2-8pcs heald frame
	Positive cam machine,4-10pcs heald frame
	Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands)
Let-off	Electronic let off-ELO
	Mechanical let-off
	Flange diameter:800mm
Take-up	Mechanical take-up
	Electronic take-up
	Upper and down temple(according to the varity of fabric)
Waste filling removel	Mechanical take-up 3 roller
Cutter	Mechanical cutter
OPERATION	– DRIVEN BY RUSH START MOTOR.STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION
	ARRANGE,RUN,FORWARD INCHING,REVERSE INCHING,PROGRAMMED POSITION STOP AFTER
	ONE CYCLE REVERSE ROTATION.
BEATING	CRANK BEATING,SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM.
FILLING INSERTION :	SINGLE PUMP (PLUNGER TYPE SPRING PRESSURE SYSTEM)
	DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM
	FEELER – IR FEELER OR OPF FEELER,USING OPTICAL CABLE.
YARN PACKAGE STAND	FLOOR MOUNTED HORIZONTAL STAND FOR – 4 PACKAGE.(2 COLOUR )
CATCH CORD	SPINDLE TWISTING SYSTEM.
TEMPLE	TOP MOUNTED,2 BARREL TYPE WITH 2 RING
WATER SUCTION	SLIT TUBE SUCTION (BLOWER TYPE )

Main technical parameters:

Reed width:135,190,210,230,250,260,280,350,360 cm

Filling insertion rate:2,280m/min max.

Speed:Maximum 900RPM(working speed depend on fabric specification)

Heald frame:Max.8pcs c for plain,10pcs for cam,16pcs for dobby

Power:1.5-4.5KW

Weft density:5-80 pick/cm

Product features

This model is named JWB-622 in our factory.it is made on the basis of JWB-851 machine body with electronic filling system.Electronic feeder system can take the most accorate control of wef length and weave the widest range of yarn.JWB-622 matching dobby shedding device is able to weave plain,complex twill/satin and chaotic pattern fabric.The model has been comprehensively upgraded in let-off,shedding,take up,driving system and structure solidity.Precision of parts' mutual cooperation has been greatly improved,which makes it run with high speed,stability and continuousness for long time.It has excellent performance in waving high density and small denier fabric.The optional electronic let off (ELO),electronic take up (ETU),slow motion,weft pick variation and speed changing device can satisty weaving demand for higher quality and more valuable fabrics,This model can be converted to plain/cam shedding;one-nozzle,three-nozzle,two-pump two-nozzle,two-pump three-nozzle,two-pump four-nozzle to meet all kinds of fabrics.
