Good Efficiency Guide Rail Hydraulic Cargo Elevator Vertical Goods Lift Platform

Good efficiency guide rail hydraulic cargo elevator vertical goods lift platform

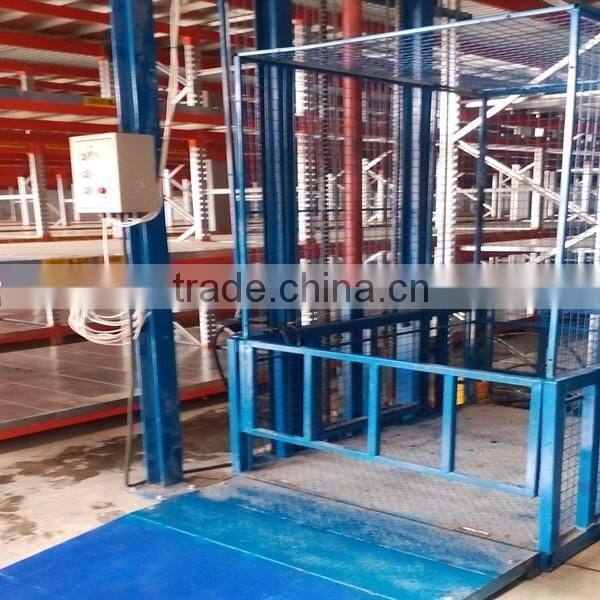

- This goods lifts is typically used to transport goods or pallets between floors of buildings.

- It can easily be used indoors or outdoors in buildings, warehouses, or wherever you need it.

- It provides efficient, convenient, and safe access to mezzanines, basements,

   or any level of a multi-storied building.

-protection, sensitive overload protection devices and locking device for falling protection.

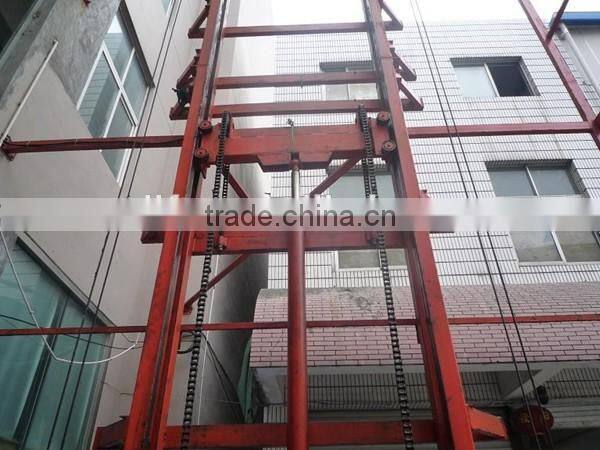

1. Hydraulic Cylinder & Chain

We use high precision wear-resisting hydro-cylinder with locking device for fall protection.The oil goes into the cylinder by the pressure of pump station,then the hydraulic oil in the cylinder can no longer backflow because of the non-return valve, forcing the cylinder rod to go up,and continue to make constant hydraulic oil into the hydraulic cylinder, and thus the cylinder rod constantly rise.The chain is model 16A or 16B , which has a smooth surface, compact structure,the standard chain gearing, smooth operation, no deviation phenomenon, high load capacity and tensile strength, easy to clean and to maintain.

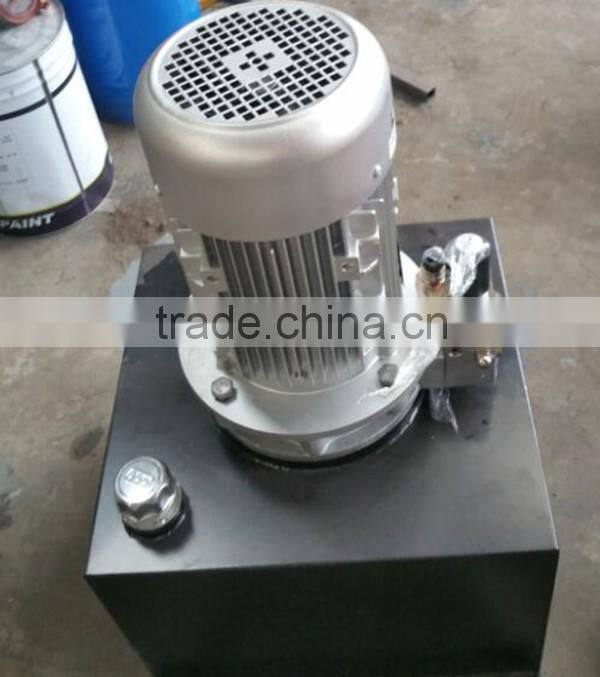

2. Hydraulic Power Unit

The hydraulic power unit consists of an electric motor and hydraulic oil tank, both Italian Hydr-app,which is the best in the world. It has incredible features for a power source: a small, compact structure, lightweight, highly efficient,great working pressure, reliable performance, and no leaks.

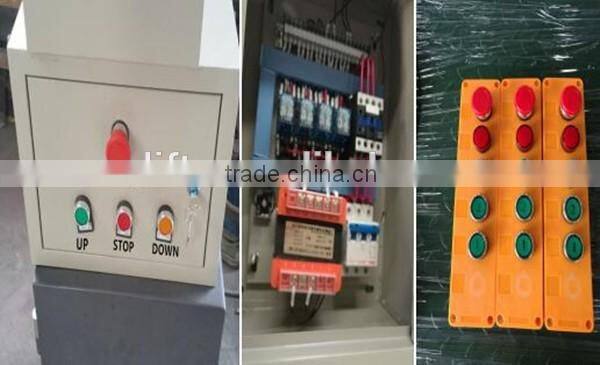

3. Control System & Control Box

The DELIXI brand control apparatus with 24V voltage, and hierarchical control, and its main parts include the a.c. contactor, electromagnetic support valve, magnetic exchange valve, and control transformer.t is safe and easy to use.Pressing “Up” or “Down” will take the lift from one floor to another,but can be stopped at any point by pressing “Stop”.

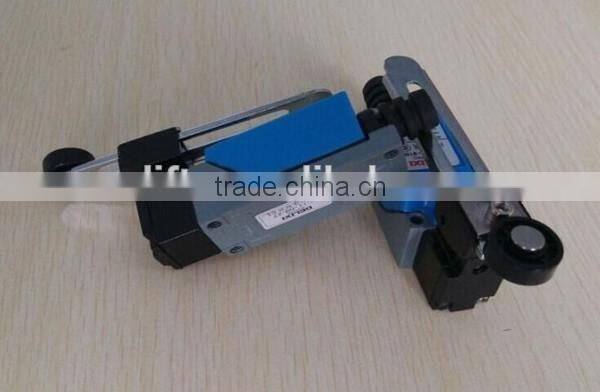

4.Limit Switch (or Travel Switch)

The DELIXI brand Limit Switch is model LXK3-20S/T, which is IP65 grade. It is used to convert mechanical displacement into an electrical signal, so the motor running status can be converted to control the mechanical action or as a program control. This allows it to limit the height of the lift with high precision.

Application

cargo lift moves materials-in factories,warehouse,industrial pants,institutions--anywhere that products or supplies need to move from one level to another. provides fast, efficient,convenient  and safe access to mezzanines, balconies, basements, and any levels in multistoried building. It can be installed indoor and outdoor applications.

Before quote the exact prices,please advise these spcs you inquired:
Lifting height:
Lifting capacity:
Platform size:
