Medical Portable Oxygen Plant

Name: Medical Portable Oxygen Plant
Brand: DYON
SKU: 133073185
Availability: InStock

US$ 80,000 - 150,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

DYON

Model Number:

KZO-30

Handan Dyon Air Separation Plant Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name DYON

Model Number KZO-30

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Ⅰ Description of main parameters and characteristics

Oxygen output 50Nm³/h

Oxygen Purity 99.6%

Working pressure ≤1.2Mpa

Starting time ~5h

Total power 98KW

Power supply As required

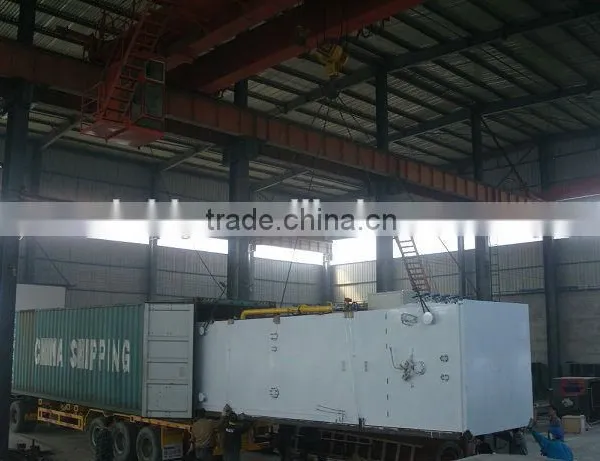

Low working Pressure, Skid-mounted structure,Oxygen Purity 99.6%-99.9%

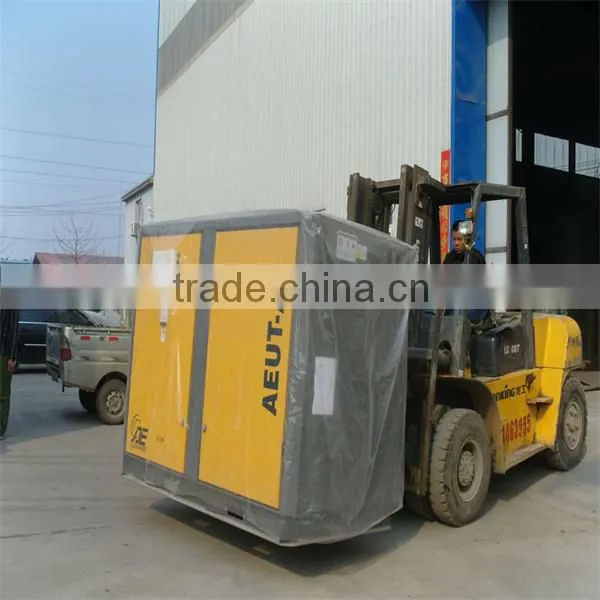

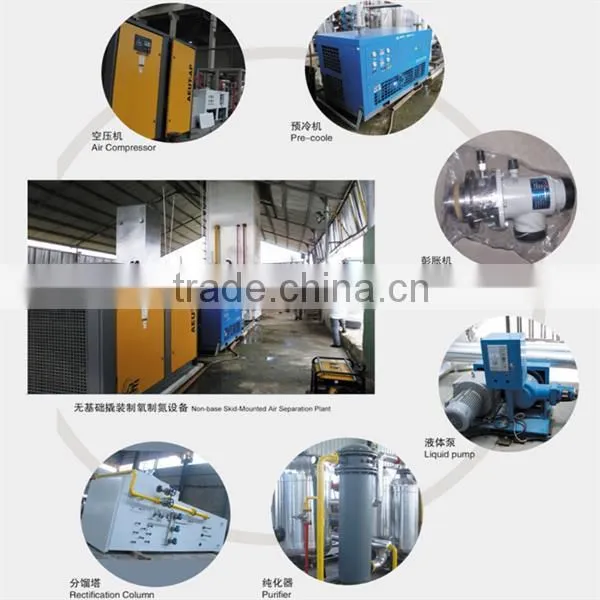

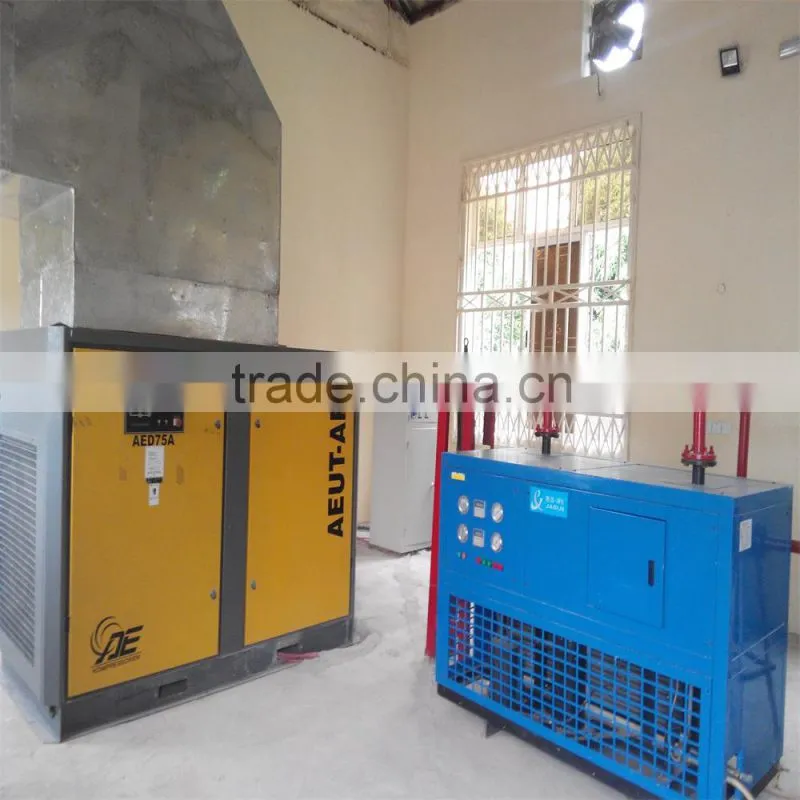

1. Latest fully automatic PLC control Screw Compressor.

2. Highly efficient gas bearing Turbo Expander, no setting required, and maintenance is virtually free.

3. Portable Digital Online Purity & flow rate analyzer incorporated into the plant for monitoring the purity and flow rate of oxygen in real time.

4.Only one or two operator required.

5.No cooling pool, colling tower required.

6. Area 42M²(14m×3m).

Ⅱ Skid mounted oxygen plant models:

Skid-Mounted Air Separation Plant Parameter List
Model	Name	KZO-40	KZON-40/40	KZO-50	KZON-50/50	KZON-80
	Oxygen	40	40	50	50	80
	Nitrogen	-	40	-	50	-
Oxygen output	Nm3/h	40	40	50	50	80
Oxygen Purity	% O2	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6
Oxygen Pressure	bar.A	150	150	150	150	150
Nitrogen Output	Nm3/h	-	40	-	50	-
Nitrogen Purity	PPmO2	-	≤10	-	≤10	-
Nitrogen Pressure	bar.A	-	150	-	150	-
Consumption	Kwh/Nm3	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5
Fractionating Column Size	mm	1500×1500 ×6000	1500×1500 ×7000	1500×1500 ×6000	1500×1500 ×7500	2000×2200 ×7000
Plant Dimension	m2	150	150	150	150	150

Skid-Mounted Air Separation Plant Parameter List
Model	Name	KZON-80/80	KZO-100	KZON-100/100	KZO-160	KZO-180
	Oxygen	80	100	100	160	180
	Nitrogen	80	-	100	-	-
Oxygen output	Nm3/h	80	100	100	160	180
Oxygen Purity	% O2	99.60%	99.60%	99.60%	99.60%	99.60%
Nitrogen Output	Nm3/h	80	-	100	-	-
Nitrogen Purity	PPmO2	≤10PPmO2	-	≤10PPmO2	-	-
Consumption	Kwh/Nm3	1.5	1.5	1.5	1.5	1.5
Fractionating Column Size	mm	2200×2000 ×8000	2200×2000 ×7000	2200×2000 ×8000	2200×2200 ×9000	2200×2200 ×10000
Plant Dimension	m2	210	210	210	250	250
