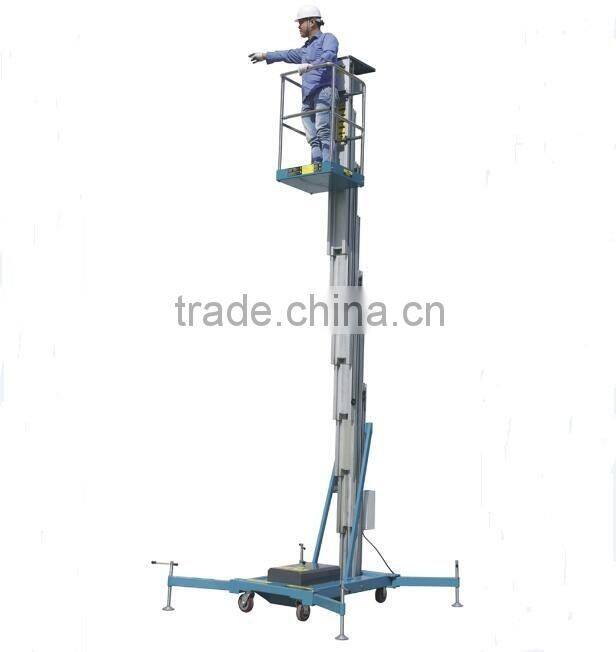

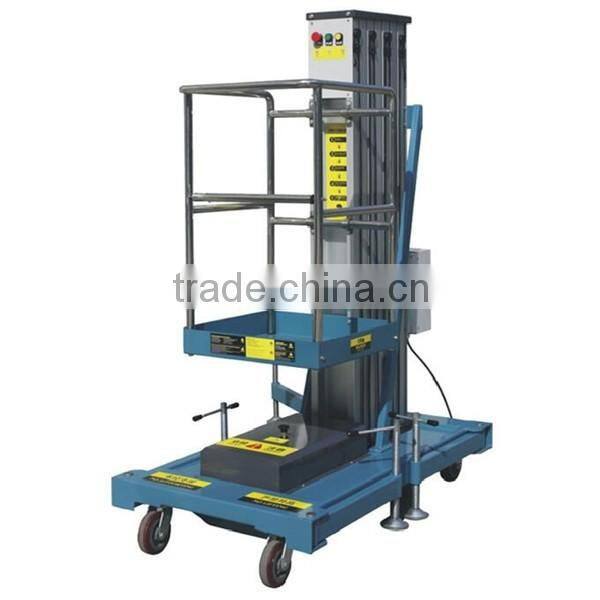

Single aluminum alloy mast lift work platforms
2. The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful.
3. Electrical control or manual pump control when the electricity is not available.
4. Two control panel: one is hand button, which may be placed in any position on the table railfor the
5. Easily pushed around to the designated sites.
6. Low energy consumption, no pollution, do no damage to the grounds.
7. The power sources can be 110V 220V 380V AC power, DC power, depending on the local power sources.
type | dimension (mm) | Platform size (mm) | Load capacity (kgs) | Power (kw) | Lift height (m) |
SJL0.14(single) | 1100x850x1980 | 600x600 | 100 | 0.75 | 4 |
SJL0.1-6(single) | 1200x850x1980 | 600x600 | 100 | 0.75 | 6 |
SJL0.1-8(single) | 1300x850x1980 | 600x600 | 100 | 0.75 | 8 |
SJL0.110(single) | 1400x850x1980 | 600x600 | 100 | 0.75 | 10 |
SJL0.2-6(double) | 1300x900x1980 | 1200x600 | 200 | 1.5 | 6 |
SJL0.2-8(double) | 1400x900x1980 | 1200x600 | 200 | 1.5 | 8 |
SJL0.210(double) | 1900x1000x1980 | 1500x600 | 200 | 1.5 | 10 |
SJL0.212(double) | 2000x1000x1980 | 1550x600 | 200 | 1.5 | 12 |
SJL0.214(double) | 2000x1000x2280 | 1600x600 | 200 | 1.5 | 14 |
SJL0.216 (double) | 3000x1500x2200 | 1500x600 | 200 | 2.2 | 16 |
SJL0.2-14(four) | 2000x1500x2400 | 1600x900 | 250 | 2.2 | 14 |
SJL0.3-16(four) | 2500x1300x2400 | 1800x950 | 300 | 2.2 | 16 |
SJL0.3-18(four) | 2500x1300x3000 | 1800x950 | 300 | 2.2 | 18 |
SJL0.3-20(four) | 3000x1500x2200 | 1700x900 | 300 | 2.2 | 20 |
