RGB 3w*37pcs led beam moving head light

Specifications

RGB 3w*37pcs led beam moving head light

Light Video is available, if you have any interest, please leave your email address, we will send it to you soon. Tks:)

200W & 230W Moving Head Beam Sharpy light is available in sale-scape, if you have any interest, please contact us directly or went to our Aliexpress store. Thank you.

VSL-HEAD BEAM 3W37 RGB is a compact moving Led-Washer with high luminous capacity (>2800 lumen) and simple operating system. LED section is equipped with 37 high-efficiency 3W LEDs with RGB colour synthesis (13 red, 12 green, 12 blue). The brand new optical design with tubular tracks is conceived to feature a very bright and narrow beam (6°) for striking performance even in long-throw projections.

Supported by its small dimensions and exceptionally low weight (only 6.5 Kg), VSL-HEAD BEAM 3W37 RGB is the fastest V-SHINY moving-head allowing immediate repositioning and fast rushing over music beats.

Its affordable price, low power consumption and compactness makes  VSL-HEAD BEAM 3W37 RGB  ideal for projects requiring several fixtures like large matrices and as dynamic replacement for static Par cans in Live, disco, TV studios, exhibitions and decorative applications.

Light source and optics

37 x 3W high-efficiency CREE RGB LEDs (13 red, 12 green, 12 blue)

Lumen: > 2800 lm

Lux @2m: 2800

Projection angle: 6°

Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps

Colour synthesis: RGB colour mixing (>16 million colours) for a limitless colour range

High efficiency optical design with tubular tracks to generate a tight BEAM effect

LED average life span: >50000 h

Dimmer/Shutter/Strobe

0-100% linear dimmer

4 different dimming available curves

Independent shutter and fading effects with adjustable speed

Strobe: Electronic, 1-20 flash per second

Electronics

User Interface: graphic LCD user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets

Master/Slave mode for stand-alone operations

Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface

Linear and “step-less” transition between DMX values

Flicker-free operations (400Hz)

1 DMX available configurations: 14channels

Unit reset: through control panel or via DMX

Cooling: forced air, protection against overheating

Structure and moving body

High resistance and flame retardant polymer case in black colour

Internal protection: IP33

Power cable included

Motion Angle: Pan = 540° Tilt = 270°

Pan/Tilt resolution: 8-bit or 16-bit:

Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°

Suspension and fixing: any possible working position through omega kit (included)

Power supply

Power unit: 100-240V 50/60Hz

Max power consumption: 160W

Weight and dimensions

Net Weight: 6,5 kg

Gross Weight: 8.5kg

Dimensions: 40x38x28cm

Trade Terms

EX-WORK/FACTORY, FOB Guangzhou

Terms of Payment

1) 100% T/T in advance for sample order

2) 50% deposit upon order confirmation, 50% balance payable before Goods packing for large order

Payment Method

T/T (Company Accounts & Personal Accounts are available), Western Union, MoneyGram, Escrow (order amount less than USD1500), Paypal (order amount less than USD1000).

Warranty

1 year repairing for free

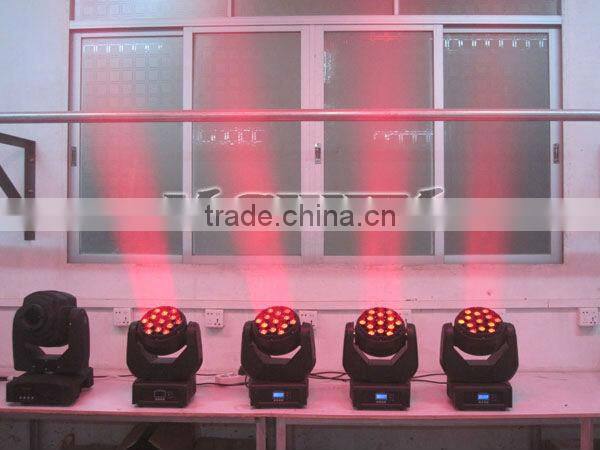

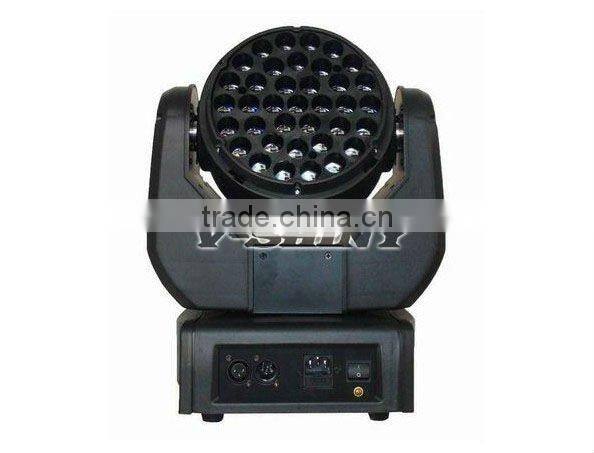

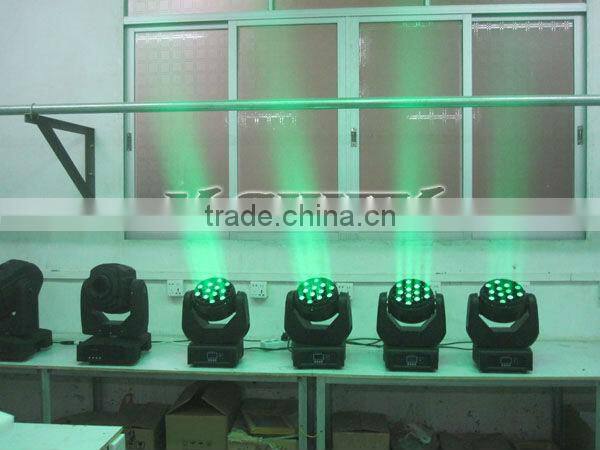

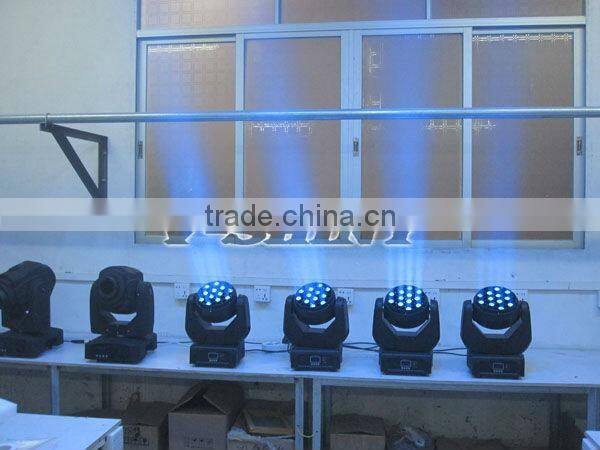

Goods Pictures are listed as below:
