Specifications



CH CODE

When “1” slide to ON position, it is controlled by NO.1 key on emitter;       When “2” slide to ON position, it is controlled by NO.2 key on emitter;       When “3” slide to ON position, it is controlled by NO.3 key on emitter;       When “4” slide to ON position, it is controlled by NO.4 key on emitter.

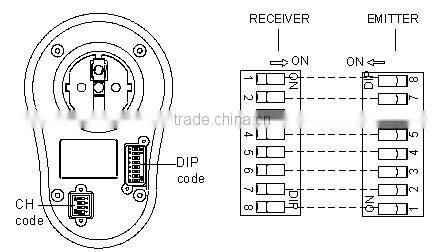

Its DIP coding correspond to DIP coding in emitter:         Their corresponding connection is 1n8, 2n7, 3n6, 4n5(like right following fig.)

1.Before using, open the battery cover of the emitter, fix battery into emitter according to the parameter;

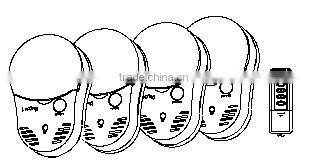

2.Plug in four receivers respectively, the LED on every receiver light and yellow;

3.Press the No.1 emitter key, the r receiver that “1” of CH code to ON position, and its LED turn red;

4. Press the No.2 emitter key, the receiver that “2” of CH code to ON position, and its LED turn red;

5. Press the No.3 emitter key, the receiver that “3” of CH code to ON position, and its LED turn red;

6.Press the No.4 emitter key, the receiver that “4” of CH code to ON position, and its LED turn red;

7.After receivers are on, press the emitter key again respectively, the corresponding receiver can shut off power, and the LED turn yellow espectively.

8.Of course, you can press the MANUAL button on receiver to turn on or off receiver.

9.If test is normal, button the battery cover of the emitter. Connect the receiver socket with load plug and then you can use it.

Please attention: the distance between the four receivers can not be too short, otherwise that will affect the remote control distance, the distance between receivers should beyond 1m.

ROBLEM AND SOLUTION

Press the emitter, the receiver hasn’t reaction:       ·

please check if the battery polarity is installed oppositely ;

if the battery accords with the parameter;       ·

if the battery energy vanish;       ·

If the indicator of the receiver light;       ·

if the indicator of the emitter shine.

The remote control distance is short.

if the distance between receivers is too short, which cause interfere each other;       ·

if the installation base of the receiver is metal;       ·

if the power energy of the emitter is enough.
