Help CenterExposure Machine
Related Products
Specifications
1.High quality of liquid green oil dual exposure with perfect efficiency2.Mass production of PCB
3.Plus elegant appearance

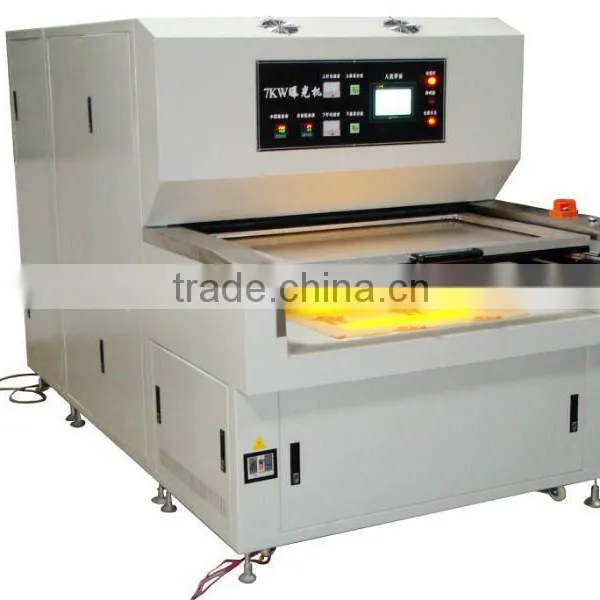

Exposure Machine
Features:
The exposure machine, using indirectly water-cooled ultrahigh-pressure halogen lamps as exposure light source, operated with reliable safety system and automation control systems, and LCD monitor and digital intelligent human-machine interface operation modes, can ensure to set energy control more accurately. Mainly used for liquid green oil dual exposure with perfect efficiency, plus elegant appearance and reasonable structure, so this exposure machine is mass production PCB manufacturer first-selected products.
Main technical parameter:
1 |
Power |
AC380V 3Φ 50HZ 54A 26KVA |
2 |
Illumination system |
7KW metal halide lamp × 2 pieces |
3 |
Effective exposure area |
MAX. 610L × 916W (18”× 24”× 2 pieces) |
4 |
Frame of exposure |
MYLAR (vacuum performance of film to glass) |
5 |
Water source of cooling |
Cooling tower of 10 tons,water flow of 120L/min (water flow of the connection of cooling system and the machine) |
6 |
Cooling method of lamps |
Air cooling for the lamp head, and indirect water cooling for the lamp |
7 |
Cooling method of the table of exposure |
Forced air cooling as the temperature control |
8 |
Energy control of exposure |
Integrator of UV energy with LCD display |
9 |
Supervisory system |
Self-diagnostic function and abnormal information display |
10 |
External dimension of the machine |
W 1420 × D 2800 × H 1700 mm+100 mm |
11 |
Weight |
1450 Kg |
12 |
Pneumatic supply |
Operating pressure: above 2kgf/ cm2 |
