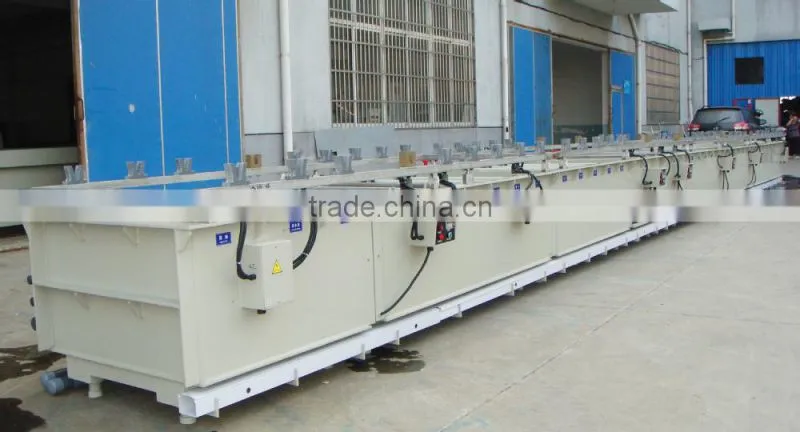

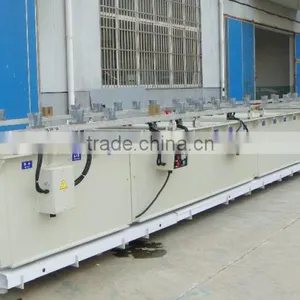

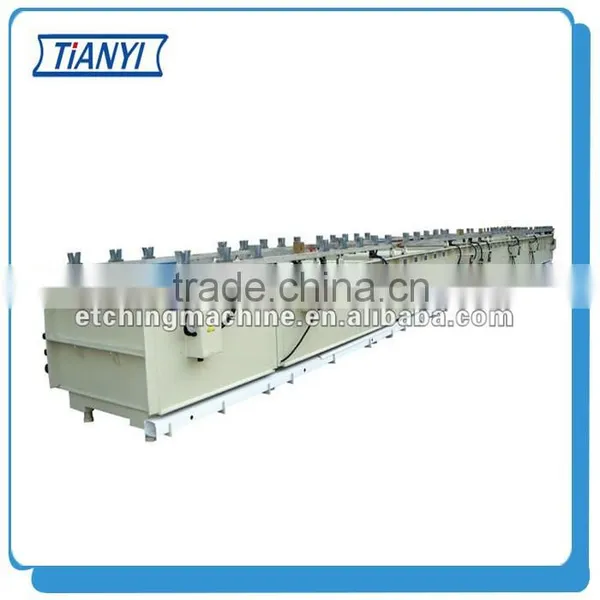

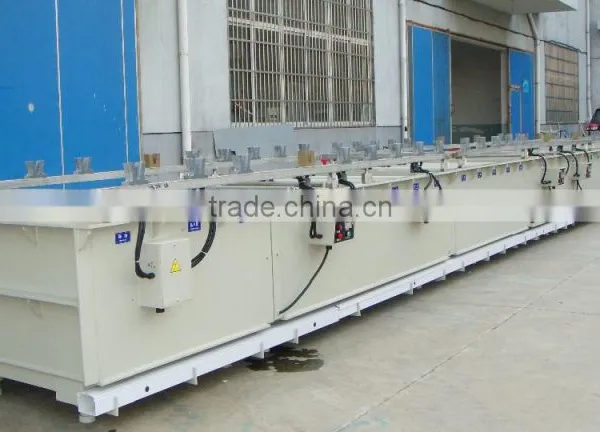

Metal Copper Plating machine Production Line
Process Flow
Ultrasonic oil removing → Hot water rinsing → Water washing → Oil removing → Hot water rinsing→ Water washing 1 → Water washing 2 → Micro
etching → Water washing → Activation → Water washing 1 → Water washing 2 → Water washing 3 →
Pure water washing → Nickel plating 1 → Nickel plating 2 → Recycle → Water washing 1 → Water washing 2 →
Water washing 3 → Gold plating → Recycle → Water washing 1 → Water washing 2 → Water washing 3 →
Gold plating → Recycle → Water washing 1 → Water washing 2 → Water washing 3 → Protection →
Water washing 1 → Water washing 2 → Hot water washing
Main technical parameter
Size of Machine |
L13580×W1800×H1980mm |
Production capacity |
1500-2000m2 |
Size of maximal board |
1000mm*280mm |
Volume of plating tank |
L1150×W300×H600mm |
Frequency of waving |
10 times /min |
Rectifier |
100A/12V |
Power voltage |
Three-Phase Four-Wire 380 V 50 HZ |
Main power |
55KW |
Pics
Finish opertion
Quality & Inspection
- Cooperated with good reputation suppliers.
- 100% check spare parts quality which produced from matching suppliers.
- QC checking each step from spare parts to production on the full of line.
Production for a series of etching,cleaning, electroplating equipment. At present,we have cooperated with iphone,asus,HP,HTC,Samsung,LG and other industry brand processing manufactures,and we have achieved good reputation.Warmly welcome friends at home and abroad to visit our company and negotiate business.
