Convenience 512ch Usb Led Light Dongle

Specifications

convenience 512ch usb led light dongle

Welcome to Guangzhou Kase Light, if you have any requirement, please chat with us directly or email us, we will reply you within 24 hours. Tks

 Please note that sample order is free shipping!!!!!

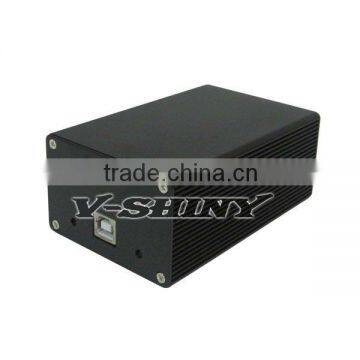

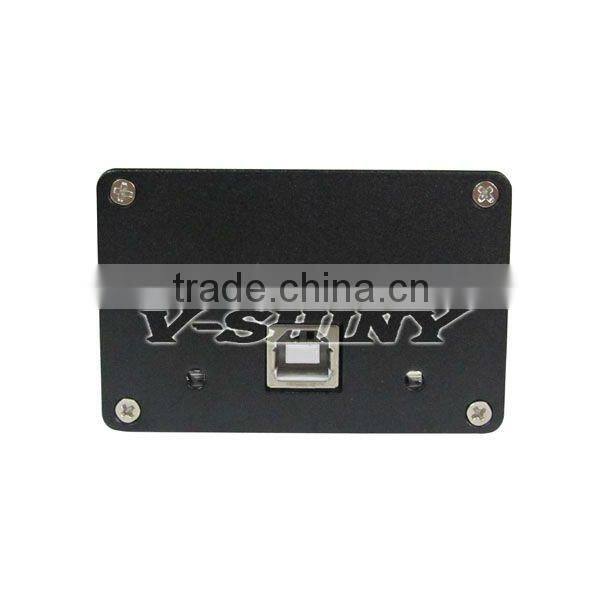

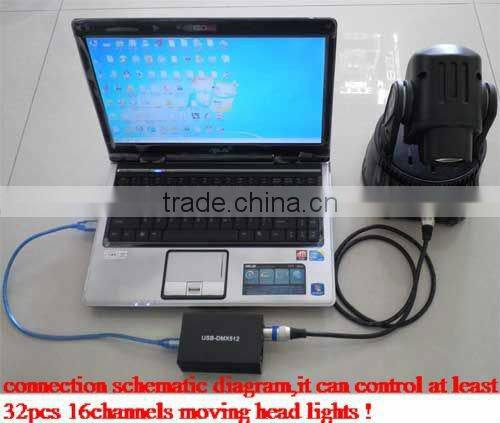

MartinDMX USB-DMX512 it's abbreviation name is M512 .it's a USB-DMX512 equipment which created by ourself ! It can through PC add M512 box to control any lights which have

DMX512 interface .for example : moving heads,scanners,lasers,led lights,fog machine and so on .

M512 have input function as the same time ,it can catch DMX512 signal in the computer ,

for example ;it can connect your real pearl 2008 or other simple controller to M512,let you controller support

3D simulate or VJ software , in other words ,it can show programming result and lights effect of you real

controller in 3D software in you computer .

You need not go to spot to program lights procedure,you can see

the effect in 3D software in your computer .Certainly ,in the project ,you can connect another graphoscope or

projector,for compare the effect of the spot and in graphoscope .

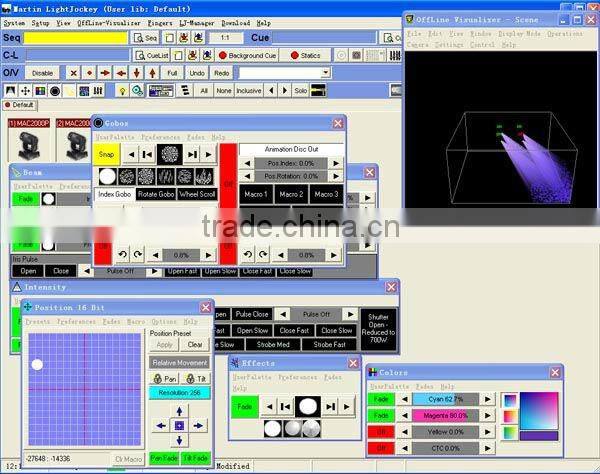

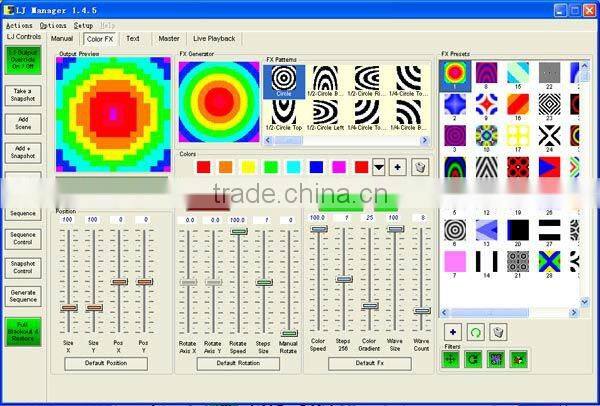

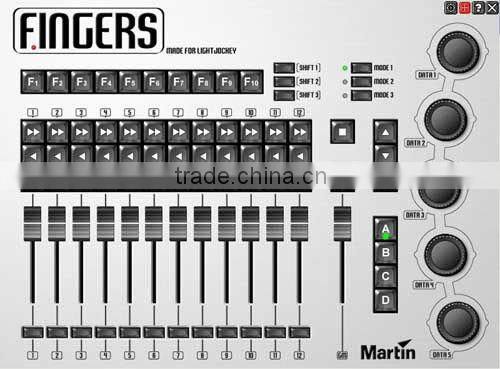

Under Windows XP system M512 can 100% compatible Martin Light jockey, you can use  Martin Light jockey

software+M512 hardware box directly ,so that you need not buy expensive USB hardware box from Martin company ,

that is the most important ,that is the main reason we created our M512 .

M512 can work with the following software as well  :

Summary:

1, Under XP system 100% compatible the value from $912-$1064 Martin Light jockey. At the same time ,under XP system , M512 can compatible with Das light .

2, Support windows XP /2000 /VISAT/Windows 7(included 64 system ), it support second development ,we provide input and output SDK ,VB,VC,C++ builder and Delphi sound code .

can make its own DMX512 control program in minutes,or can used for sand table display,lighting automatic control on exhibition,

or 3D control program.

3.It support ARTNET Lights wired and wireless network protocols , can be used as ArtNet Node, remote control,

 and provide ArtNet development kit for users to develop their own network control products, as far as I know,

at the moment ,there is no product which can to do this,all the Artnet procedures were programmed with

Windows API according to the protocol by ourselves , not use any 3rd party libraries and Art Net official library.

4,The most important is in our M512 hardware we add DC-DC insulate and photoelectricity insulate ,at the same time ,we add TVS and other protective action .

5.Built-in memory buffer, data transfer smoothly.

6.,we add the input funciton to the hardware ,it can support all the famous 3D software .

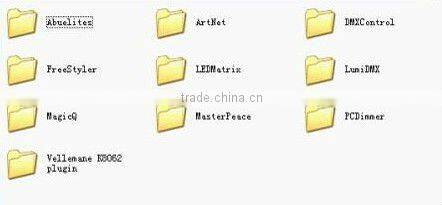

7,support all the software of the VS-M512 .(the software please reference to the above software picture ).

8.In the PC control software side, it's a key point as well ,we adopt the newest Martin Light jockey version, or  newest

Das light  version you can download it to the official web site and upgrade .

In other words ,our M512 is amount to $912-$1064 Martin Light jockey+ $456-$608 Sunlite SLMEV+otherr software and second development SDK etc. Summary as the following :

 M512 USB-DMX512 = Martin Lightjockey    +
                    Sunlite SLMEV(input) +
                    other 10 suits control software +
                    second development SDK(with sound code)

More information about Martin Light jockey please browse the official website :
/service/showpage.asp?id=4340&tit=Lightjockey+2+%28LEGACY%29+Software

Notice: because our M512 is simulate $912-$1064 Martin Light jockey ,so use Martin Light jockey software is the first choice ,

but please use and test it for your own needs,please do not commercial use ,

Otherwise violate the copyright has nothing to do with us, we do not offer Martin Light jockey software,

please download it to official web site to test .

Shipping Information:

Individual Packing (Paper Carton): 32.5*27.5*8cm     Gross Weight: 1.5kgs

Trade Terms:

EX-WORK/FACTORY, GUANGZHOU

Terms of Payment:

T/T, Western Union, Escrow, MoneyGram, Credit Card (these mothods all support the order that amount less than USD2000, if more than 2000, please pay by T/T, we will give you more discount).

Warranty:

Besides the 12 months warranty, if your goods have any problem, please send us pictures or video, we will check whether spareparts could be solove, if yes, we will send you the replacement and bear the shipping cost, if can not be soloved, we will give you discount on the next order.

Products Image:
