32 SIMs USB/RS232 GSM Modem Pool Automatically SIM Rotation Latest Design

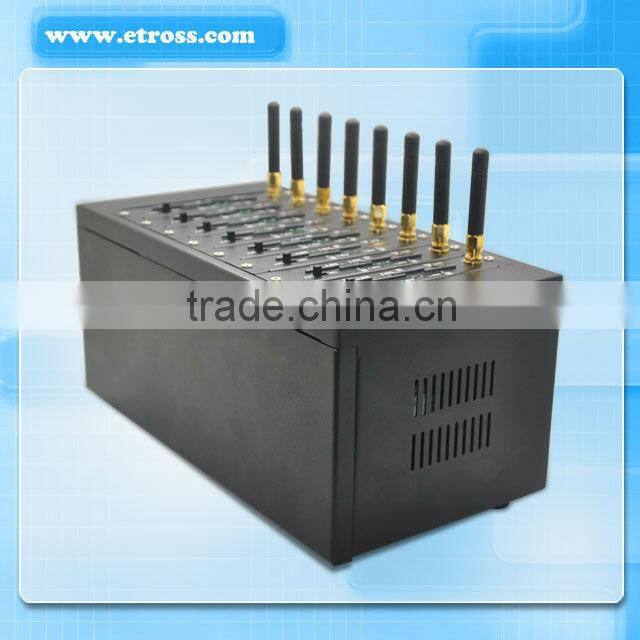

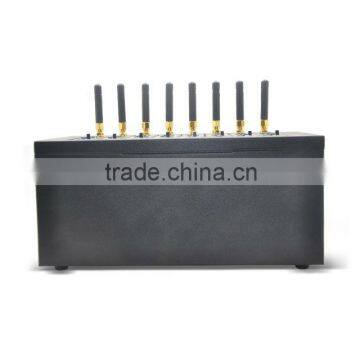

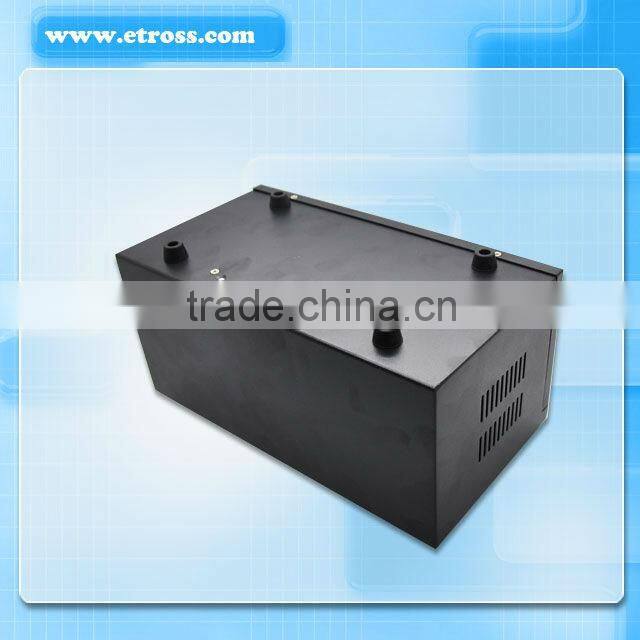

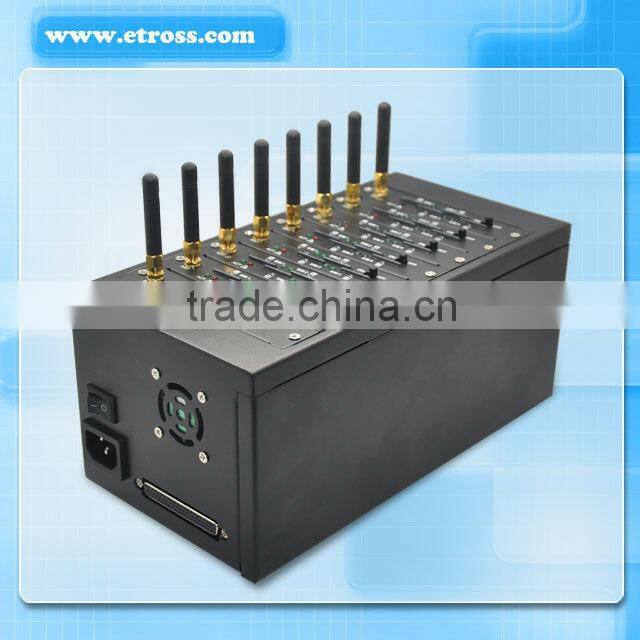

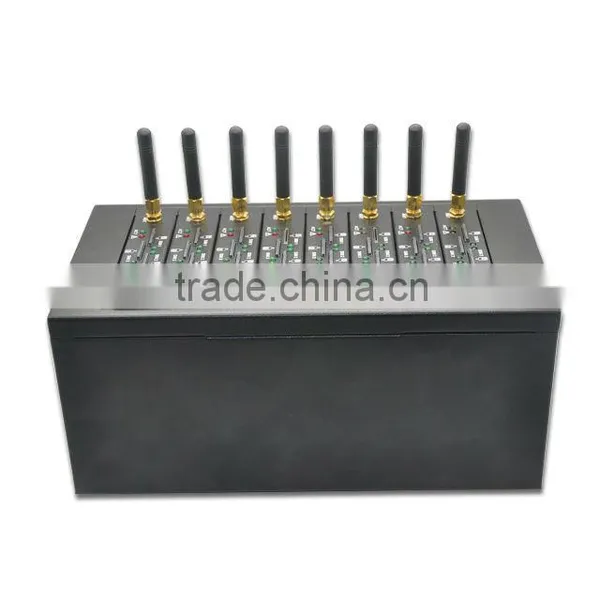

GSM Modem Pool 8 Ports 32Sims ETS-8132

Description:

GSM Modem Pool 8 Ports 32Sims , Model no.: ETS-8132 (it has 8 ports, each ports has 4 SIM card slot,

totally 8 ports 32SIMs,RS232 / USB type optional) is a newly developed GSM/GPRS Modem pool solution

which can automatically realize SIM rotation when do SMS sending, it can effectively lower the SIM block by carriers. And improve the SMS sending efficiency.

Can preset the SIM rotation rule through hyper terminal of PC by AT command, then the device will automatically do

SIM rotation according to the rule.

Specifications:

1, GSM Modem Pool 8 ports 32 SIMs slot;

2, GSM 900/1800/850/1900Mhz Quad band (Quectel M35 module employed);

3, Automatically SIM rotation;

4, IMEI Changeable through Hyper terminal of PC;

5, RS232 / USB optional

6, AT Command

Main Features:

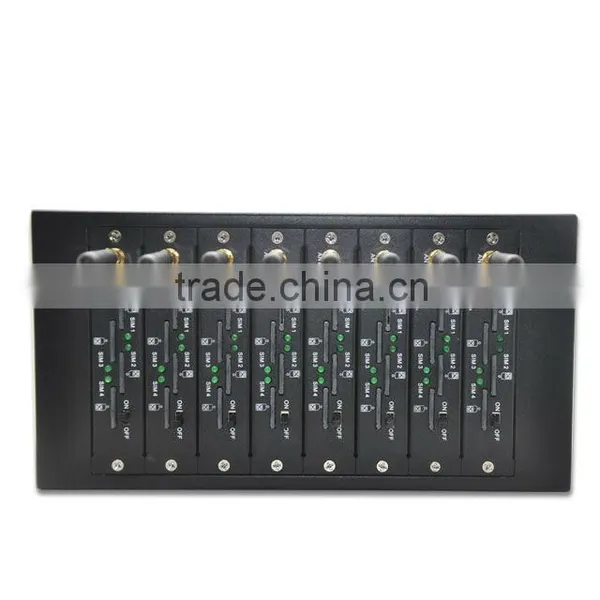

1,Can Support 8 channels simultaneously;

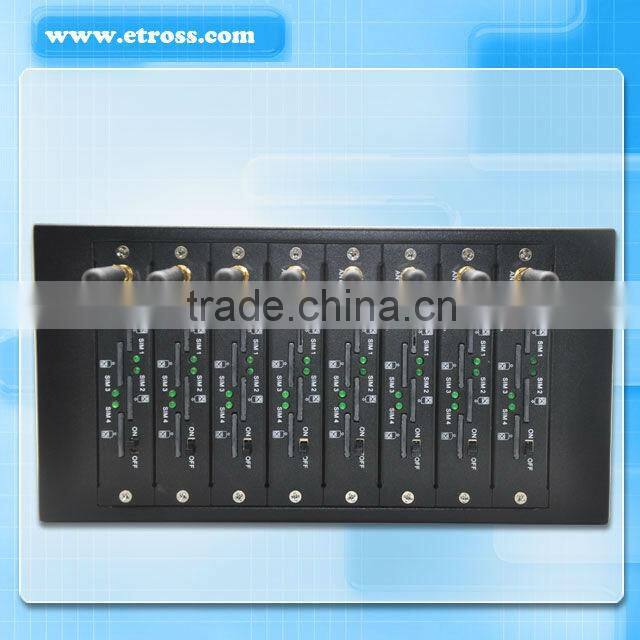

2,Can insert 32 SIM cards(each port 4 SIM cards)

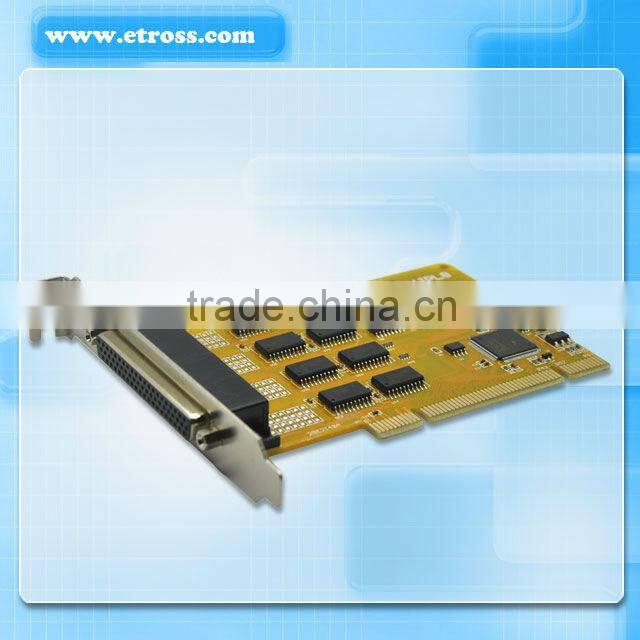

3,Connect with the Computer through RS232 Data cable and PCI card pre-Installed in PCI slot in

     PC (For RS232 Type) / USB line for USB type.

4,Each channel with separate power switch,

5,Each channel can be demolished separately.

6,Comply with GSM Phase 2 standard.

7,RS232/USB Interface (Optional)

8,Can send and receive SMS in bulk

9, Industrial Chassis, Elegant Appearance design.

10, support Windows XP, Windows7, Linux, Unix OS etc.

Basic Features

1,Asynchronous, transparent or non-transparent, to a maximum 14400 bits/s,

2,Buadrate: 115200 bits/s

3,Automatic baud rate: from 2400 to 19200 bits/s

4,GPRS compatible

5,SMA antenna interface

6,SIM card Outlet

7,built-in Adapter: 12V 3A

8, RS-232 PCI card supported / USB ports support

9, AT command control ( GSM 07.07 and 07.05)

Hardware Features:

Meet the ETSI GSM 2 + standards

Class 4 ( 2W @ 900 MHz) Class 5 ( 1W@1800 MHz)
Operating Temperature: -20 ° C - + 55 ° C

Storage temperature: -25 ° C - + 70 ° C

Device Size: standard GSM Modem Pool chassis

Weight: 3Kg per unit

Application:

 Large shopping malls, supermarkets

 Professional market, large wholesalers

 Large hotels, large-scale entertainment

 Large agencies

 Transport, logistics industry

 Large enterprises, and institutions

 Large hospitals, large bookstore

 Newspaper, television and radio stations

 Oil Company ( other chain business company)

 Government agencies or large township

Installation:

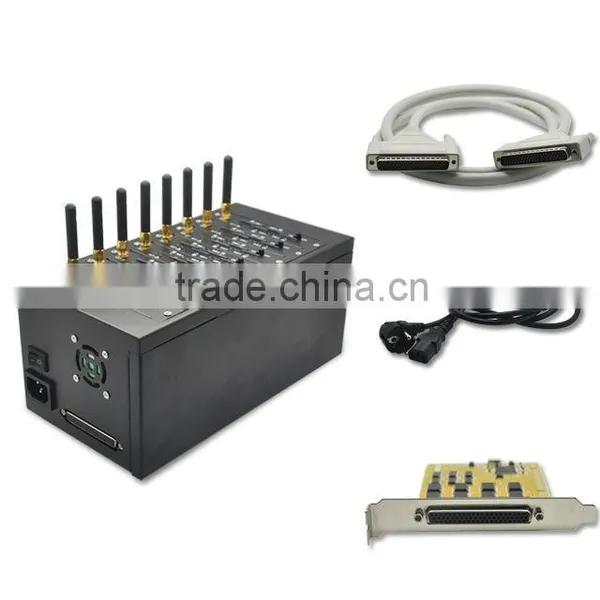

For RS232 type one:

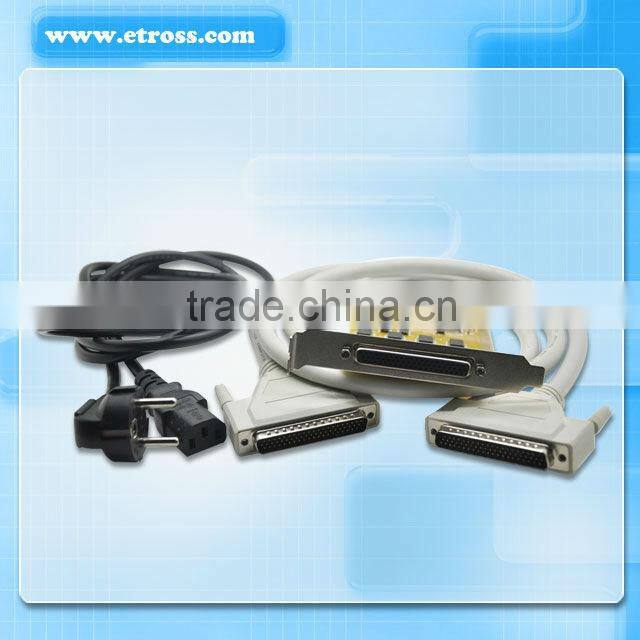

Step 1: insert the PCI card into the PC PCI slot, And connect the device through Data cable.

Step 2: Install the driver of PCI card .

Step 3: Insert SIM card into the SIM card slot, connect antenna, power on the device.

Setp 4: Install the SMS caster (Or other SMS software), open the software then it is ready to send SMS now.

Package:
Product dimension: L245x W130 x H110mm
Gift box dimension: L290x W170x H160mm
G. W: 3.5kg
