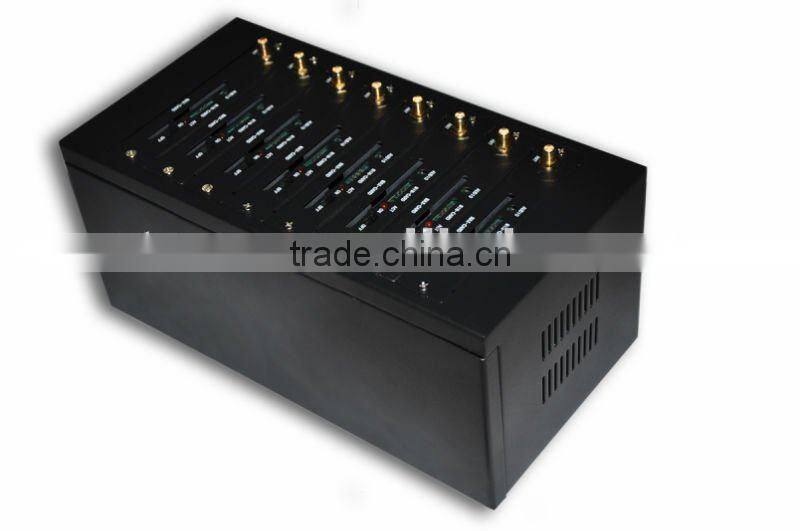

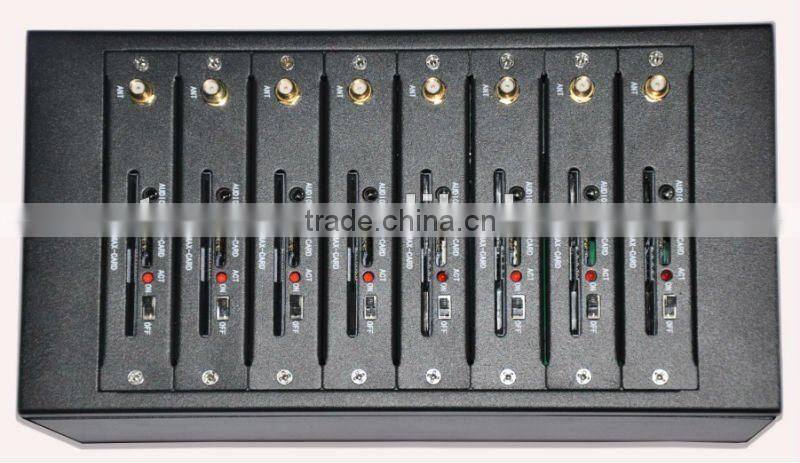

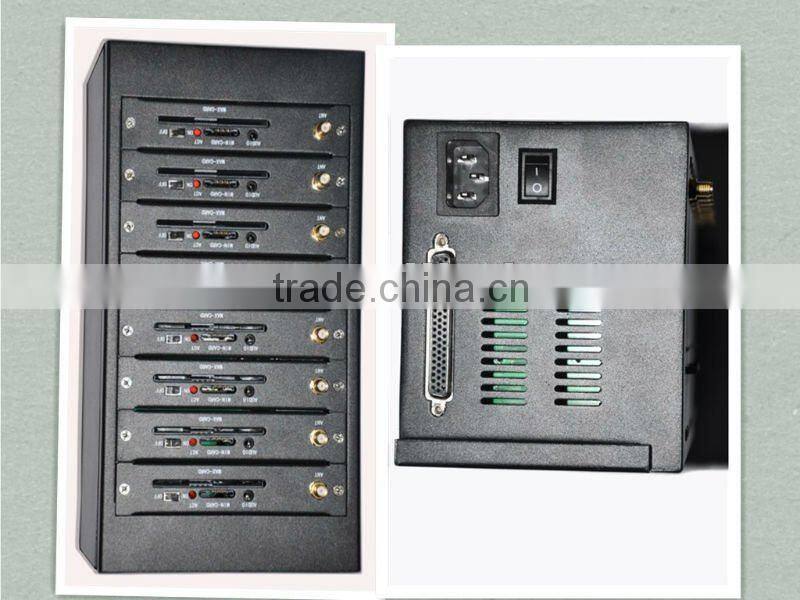

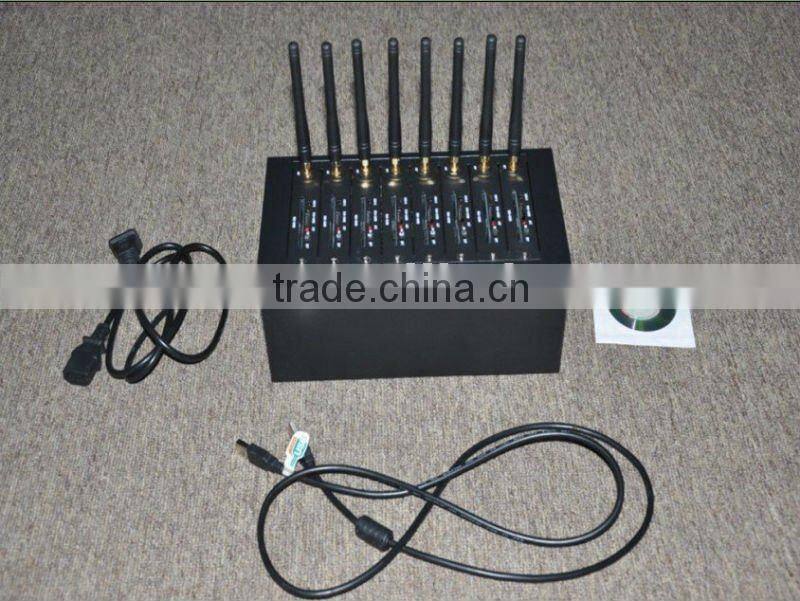

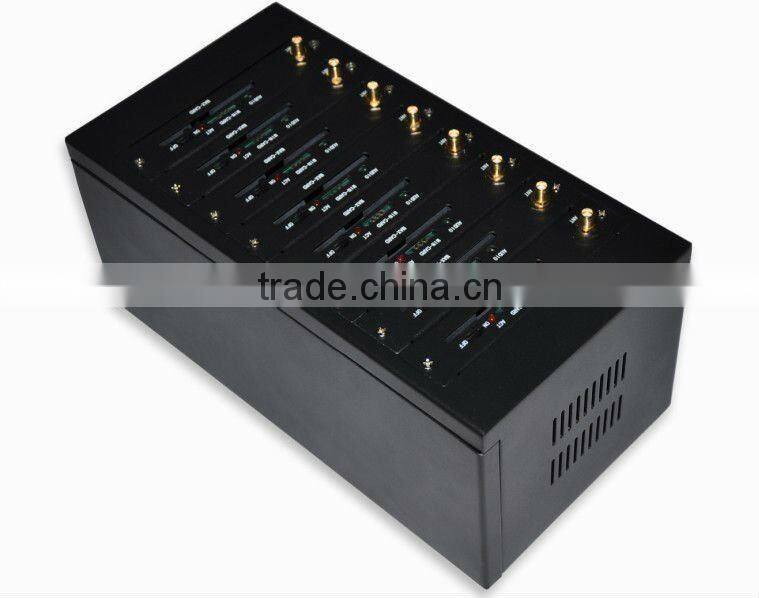

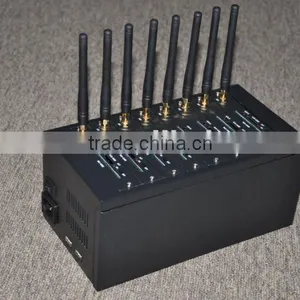

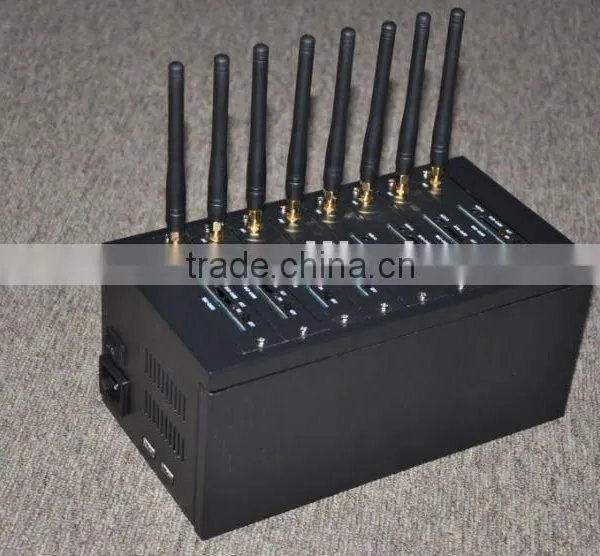

Muti-ports USB GSM GORS Modem Pool Employ Q2403A Module

Specifications

General Description

Sms cat pool(GSM/SMS Modem Pool) is the number of industrial mobile module into a

Chassis, power supply to achieve a united , uniform date cabling, unified external

communications interfaces, multi-channel, high-volume, send and receive text messages,

Generally have serial ports, USB ports and RS232 port and other interfaces. The benefits of

using SMS is that the cat pool can send and receive SMS bulk density.

Available:

GSM 900/1800Mhz dual band, employing Wave COM Q203A(USB or RS 232 Port)

GSM850/900/1800/1900MHz Quad band, employing Wave COM 5819(USB or RS 232 Port)

specification:
1.Supports standard GSM communication modes
2.DC5-35V Low power consumption
3.Supports 8 SIM cards (3V-5V)
4.Has 8 SMA antenna interfaces
5.Use French WAVECOM or Germany SIEMENS Module
6.Slide-on SIM storage
7.SMS Transmission Rate:4000~6000 pcs/hour(optional)
8.Wireless Modem Pool can realize the communication with computer via PCCOM or Emulational Programs such as Super Terminal
9.Supports GSM/GPRS
10.Frequency: G850/900/1800/1900MHz
11. Complies with ETSI GSM Phase 2+ standard
12. Class 4 (2W @ 900 MHz)
Class 5 (1W @1800/1900MHz)
13. Input Voltage:5V-24V
14. Working Temperature -20 degree ~ +55 degree Storage Temperature: -25 degree ~ +70 degree
15.weight:2000g

Functions:
1.can send SMS to large number of customers at same time
2.Support SMS receive and reply automatically
the record of SMS sending and receiving automatically
4.Easy to install and use
5.can compatible with many cards
6.can control SIM Card to send SMS by your requirements

Advantages:
1. Industrial design, can restart automatically when no signal or crash
2. Independent switch control for every port
3. Every port can demount separately , easy to maintain
4. 8 ports data lines integrated, convenient and beautiful
5. Voice frequency input and output independently for each port, supports access to microphone and sound
