Realan LR-E450Q Newest Mini Itx Case Mini pc Host

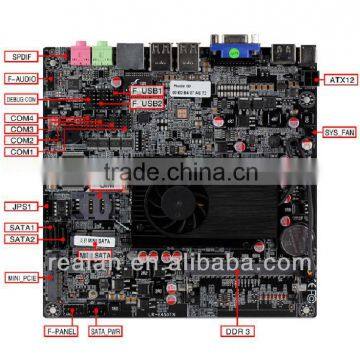

Motherboard Specification

Model

• LR-E450TN

Graphic Display

• AMD HD6320

CPU

• AMD-T56N processor(1.65G, 1066MHzexternal frequency, 1M second level cache, 13W consumption)

Expansion Slot

• 1*SIM

MINI_PCIE

• 2

Chipset

• I/O chipset A55E

Serial ATA

• 2*SATA

Memory

• 1*SO-DIMM DDR3 1333MHz

LAN

• 1* Realtek 8111E,10/100/1000M ethernet controller

• Support 8GB memory

Sound Chip

• ALC662   2/4/5.1channel output

Front I/O Interface

• 2 sets of USB pin, for 4*USB2.0;

• 2 fan connectors, for CPU fan and system fan;

• 1* Audio pin;

• 4*COM pin;

• 1* 12PIN VGA;

• 1 * 7PIN PS2;

• 1*LVDS pin (optional);

• 1*HDMI pin (optional)

Rear I/O Interface

• 4* USB2.0

• 1* VGA

• 1* 12V DC input

• 1* HDMI

• 1* LAN

• 1* audio

System Monitoring and Management

• Wake On LAN
• System power management
• Thermal & voltage management
• Fan speed monitoring

BIOS

• 4/8Mbit flash memory

Working Environment Humidity

0% ~ 95% (relative humidity, non-condensing)

Type

• MINI-ITX (4*PCB)
• 170mm x 170mm x 20mm

O/S

Windows XP, Windows 2000,Linux, Win CE, Windows 7, Windows 8

Operating Temperature

0°C ~ 50°C

Special Performance

without
