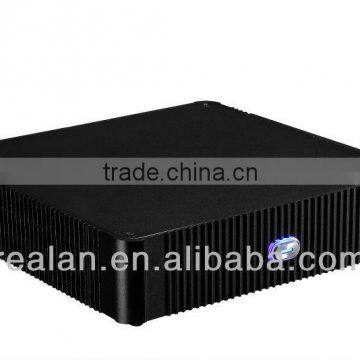

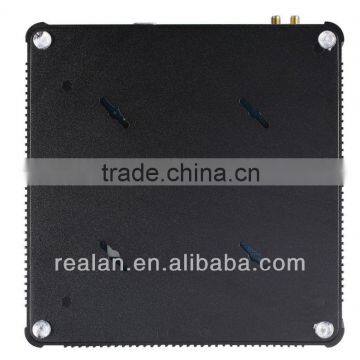

Realan LR-1037UN Mini PC Host with double wifi antenna

Motherboard Specification

Model

LR-C1037TN

Graphic Display

HD Graphics 2000

CPU

Intel C1037U dual-core 1.8GHz

Expansion Slot

1*SIM

MINI_PCIE

2

Chipset

Intel NM70

Serial ATA

2*SATA

Memory

1*SO-DIMM DDR3 1333MHz

LAN

1* Realtek 8111E, 10/100/1000M ethernet controller

Support 4GB memory

Sound Chip

ALC662 2/4/5.1channel output

Front I/O Interface

2 sets of USB pin, for 4*USB2.0;

2 fan connectors, for CPU fan and system fan;

1* Audio pin;

6*COM pin;

1* 12PIN VGA;

1* printer pin;

1 * PS2 pin;

1*LVDS pin (optional);

1*6PIN INVERT (optional)

Rear I/O Interface

2* USB2.0

2* USB3.0

1* VGA

1* DC input

1* HDMI

1* LAN

1* audio

Monitoring and Management

Wake On LAN
System power management
Thermal & voltage management
Fan speed monitoring

BIOS

AMIBIOS
4/8Mbit flash memory

Working Environment Humidity

0% ~ 95% (relative humidity, non-condensing)

Type

MINI-ITX (6*PCB)

170mm x 170mm

O/S

Windows XP, Windows 2000, Linux, Win CE, Windows 7, Windows 8

Operating Temperature

0°C ~50°C

Special Performance

without
