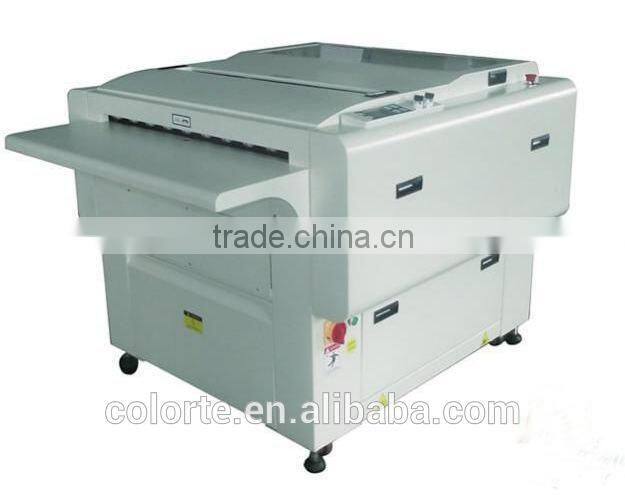

Help CenterSuper Quality CTP Machine CTP Processor
Related Products
-
Ctp Plate ProcessorNegotiableMOQ: 1 Set -
China Plates Manufacturers Ctp ProcessorNegotiableMOQ: 1 Set
-
China Computer to Plate Equipment Ctp ProcessorNegotiableMOQ: 1 Set
-
China Printing Machine Ctp ProcessorNegotiableMOQ: 1 Set
-
China Factory Cheap Price Old Processor for SaleUS$ 1 - 5,000MOQ: 1 Set
Model |
SL—88H |
SL—120H |
SL—140H |
||
Material |
Thermal CTP plate |
||||
Capacity(cm/min) |
20—150(7.87—47.2") |
||||
Plate width (mm) |
850mm(32") |
1150mm(45") |
1350mm(53") |
||
Min. Plate length(mm) |
450(17.7") |
||||
Plate thickness(mm) |
0.15—0.4(0.006—0.016") |
||||
Tank content, developer(L) |
38 |
56 |
68 |
||
Tank content, wash(L) |
13.5 |
18 |
20 |
||
Adjustable temperature, dev(℃) |
0—40(104℉)0 to 40℃ adjustable (32—104℉) |
||||
Adjustable temperature, dry(℃) |
|
||||
Water consumption, max(L/min) |
8 |
10.5 |
12 |
||
Diameter of wash brush (mm) |
50(1.97") |
||||
Rotary speed of wash brush |
80 |
||||
Filter(um) |
75 |
||||
Water supply |
Tap water (min. pressure 1 bar) |
||||
Gumming |
Roller pressing gumming |
||||
Diameter of roller |
60mm(2.36") |
||||
Dev. replenishment |
0—1 |
||||
Dev. heating-up rate |
0.5 |
||||
Horizontal adjustment |
Adjustable |
||||
Power supply |
220V 1φ 50—60Hz 30A |
||||
Power consumption (kw/h) |
3.5 |
4 |
4.5 |
||
Voltage fluctuation |
±10% |
||||
Gross weight(kg) |
500 |
650 |
780 |
||
Net weight(kg) |
420 |
580 |
650 |
||
Mechanic size(mm) |
1260*1520*1040 1260*2600*1040 |
1525*1520*1040 1525*3020*1040 |
1850*1555*040 1850*3270*1040 |
||
Packing size(mm) |
1360*1620*1250 |
1625*1620*1250 |
1950*1655*1250 |
||
Optional configuration :plate stack .water filtration system | |||||
Delivery:
1. CTP machine :30 days
2. CTP plates:10-25 days
After sales service:
1)2 year warranty for the machine
2)Provide free replacement of accessories
3)Provide free technical training and oversea installation.
