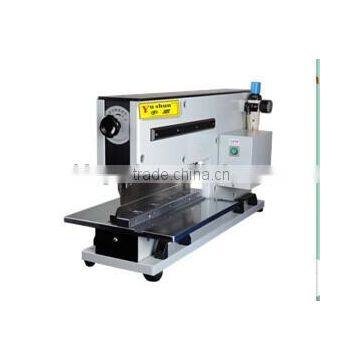

YSVC-450- V cutting machine :
1.Nice for cutting v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2.Separate rigid and thick board fluently.
3.Use pneumatic-driven and electromagnetic valve to operate.
V cutting machine specifications:
| Model | YSVC-450 |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB cutting length | unlimted |
| PCB cutting thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB cutting speed | due to operator skilled level |
| PCB cutting machine size | 900*760*750 |
| PCB cutting machine weight | 475kg |
Features:
1.New style rigid machine structure design,cut any length rigid and thick metal board more safely and easily.
2.Cut long boards directly,without turning PCB direction.
3.Cutting process without vibrations due to pneumatic drive unit.
4.Cutting PCB without bending and tension stress.
5.PCB control operation is that operator stamps the foot pedal to cut PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.
V cutting machine Detailed Product Description:
1.PCB Protection
2.Calibration Blade Setting
3.All Speed Control By Human
4.More Accurating
