FZSH series Intensive Dampener used in flour making process

Specifications

1. Excellent Moisture Addition Performance
2. Low Maintenance Requirement
3. Wide Application



2014 New design low price hebei pingle maize starch

production plant

Product Description

1. Display:





Intake Section — Silo— First Cleaning Section—Conditioning Silo

—Second Cleaning Section— Milling Section— Packing Section





2. Features of hebei pingle maize starch production plant :



1. Excellent Moisture Addition Performance
2. Low Maintenance Requirement
3. Wide Application







3. Pictures for client reference:







4.Specifications:

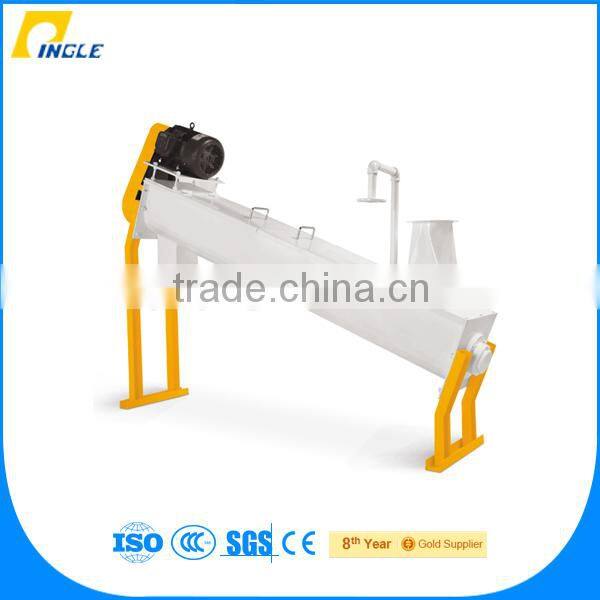

 Intensive Dampener

The FZSH series intensive dampener is a frequently used device in flour mills, and it is adopted to

guarantee that the moisture content of wheat meets the requirements of following procedures. As a

continuous and

highly efficient machine, this product is designed to add exact amount of water into the wheat, and

then the water is uniformly distributed with the help of a screw conveyor.

Features
1. Excellent Moisture Addition Performance
During work, wheat moves into the chamber through the feeding pipe, and simultaneously, water flows into

the spray pipe via pipelines. Then, the spray pipe will spray water to the wheat inside the chamber.

For the screw conveyor, its screw blades are arranged in a helical manner on the shaft, and some of the materials will move forward when the blades are stirring. However, the chamber is fixed with a tilting angle.

So, as a result of the gravity, some materials will drop down and then mixed with the forward-moving wheat

to realize full contact between wheat kernels. With the gentle dampening process, the water is

homogeneously distributed, and the moisture addition rate could reach up to 4% in a single pass.

2. Low Maintenance Requirement
The screw blades of our intensive dampener are manufactured by wear-resisting steel plates, so they

are also resistant to wear and tear.

Technical Parameters

Model	FZSH25-190	FZSH25-240	FZSH40-200	FZSH40-240
Throughput (t/h)	10~15	10~15	25~30	25~30
Max. moisture addition rate (%)	4	4	4	4
Kernel breakage rate (%)	<0.2	<0.2	<0.2	<0.2
Dampening accuracy (%)	≤±0.5	≤±0.5	≤±0.5	≤±0.5
Chamber diameter (mm)	250	250	400	400
Chamber length (mm)	1900	2440	2000	2400
Tilting angle of chamber (°)	20±5	20±5	20±5	20±5
Rotating speed (r/min)	300	300	300	300
Power (kW)	2.2	2.2	4	4
Overall dimensions (L×W×H, mm)	2075×440 ×1540	2580×440 ×1892	2184×560 ×1800	2582×560 ×1903
Machine weight (kg)	300	350	400	487

5.Application:



This flour  milling plant fits for the production of tailored flour and all-purpose flour.The finished flour is  usually

used to produce bread,biscuit,spaghetti,instant noodle,etc.Owing to these,this product has been

successfully

exported to different countries in the Middle East,North Africa and South America.
