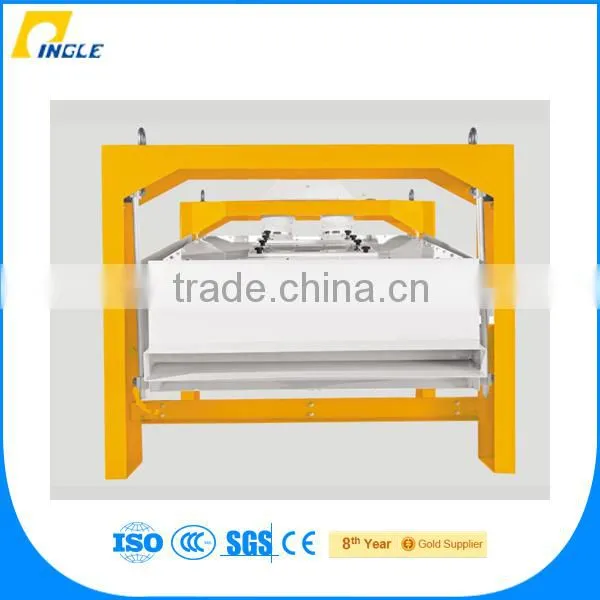

Help CenterGood Quality TQLM125 Rotary Cleaner For Wheat/Corn
Related Products
-
Good Quality Wheat Washer FXMS90*150 With PriceUS$ 1 - 50,000MOQ: 1 Set -
Wheat Flour MillUS$ 3,000 - 1,000,000MOQ: 1 Set
-
Hot Sales High Efficient Impact Detacher Using in Flour Milling Processing LineUS$ 500 - 20,000MOQ: 1 Set
-
Hot Sale ,high Efficiency Best Quality FSFG Series Double Bins PlansifterUS$ 500 - 30,000MOQ: 1 Set
-
Hot Sale FSFG Series Double Bins Square Sieve PlansifterUS$ 500 - 30,000MOQ: 1 Set
Specifications
1. Sturdy Construction2. Convenient Maintenance
3. Reasonable Design
4. Low Noise
Product Description
1. Display:

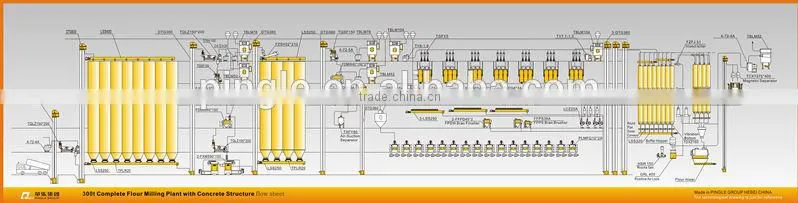

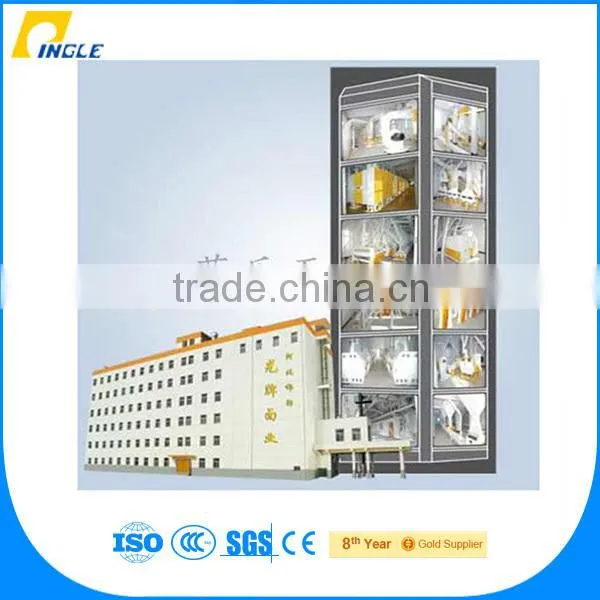

Intake Section — Silo— First Cleaning Section—Conditioning Silo
—Second Cleaning Section— Milling Section— Packing Section
2. Features of hebei pingle maize starch production plant :
1) High efficiency cleaning equipment, including aspiration seperator, vibro sparator,destoner,
dempener,disc cylinder selector.
2)Advanced milling equipment, including pneumatic control roller mill, electric control roller mill,
square plansifter, purifier.
3) High precision packing machine from 5kg to 50kg.

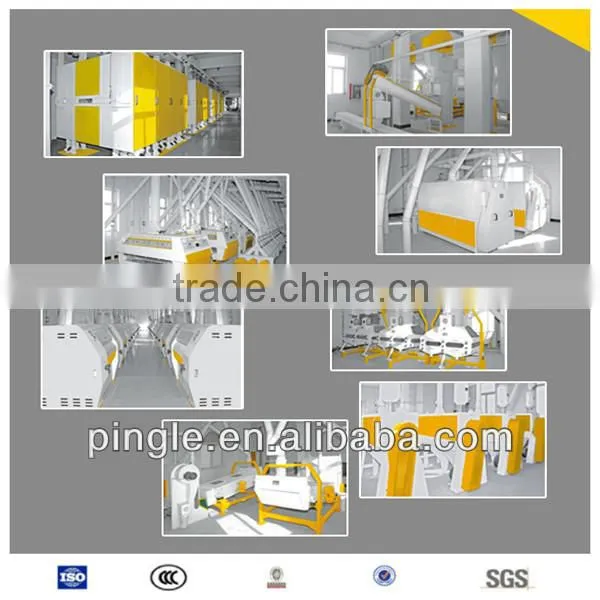

3. Pictures for client reference:
4.Specifications:

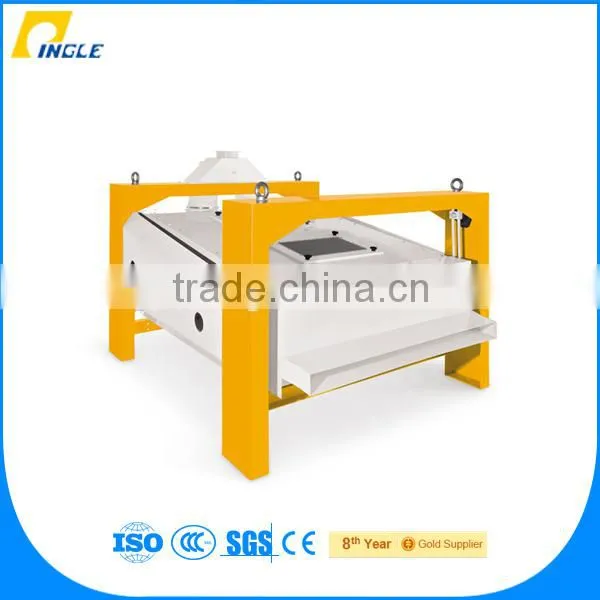

Rotary Separator
Functions
The TQLM series rotary separator is designed to remove both coarse and fine impurities from wheat based on their differences in size. For medium-quality grain, the separation rate varies depending on the impurity type, and the detailed values are listed below:
1. Coarse impurities: ≥80%
2. Fine impurities: ≥60%
3. Light impurities (with aspiration channel): ≥60%
4. Mistakenly separated plump grain: ≤1%
The screen frame of this rotary separator is manufactured by bending steel plates first, and then the steel plates are connected by bolts. There are two layers of drawer type screens within the frame, and the screens are divided into front and back parts which are pushed in or drawn out from the inlet end. On the other hand, the eccentric clamping mechanism ensures that there won't be grains or impurities trapped between the screen and the frame.
2. Good Cleaning Result
The screen is constructed by thin steel sheet, and there are many cross-arranged perforated holes to guarantee the overall performance. The screens are cleaned by medium-hardness rubber balls, and the openings are not likely to be blocked.
3. Low Noise
The inertial vibration mechanism is adopted for transmission, and vibration dampers are set at the front and back sides of the bottom of the screen. So, this rotary separator keeps steady when it starts or stops, thus reducing the noise level.
Technical Parameters
| Model | Throughput (t/h) | Power (kW) | Overall dimensions (L×W×H, mm) |
| TQLM63 | 3.5 | 0.55 | 1640×1040×1195 |
| TQLM80 | 4-6 | 0.75 | 2060×1150×1322 |
| TQLM100 | 6-9 | 0.75 | 2060×1370×1322 |
| TQLM125 | 7.5-10 | 1.1 | 2060×1600×1322 |
| TQLM160 | 11-16 | 1.1 | 2146×2042×1395 |

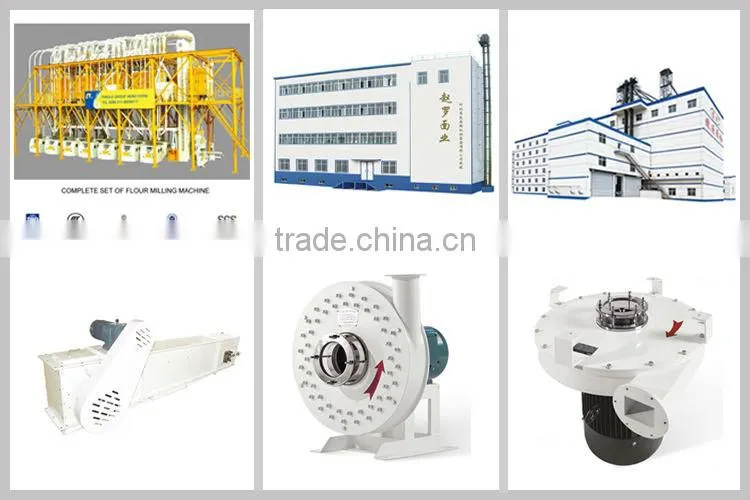

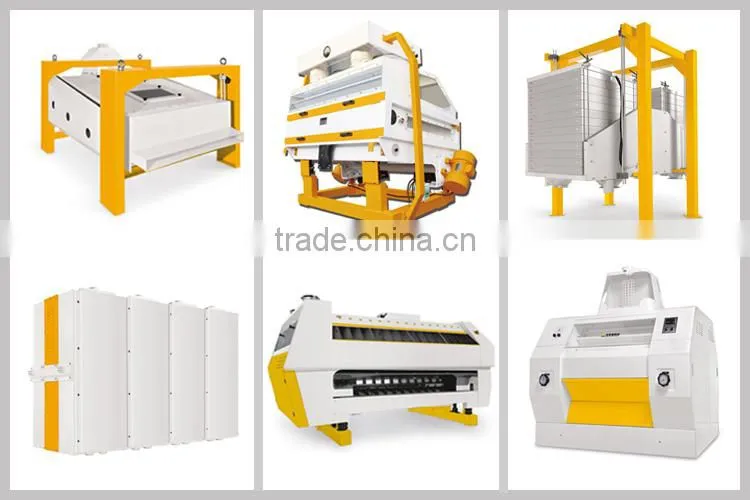

5.More products for you to choose:
Company Information
1.About us
Professional manufacturer specialized in grain processing project manufacturing
and installation with more than 20 years experience.Main products includes wheat
flour milling machine and maize milling machine. Our products have been exported
to 32 countries and regions such as Egypt, Ethiopia, India, Iran, Vietnam, Brazil etc.
The international Trade Division sets up sales dep., technical engineer dep., after sales
service dep.and documentation and logistical dep., which can manage engineer designing,
installation and service with professional staff.
2.Why chooes us
---Advanced equipments,good quality
---Professional skills,all-related services
---High quality and efficiency technology
---Complete production line,quick delivery
---20 years experience in flour mill industry
---Best solution for wheat and maize processing syste
---The biggest flour mill machine manufacturer and exporter in China
---Exporting to more than 40 countries with a presence world wide

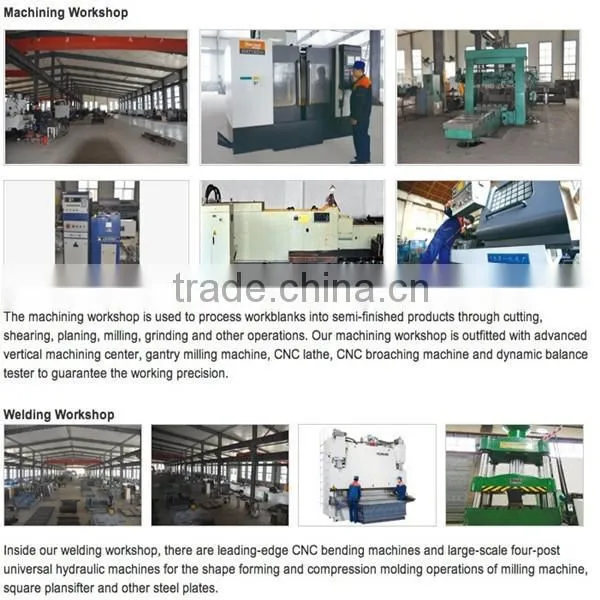

3.Factory Tour
4.Participation in exhibitions
5.Our Market
6.Certification
