Gam30 v Cut Pcb Separator -YSVC-3

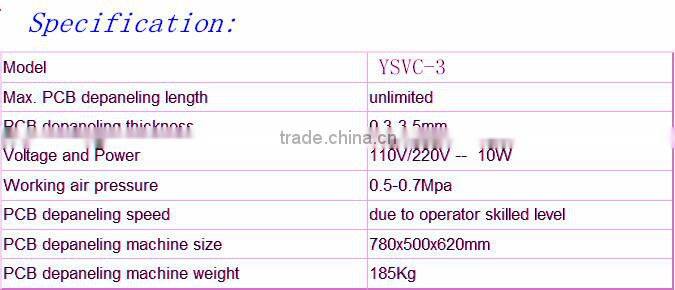

 YSVC-3     gam30 v cut pcb separator Specification:
Model: YSVC-3
The Longest Minimize: unlimited
Size: 780mmx500mmx620mm
Minimize thickness: 0.3-3.5mm
Machine Weight: 185Kg

1.Cut any length metal board  more safety and easily.
2.Separates long boards directly,without turn direction .
3.Separates boards up to 2.0mm  thick  Metal Board
4.Shears boards safely with parts as close as 1 mm to the
  score line,including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the
  knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives

    gam30 v cut pcb separator machine :

1.Max. PCB depaneling length is unlimted
2.Depaneling PCB without bending and tension stress
3.Safety use, easy operation
4.Depaneling process without vibrations

       gam30 v cut pcb separator features:

1.The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.
3.Depaneling process without vibrations
4.PCB depaneling control method is by pneumatic-driven and electromagnetic valve
5.PCB control operation is that operator stamps the foot pedal to depanel PCB
6.Highest components near the v groove of PCB can be up to 50mm
7.Gap for insertion of PCB can be easy to adjust

Competitive Advantage:
- Payment : T/T
- Delivery : within 7 days after receipt the payment.
- Origin : suzhou City, jiang su SHeng, China
- Minimum Order : 1 set
- Packaging : seaworthy plywood case,safe, no need to fumigated
- Inspection : inside
- Samples : Not Avaliable
- Remarks : especially for depaneling aluminium PCB,LED strip
