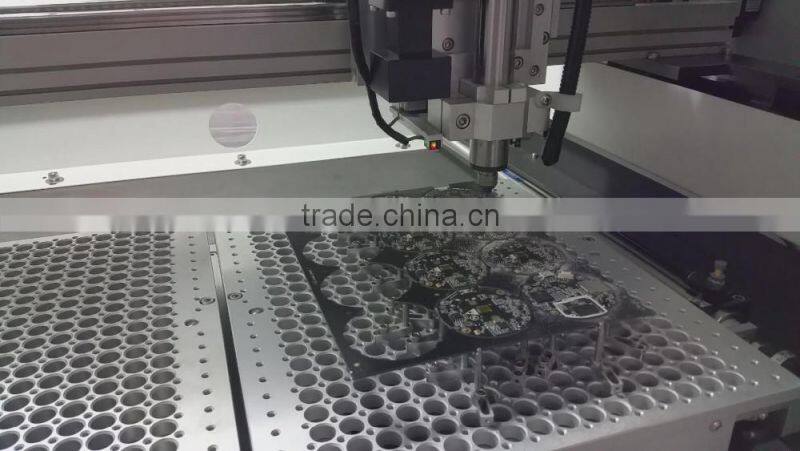

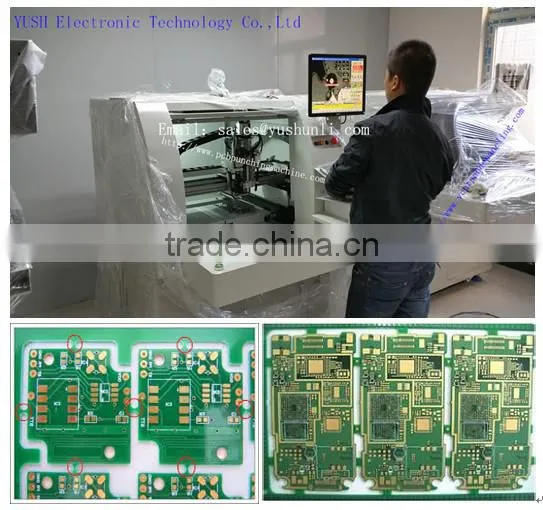

Automatic Pcb Separator Machine Manufacturer in China -YSVC-650

Automatic Pcb Separator Machine Manufacturer in China -YSVC-650 thumbnail-1
Automatic Pcb Separator Machine Manufacturer in China -YSVC-650 photo-1
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YUSH
Model Number:
YSVC-650
Contact Supplier Request Quote Chat Now
Suzhou Yushunli Electronic Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
by express by air by sea fowarder opionted
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YUSH
Model Number YSVC-650



CNC PCB Router

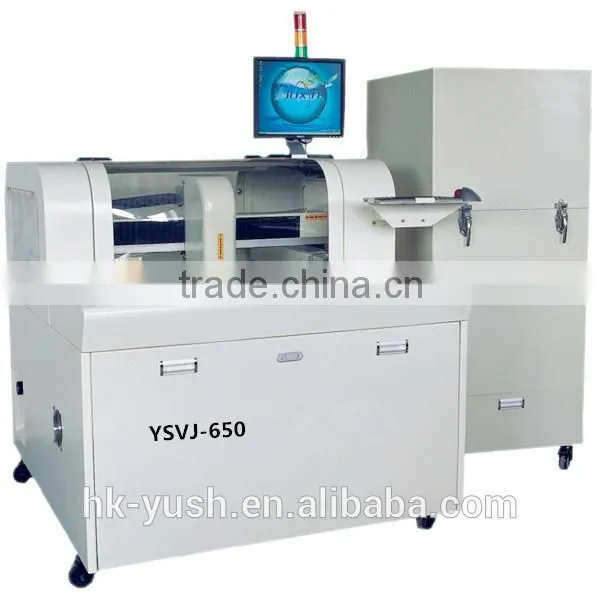

CNC PCB router , PCB board routing machine YSVJ-650



MLF-F01 Performance Parameters



Overall



Dimensions(W*D*H)

1220mm*1450mm*1420mm

Weight

550KG

Height offset

60~110mm

Manipulator



Motor type

JiaBao series

Positioning repeatability

0.001mm

Axis working area(max)

680mm*360mm*50mm

Work station



PCB fixation

standard,specialization

PCB loading/unloading

manual

PCB size (max)

322mm*322mm

PCB thick (max)

5mm

Fixturing



Rigidity fixturing

standard

Fixturing fixation

machinery

Spindle Motor



Power

400W

Spindle

50000rpm/min

Protect

                                                          self/wind cooling

Change cutter

Specialization

Routing capability



Cutting speed(max.)

100mm/s

Driving speed(max.)

3000mm/s

Precision of cutting

0.01mm

Vacuum System



Vacuum power

2.2KW AC 380V

Vacuum

plumb

Utilities



Power

2.2KW AC380V

Air supply

2~5KG/cm2

Programming



Program edit

Inline

Function edit

Line,arc,circula,U-curve

Program storage

HDD

Vision system

SONE colour CCD

milling cutter offset

AUTO

Vacuum setup

AUTO

Operation Monitors



Iindicator

Iindicator Machine state

tool check

Automatic detection tool life, the use of time testing

Motor protect

Have overheating, overload, low voltage protection function

motor over loading check

Have Overload, the line is normal, low voltage protection function

Tool usable time

Automatic detection tool life,

Data statistic

Separate board model, separating count, diverse counting methods

Error record

Software automatically records all alarms memory of machines

III. Accuracy



Axis precision

0.001mm

Cutting precision

0.1mm

IV. Safety



Working area protect

With four sealed protection

Door sensor

Front and rear safety door micro-switch sensor (optional)

Exigency stop button





3.Function Description



1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2.Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.

3.AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

4.routng bit automatically lift and shift to next programmed point then cutting to extend the life time of routing bit.

5. safety door industry design.

6. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

Automatic pcb separator machine manufacturer in China -YSVC-650Automatic pcb separator machine manufacturer in China -YSVC-650
