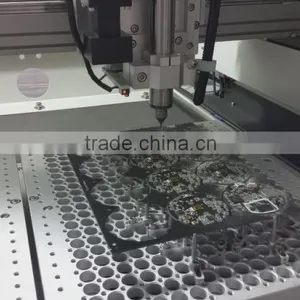

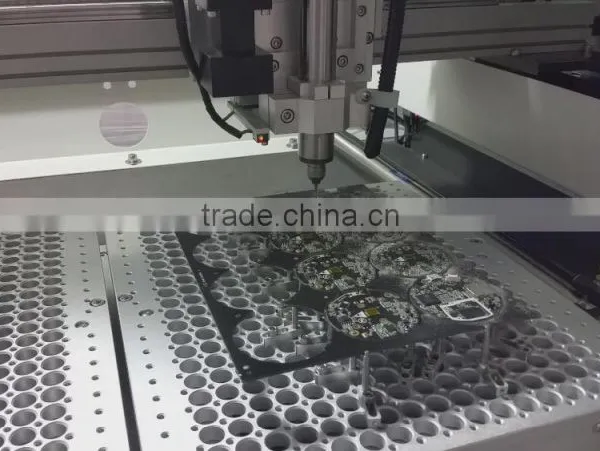

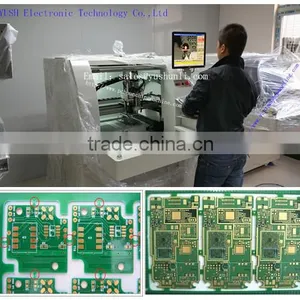

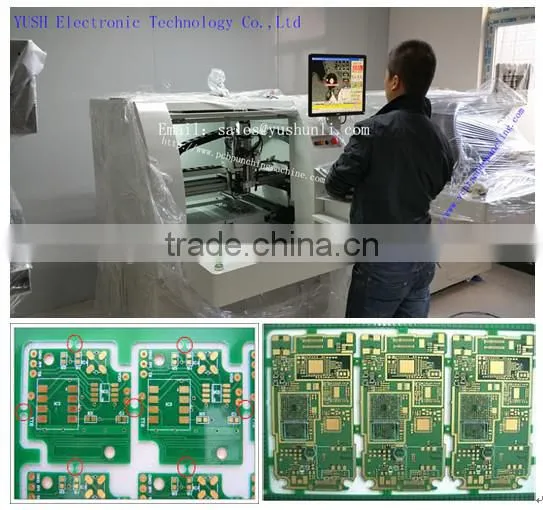

Online Automatic PCB Routing Machine -YSVC-650
US$ 1,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YUSH
Model Number:
YSVC-650
Payment & Shipping
Payment Methods:
Port of Shipment:
by express by air by sea fowarder opionted
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PCB Router Machine / PCB Depanelizer Machine / PCB Fabrication Machine -YSVC-2US$ 1,000 - 5,000MOQ: 1 Set -
Programmable PCB Routers / PCB Grooving/PCB V CUT - YSVC-3US$ 1,000 - 4,800MOQ: 1 Set
-
Single Sided FR4 Pcb Cutter / Aluminium Lead Free HASL Pcb Cutter , Round LED PCB Board Cutter -YSPEUS$ 980 - 5,800MOQ: 1 Set
-
Hook Knife Type Pneumatic PCB Singulation Machine,PCB Singulation Machine-YSVC-3US$ 1,000 - 4,800MOQ: 1 Set
-
Curve PCB Cutter / Curve Desktop PCB Cutter, PCB Cutter Curve DesktopUS$ 39,800 - 39,800MOQ: 1 Set
Brand Name
YUSH
Model Number
YSVC-650
feature:
1.High efficiency:It merely needs a few minutes to make a piece of PCB.
2.Safety :Enclosed Work Area ;Door Interlock Sensors ;Emergency Stop Button
specifications
| I. Hardware | |
| System models / types | Windows XP Professional |
| Overall | |
| FootPrint (LxWxH) | 800mm*850mm*1700mm |
| Weight (Approximate) | 150KG |
| Adjustable machine footings (for height) | 60~110mm |
| Manipulator | |
| Manipulator Motor | Panasonic MINAS A5 series |
| Manipulator Repeatability | 0.001mm |
| Axis configuration | |
| Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
| Work station | |
| Board Positioning | Fixture positioning, thimble universal positioning, vision correction |
| Loading/Unloading | manual |
| Routing Range | 320mm*320mm |
| Panel Thickness | 3mm |
| Fixturing | |
| Rigid Fixturing | Universal thimble & anti-static fixture |
| Top Clamp | Using hole positioning |
| Spindle Motor | |
| Power | 100W |
| Max. speed | 60000rpm/min |
| Cooling | Natural cooling and air-cooled |
| Router bit size | 3mm*3mm |
| Tool change | Use Special wrench |
| Routing capability | |
| Max routing speed | 100mm/s |
| Repeatability | 0.02mm |
| Vacuum System | |
| Power | 0.75KW220V Single-phase motor |
| Filtration | Vertical and horizontal |
| Utilities | |
| Power | 1.5KW AC220V |
| Air supply | 4~5KG/cm2 |
Our advantage:
1.we can do the designs according to the customers' requirement
2.we can offer you the high quality & reasonable price
3.we can offer your a good after-sell service .
4.we have strong professinal design team
5. promptly delivery. small order is welcome
