Help CenterPCB Loader / PCB Magazine Loader
Related Products
-
PCB Magazine Loader for SMT Assemby Line ,PCB Handling EquipmentUS$ 1,000 - 9,000MOQ: 1 Piece -
SMT PCB Magazine LoaderUS$ 5,000 - 5,000MOQ: 3000 Sets
-
SMT PCB Magazine LoaderUS$ 5,000 - 5,000MOQ: 3000 Sets
-
Automatic SMT Assembly Line PCB Magazine LoaderUS$ 5,000 - 5,000MOQ: 3000 Sets
-
Automatic PCb Loader and UnloaderUS$ 5,000 - 5,000MOQ: 3000 Sets

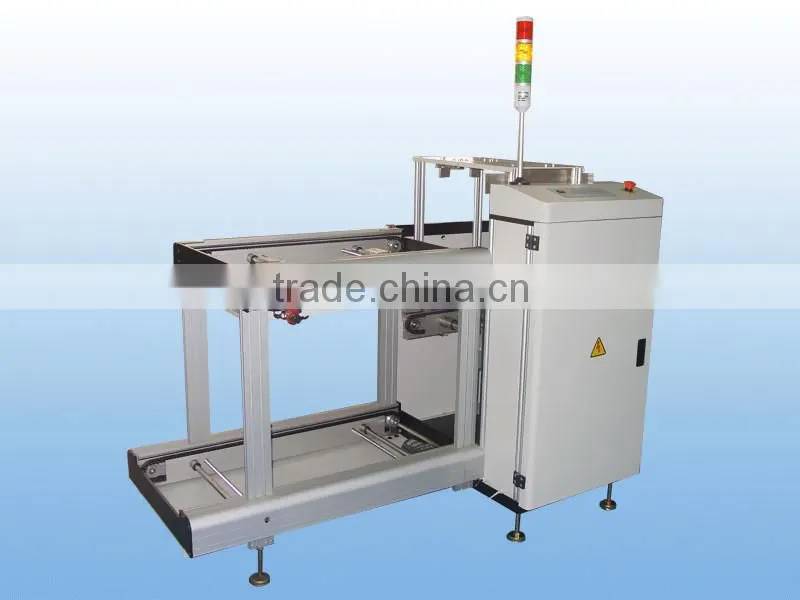

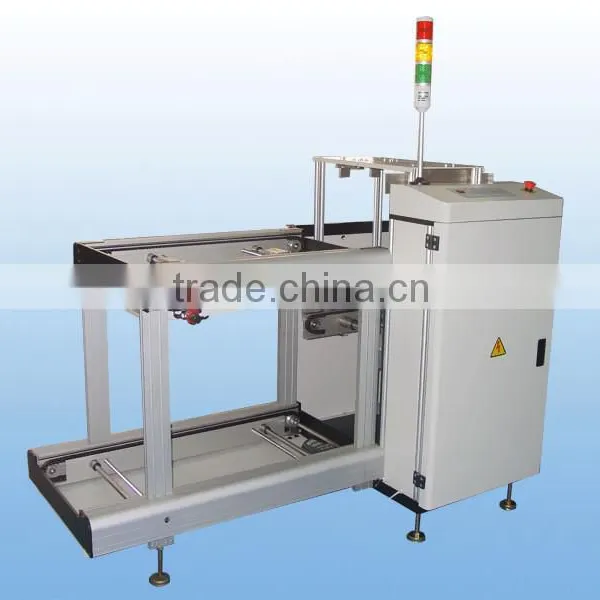

Product Name :
1: Strong , firm and stable design .
2: User Friendly membrane control panel .
3: Top & bottom pneumatic clamps to secure magazine rack.
4: No PCB break guaranty during loading & unloading .
Technique Parameter :
Description |
This unit is used for loading of PCBS . |
Time Feed PCB |
Second 6 Approx |
Magazine change over time |
Approx 30 Seconds |
Power Soure &Consumption |
100-230 VAC (Specify) .1ph , 300VA max |
Air pressure &Consumption |
4-6 bar . 10Ltr/min max |
Conveyor Height |
910±20mm (or specify) |
Conveyor Direction |
L –R / R-L (Option) |
PCB thickness |
0.4mm min |
No of magazine |
Upper conveyor ,1 magazine / Lower conveyor , magazine. |
Indexing Pitch |
1-4 (10mm pitch) |
Model |
YS-3525 |
YS-4533 |
YS-539 |
YS-3546 |
|
Effective PCB size (L*W)~(L*W) |
(50*50)~(350*250) |
(50*50)~(455*330) |
(50*50)~(530*390) |
(50*50)~(530*460) |
Dimension (L*W*H) |
1000*800*1200 |
1210*880*1200 |
1360*940*1200 |
1360*1010*1200 |
Size of magazine (L*W*H) |
355*320*563 |
460*400*563 |
535*460*570 |
535*530*570 |
Weight |
Approx 125 kg |
Approx 165kg |
Approx 205kg |
Approx 245kg |
