CE certification pcb v-score cutter ,1200mm high speed Automatic PCB depaneling for pre scored PCB . YSVC-2
- 100 Set / Sets per Month
- by express by air by sea fowarder opionted
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | YUSH | Model Number: | YSVC-2 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1200mm high speed Automatic PCB depaneling for pre scored PCB . YSVC-2
1.Easy maintenance and operation
2.Thin PCB even to 0.3mm can be sheared safely
3.Shearing process without vibrations due to pneumatic drive unit
specifications
Max length 330mm(Can custom made)
Cutting thickness 0.3-3.5mm
Voltage and Power 110V/220V
Working air pressure 0.5-0.7Mpa
speed due to operator skilled level
size 620*230*400mm
weight 165kg
features
1.Pneumatically driven and electromagnetic valve control.
2.Shearing process without vibrations due to pneumatic drive unit .
3.Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.

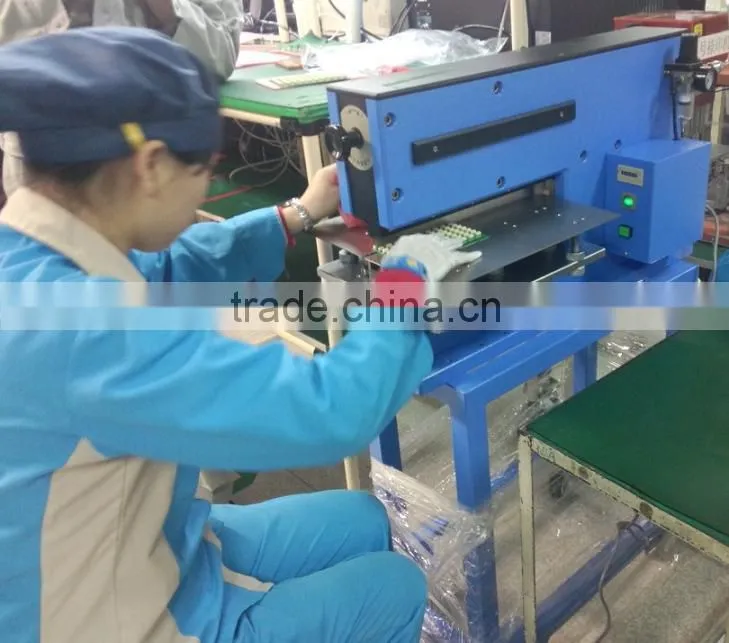

4.Shearing operation is that operator stamps the foot pedal to shear PCB.
5.Highest components near the v groove of PCB can be up to 70mm.
6.The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7.Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.

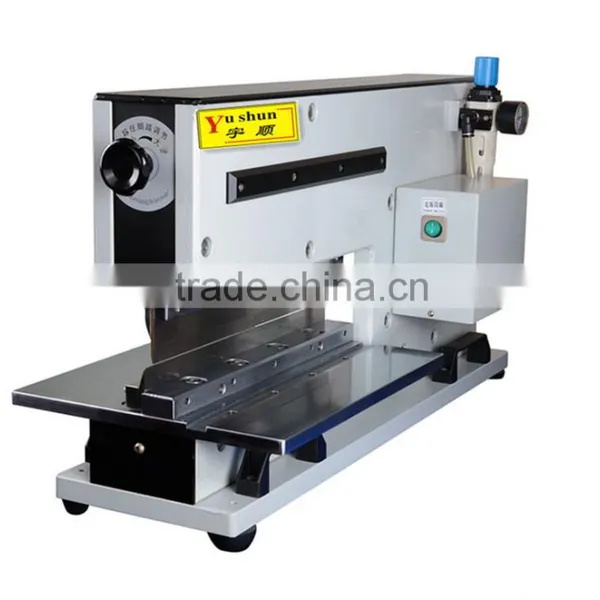

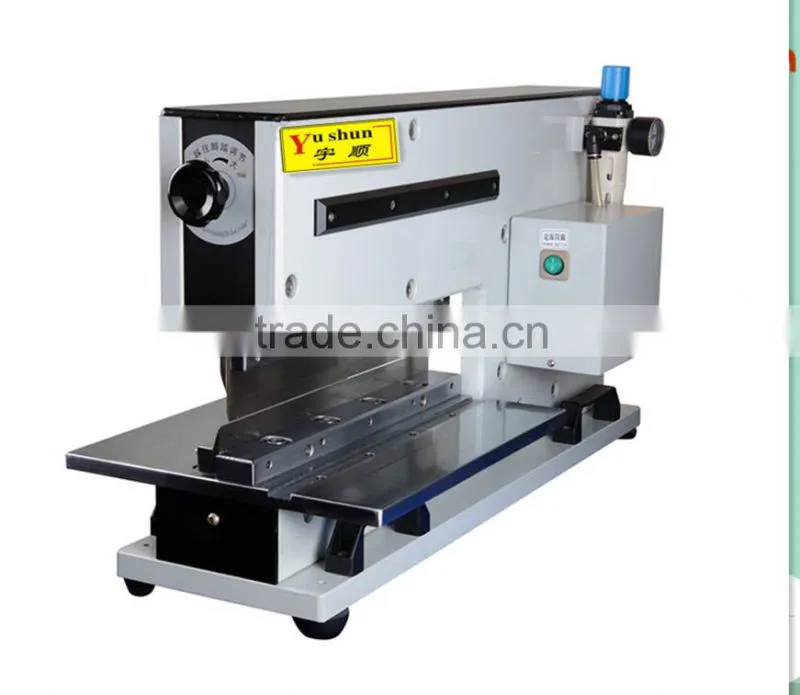

Straight Knife pcb depaneling machine - Pneumatically driven and electric control
The machine is pneumatically driven and electric control. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even
sensitive SMD-components like ceramic capacitors will not be damaged by the separate process. Due to the special design of the knives also boards with high
components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within
the groove. This enables boards of less than 1 mm thickness to be separated safely and without creating stress.
Features
1, No vibration during the process to prevent damage to precise PCB
2,Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.
3,Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife.
4,Operation and maintenance can be done also by unskilled personnel
PCB Lead Cutting Machine Specification :
Maximum length of the board: | 300mm / 400mm |
Package Size: | 720mm(L)*300mm(W)*440(H) |
Thickness: | 0.50~3.5mm |
Power supply: | 220VAC / 110V |
Working air pressure: | 0.4——0.6Mpa |
Weight: | 189 kg |
Scope of application: | All V-CUT SMD PCB board |
