Rondish Protektor Long Range Wireless Nurse Call System uses a combination of low power and high power signaling to efficiently cover a variety of facilities with a call system.

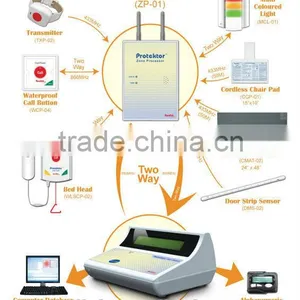

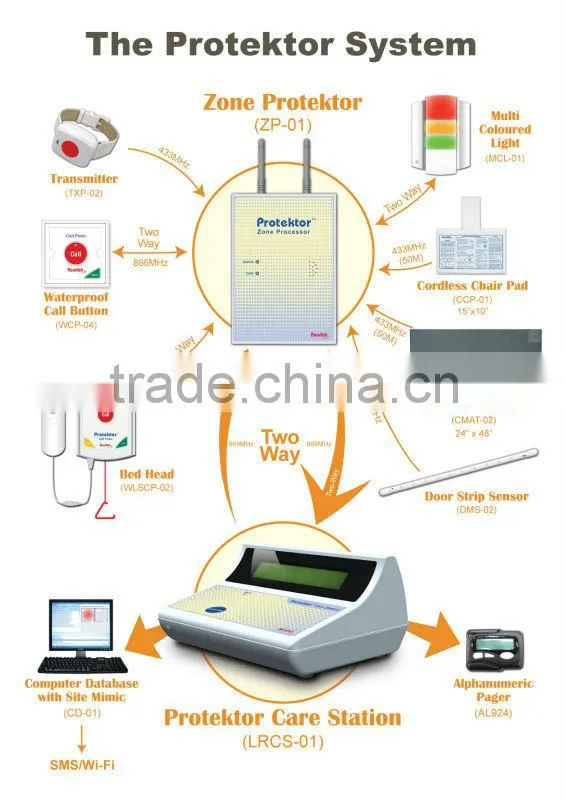

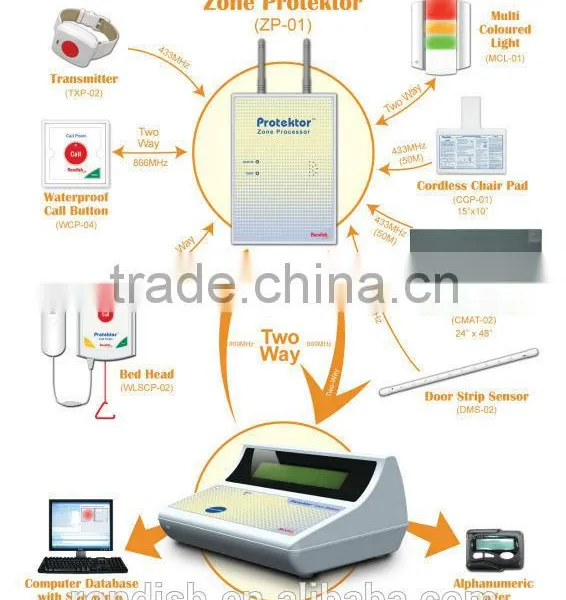

Lower power devices (868 or 915MHz) signal to a Zone Processor, which bumps the signal for a long-range link to a desktop Care Station. US and European regulations allow for higher signal strength on these frequencies than the unlicensed 315 or 433MHz bands, and the result is that Protektor has significantly greater range than wireless systems using these frequencies. A facility consisting of multiple floors, or a small campus of buildings, can be covered in a single wireless system.
Call points support multiple functions, including Call, Emergency, Presence, Guard, and Reset. Displays at the Care Station default for use in medical facilities, and can be configured for use in residences, service call, or customized circumstances.
Features
- Specifically designed for replacing existing nurse call systems – just connect each component to a power supply
- Allows bed alarm sensors for fall management and anti-wandering alarms useful for long-term care facilities
- Zone Protektor units will display wristband and wheelchair alarms, which allows caregivers to quickly find mobile patients
- Database available for recording all alarm events; easy to configure grid will show the status of every room in the system
- Alarm signals can be forwarded to a mobile phone or pager
- Certified to US and European standards
Benefits of Nurse Call System
- Improve the quality of service and care in your facility or hospital
- Reduce stress on hospital caregiver
- Effective use of annually budgeted funds
- Cover a variety of facilities with long-range signaling.
- Choose the modules to fill the requirements of your facility
Benefits of Wireless Alarm System
- Easy to install and convenient for replacing antiqued systems
- Complete monitoring solution for elderly care facilities
- Offer parallel system to installed nurse call for bed management as bed exist is usually higher priority than a normal call
- Flexibility to cover medium sized building or small campus
- More price competitive than wired system
- Available in CE and FCC approved versions
Applications
- Bed monitoring for fall management
- Door monitoring for dementia patients
- Nurse call for medical facilities
- Emergence Call
- Service Call
- Mobile emergence call
- Asset tracking
- Bathroom / Disabled Alarm
Display Languages
- English
- French
- Spanish
System Components
Model No. |
Description |
LRCS-01 |

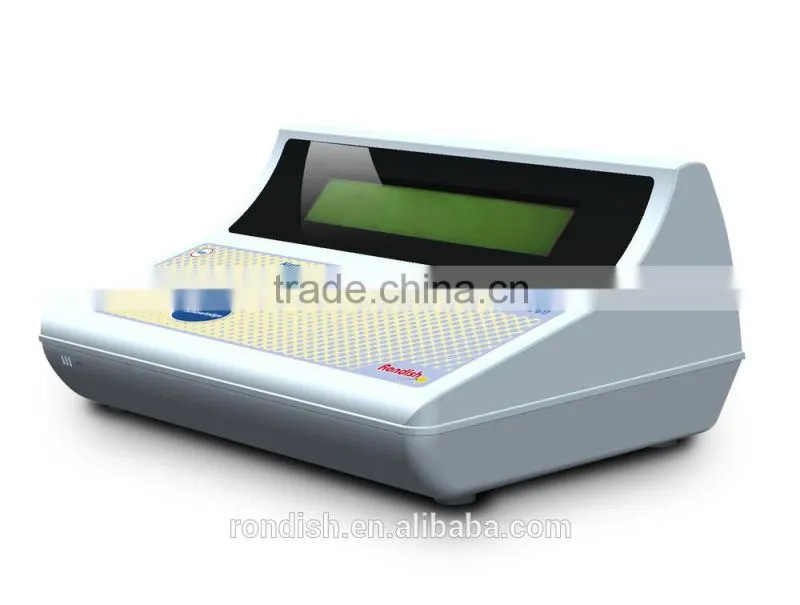

Protektor Care Station
This monitor connects wirelessly with displays the status of each item linked to the Protektor system and alarms when triggered by a sensor or call point. |

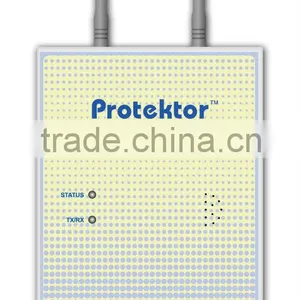

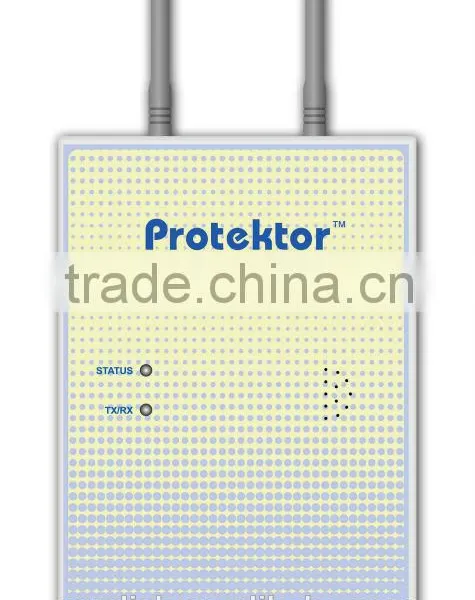

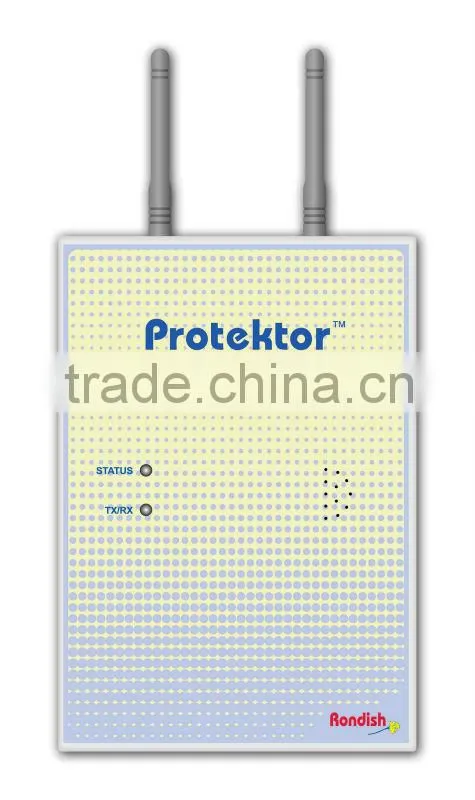

ZP-01 |
Zone Processor Unit
The Zone Protektor is a major in a long-range wireless system. It collects the signal form Rondish wireless devices and transmit to the LRCS-01. |

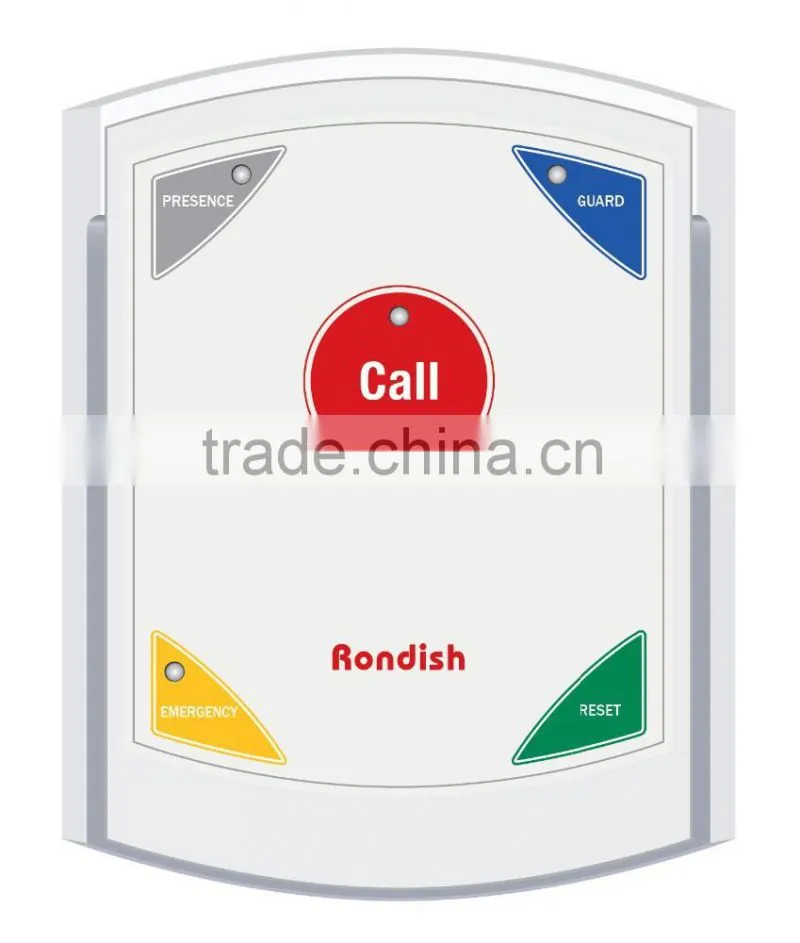

WLSCP-02 |
Multifunction Call Point
5 button call point for different usage (normal, emergency, presence, Guard presence and reset) |

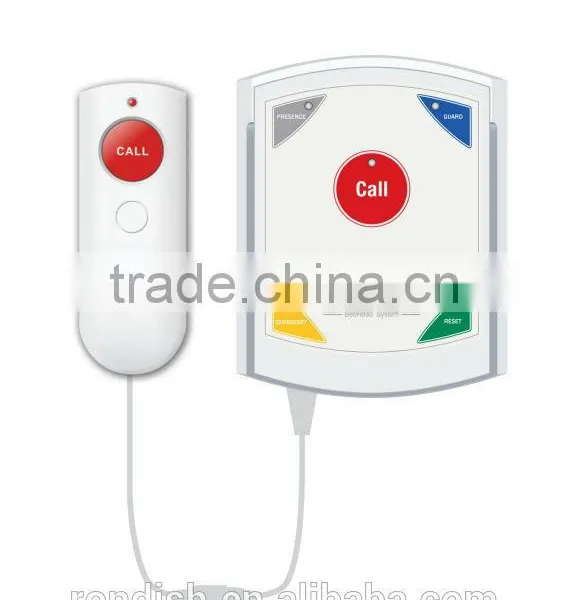

NEC-02 |
Patient Handset
Nurse Call Hand Set use with WLSCP-02 |

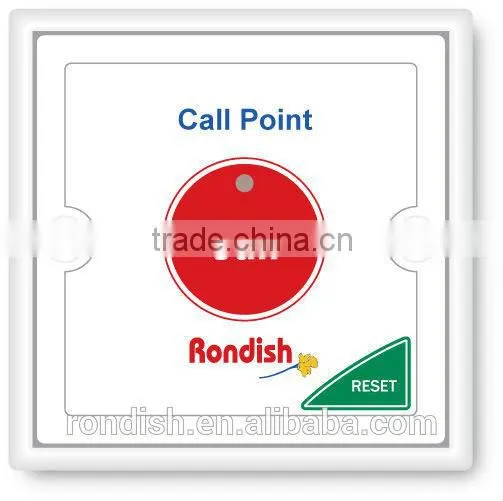

WCP-04 |
Waterproof Call Point
2 button waterproof wireless call point for toilet use. |
WLSMCL-01 |
Multicolor Indication Light
Multi-color light situated outside toilet or bedroom, it operate with WLSCP-02 and WCP-04 |
| Model No. | LRCS-01 | |
| Operating frequency: | 869 MHz (CE) or 916MHz (FCC) | |
| Operating range: | 50m (local), 500m (long-range) | |
| Power Suppy: | AC adaptor 12V 800mA Battery pack back-up (6Vdc) |
|
| Color: | White | |
| Dimensions(LxWxD): | 240 x 170 x 110mm | |
| Housing material: | ABS (UL-94HB, flammability grade) | |
| Alarm Tone/Volume: | 1 tone only and volume adjustable | |
| Output port: | ¼” port to connect with other nurse call system | |
| Data output to PC | Non-support | |
| Net Weight: | 900g |
| Model No. | LRCS-11 | |
| Operating frequency: | 869 MHz (CE) or 916MHz (FCC) | |
| Operating range: | 50m (local), 500m (long-range) | |
| Power Suppy: | AC adaptor 12V 800mA Battery pack back-up (6Vdc) |
|
| Color: | White | |
| Dimensions(LxWxD): | 240 x 170 x 110mm | |
| Housing material: | ABS (UL-94HB, flammability grade) | |
| Alarm Tone/Volume: | 1 tone only and volume adjustable | |
| Output port: | ¼” port to connect with other nurse call system | |
| PC connection port | RS232 | |
| Data output to PC | Support | |
| PC database software | Included | |
| Net Weight: | 900g |
| Model No. | ZP-01 | |
| Operating frequency: | 869 MHz (CE) or 916MHz (FCC) | |
| Operating range: | 50m (local), 500m (long-range) | |
| Transmission Power: | 13dBm (local), 27dBM (long-range) | |
| Power Suppy: | AC adaptor 12V 500mA | |
| Color: | White | |
| Dimensions(LxWxD): | 210 x 150 x 45mm | |
| Housing material: | ABS (UL-94HB, flammability grade) | |
| Maximum Device support: | 64 Units | |
| Net Weight: | 450g |
| Model No. | WLSCP-02 | |
| Operating frequency: | 869 MHz (CE) or 916MHz (FCC) | |
| Operating range: | 50m | |
| Transmission Power: | 13dBm | |
| Power Suppy: | 12VDC, 200mA AA Battery x4 |
|
| Battery life: | 6 months (Nominal) | |
| Color: | White | |
| LED color: | Red | |
| Dimensions(LxWxD): | 125 x 100 x 35mm | |
| Housing material: | ABS (UL-94HB, flammability grade) | |
| Net Weight: | 200g | |
| Max Field strength/RF output power | 500 mW (e.r.p) |
| Model No. | NEC-02 | |
| Color: | White | |
| Dimensions(LxWxD): | 120 x 50 x 25mm | |
| Housing material: | ABS (UL-94HB, flammability grade) | |
| Net Weight: | 130g | |
| Cable Length | 2m |
| Model No. | WCP-04 | |
| Operating frequency: | 869 MHz (CE) or 916MHz (FCC) | |
| Operating range: | 50m | |
| Transmission Power: | 13dBm | |
| Power Suppy: | Internal battery | |
| Battery life: | 1 year (Nominal) | |
| Color: | White | |
| LED color: | Red | |
| Dimensions(LxWxD): | 85 x 85 x 10mm | |
| Housing material: | ABS (UL-94HB, flammability grade) | |
| Net Weight: | 130g | |
| Max Field strength/RF output power | 500 mW (e.r.p) |
| Model No. | WLSMCL-01 | |
| Operating frequency: | 869 MHz (CE) or 916MHz (FCC) | |
| Operating range: | 50m | |
| Transmission Power: | 13dBm | |
| Power Suppy: | 12Vdc, 200mA | |
| Color: | White | |
| Light color: | Red, Orange, Green, White, Blue | |
| Dimensions(LxWxD): | 160 x 120 x 40mm | |
| Housing material: | ABS (UL-94HB, flammability grade) | |
| Maximum Device support: | 10 Units | |
| Net Weight: | 180g | |
| Max Field strength/RF output power | 500 mW (e.r.p) |
Rondish began as a traditional security company, installing alarms, access control, CCTV and other mainstream security devices, until we realized that the key to security and safety was not just a matter of integrating other people's equipment as most security companies in Hong Kong do. Rather it was inventing novel devices and combinations that prevented crime and made people, premises and property safer. Furthermore, the healthcare and elderly systems market sector was underserved and needed specialist devices designed for it, so we made that a key part of our mission. The result is that about half our business is now in the caregiving sector and no-one does it better. Ask for our references, give us a problem and see for yourself.
Providing specialist security services to government, industry, commerce and private households, the Rondish organization is a police- and government- licensed company which has been established since 1989. Approved by Architectural Services Department (ASD) and Electrical and Mechanical Services Department (EMSD), Rondish has already installed and handed over many Electrical Low-Voltage (ELV) systems for major projects such as Housing Authority, Hospital Authority, Government Property Agency (GPA), etc
In recent years, built on core professional engineering expertise, our research and development division has grown in versatility, designing unique security products and creating new wireless alarm and location technology in accordance with our clients' particular needs.
Rondish holds several trademarks and patents, and special products are designed and developed to exploit synergy between security and state-of-the-art communication/IT fields.
Able to develop new and original ideas and use new techniques, Rondish adapts quickly to fully meet clients' and users' actual needs and requirements. The result is often a unique, sound, reliable integration of existing and new technology.
