pecifications
1. Manufacturer
2. High performance
3. Resonable price
4. CE approved

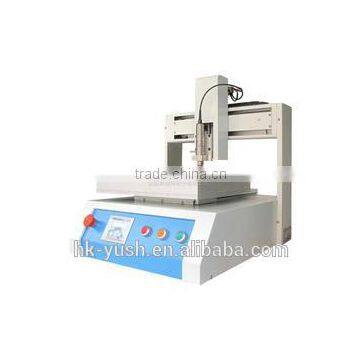

High Performance Good Quality Precision CNC Automatic Glue Dispensing Machine
CNC Automatic Glue Dispensing Machine is applied to glue dispensing for junction box fixing process. With its accurate robot, controller and pumping system, it can effectively dispense the glue, saving large volume of glue and contributing good performance.
Features
1. Keyboard control in English version, easy operation and maintenance
2. Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Equipped with pro. software that has area display, translation rotating operation functions.
4. Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
The main application areas
Mobile Phone , Compture housings , Optical drives , Printers , ink clips , PCB , LCD , LED , DVD , Digital Cameras , Switchs , Connectors , Relays , radiator, semiconductors and other electronics, or SMT devices to connect quickly points / glue, clocks,toys, medical equipment and other required liquid dispensing products .
| Model | YS-220 | YS-330 | YS-440 | YS-550D | ||||
| Work area (X/Y/Z)mm | 200*200*50 | 300*300*100 | 400*400*100 | 500*500*150 | ||||
| Max. speed(mm/see) | 0.1~500/350 | 0.1~800/500 | 0.1~800/500 | 0.1~800/500 | ||||
| Dimensions(W*D*H mm) | 385*380*500 | 485*505*610 | 585*610*610 | 685*700*660 | ||||
| Resolution | 0.01mm/Axis | |||||||
| Repeatability | +/-0.01mm/Axis | |||||||
| Operation interface | LCD touch panel/Handhold control box | |||||||
| Drive mode | Micro stepping motor/belt | |||||||
| Power | AC220V 50-60HZ 0.8KW | |||||||
| Net weight | 23kg | 34kg | 41kg | 52kg | ||||
| Operation environment | Humidity:20-90% RH, Temperature:0-40°C | |||||||
| Date storage type | CF Card | |||||||
Features
1. Full automatic robot with 3 or 4 axes.
2. Dispensing path can be set in the robot or imported from out computer.
3. Easy operation, the holder and program easy to amend.
4. Can store multiple independent running program.
5. High precision, the glue is well controlled.
6. Can configure multiple dispensing head.
7. Wide dispensing area which can set several products.
8. The working table can be customized on request.
Application
1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Inductance industries: small transformers, SMD transformers, relays, small coil motors
3 Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen, etc.
7 Optics: optical lenses, optical head
8 Mechanical hardware, battery box, trademark, steam machinery spare parts
9 LED industries
