Ritai is one of the biggest manufacturers of stainless steel tanks in China, which has three factories in Shanghai, China.

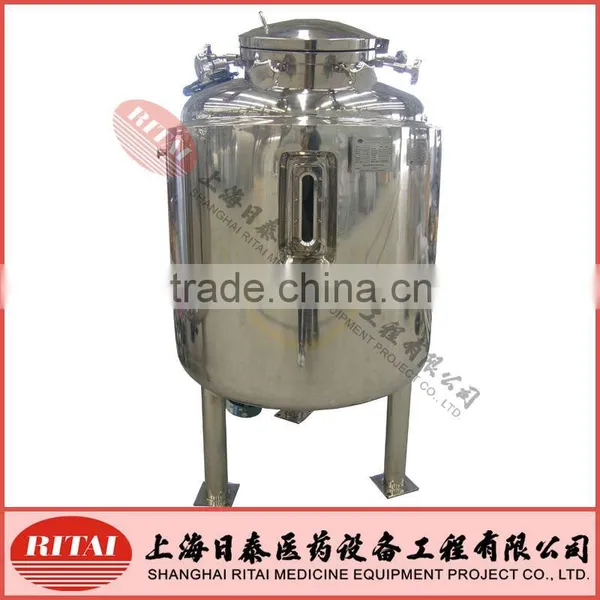

Name: Dimple/coil/full jacket stainless steel tank
Application:
We have different kinds of agitators
bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc...
top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc....
top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc....
top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc....
Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc....
one tank can install one agitator, if client need, one tank can install two agitator together.
Product Technical Description of Dimple/Coil/Full Jacket Stainless Steel Tank
Specification: 10L~30000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation

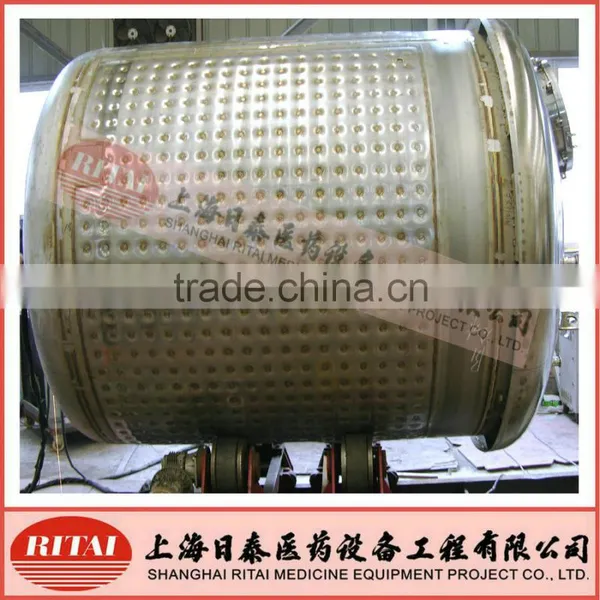

Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components can be equipped as request:
standard components: manhole or handhole, sight glass, cleaning ball
optional components:
vent filter with Pall cartridge or china brand cartridge
temp. gauge, display on the gauge directly on the vessel
temp sensor pt100, digital display on the control cabinet by instrument
temp sensor with control for heating and cooling
level gauge with digital display on the control cabinet by instrument
load cell
valves
Manufacture standard for pressure vessel: ASME with U stamp, PED 97/23/EC with CE mark, GB150-2011
Working volume |
Inner diameter |
Outer diameter |
Vessel height |
Total volume |
30L |
400mm |
500mm |
400mm |
44L |
50L |
400mm |
500mm |
600mm |
69L |
100L |
500mm |
600mm |
650mm |
130L |
200L |
600mm |
700mm |
1000mm |
250L |
300L |
700mm |
800mm |
1250mm |
370L |
500L |
900mm |
1050mm |
1150mm |
650L |
1000L |
1100mm |
1250mm |
1480mm |
1260L |
1500L |
1200mm |
1350nmm |
1700mm |
1780L |
2000L |
1300mm |
1500mm |
1980mm |
2200L |
3000L |
1500mm |
1700mm |
2150mm |
3400L |
4000L |
1600mm |
1750mm |
2630mm |
4000L |
8000L |
1900mm |
2100mm |
3200mm |
8300L |
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement. | ||||
Packaging: wooden case or iron rack
Shipping: by sea or by air
We offer design, customization, installation, maintenance services, etc.
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
