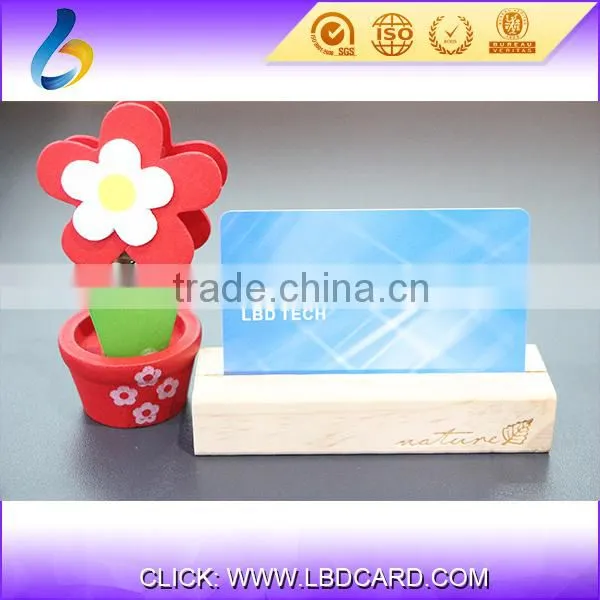

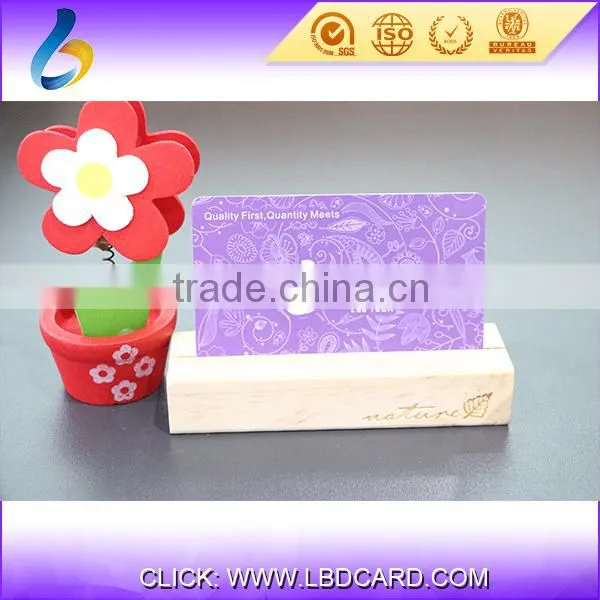

125KHZ Contactless PVC EM4200 RFID KEY Card

LF: EM4200 - Compatibility

1.1 Data Structure

    ♦2 * 64 bits EM4100/EM4102 data telegram composed by:
         ♦9 bits header – Start bit “0”
         ♦8 bit customer code
         ♦32 bit data field
         ♦Column and Row Parity bit
    ♦1 * 128 bit of EM4005/EM4105
          ♦ISO11784/11785
          ♦BDE telegram structure
1.2 Data encodings: Manchester, Biphase, PSK
1.3 Data Rates: RF/16, RF/32, RF/64
1.4 Resonant Capacitor: 75pF

LF:T5577 RFID card chips:

• High Performance IDIC® (Extended Read/Write Distance)
• Contactless Power Supply
• Contactless Read/Write Data Transmission
• Radio Frequency fRF from 100 kHz to 150 kHz
• Basic Mode or Extended Mode
• Compatible with T5557, ATA5567
• Configurable for ISO/IEC 11784/785 Animal and Waste Standards Compatibility
• Total 363 Bits EEPROM Memory: 11 Blocks (32 Bits + 1 Lock Bit)
• On Chip Trimmed Capacitor
• High Q-antenna Tolerance Due to Build in Options
• Adaptable to Different Applications: Access Control, Animal ID and Waste Management

 Advantage of  T5577 Smart Cards :

1.High quality PVC.PET ABS,Crystal epoxy layer

2.Size:85.5*54mm or custom

3.Thickness:0.9-0.96mm or 1.7-1.8mm or custom

4.Shaped size available,such as 30*50mm

5.Competitive price with short lead time

6.Chip come from Atmel Company

7.Write data,PIN Code and other crafts are available

LF: TK4100 RFID CARD

 TK4100 is a contactless read/write Identification IC for applications in the 125Khz or 134Khz frequency band. A single coil connected to the chip serves as the IC's power supply and bi-directionsl communication interface. The antenna and chip together from a transponder or tag.

Compatibility

The TK4100 is designed to be compatible with the ATA5567. The structure of the configuration register is identical . The two modes , Basic mode and Extended mode , are also available. The tk4100 is able to replace the E5551 in most common operation modes.

 Function: Read/Write protect by password

- Memory: 330-bit EEPROM(10 blocks, 33bits each)

- Frequency: 125KHz

- RF protocol: N/A

- Modulation: FSK, PSK, Manchester, Biphase, NRZ
