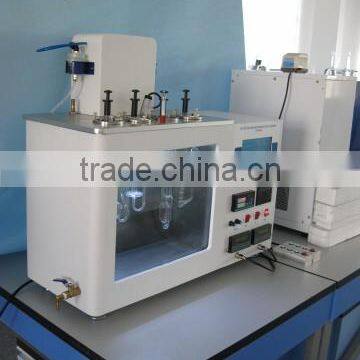

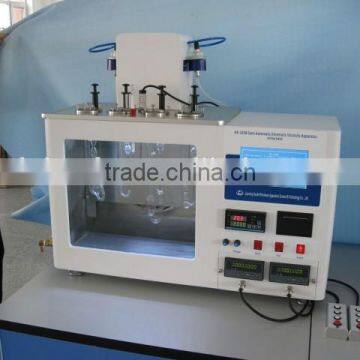

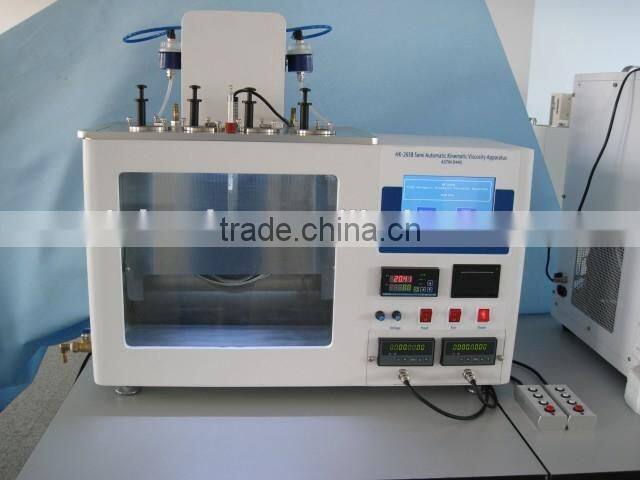

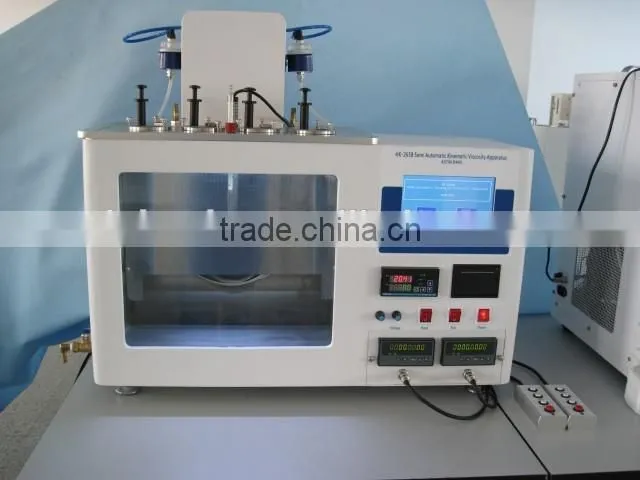

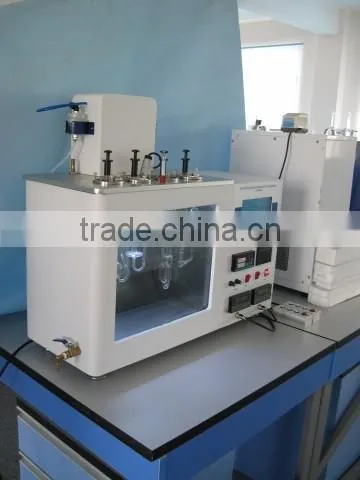

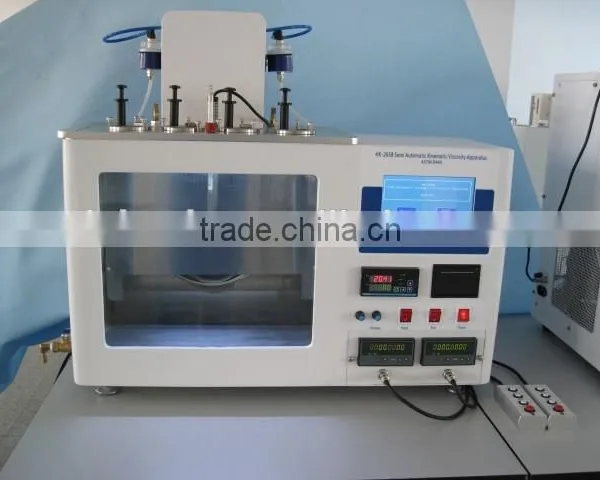

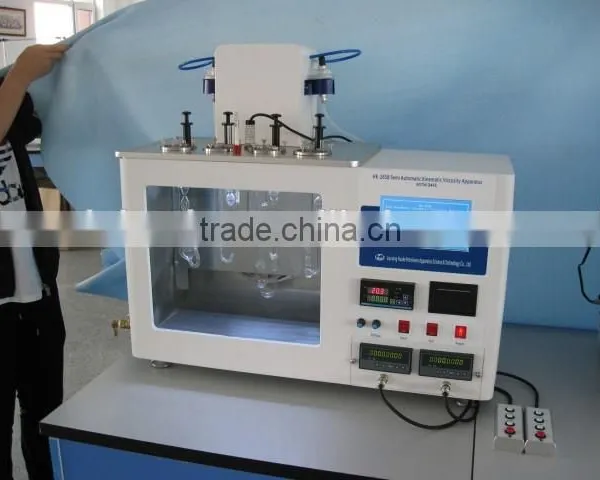

Help CenterHK-265G Kinematic Viscosity Tester for Petroleum Products (Semi-automatic)
Related Products
-
NDJ-79 Brookfield ViscometerUS$ 1,000 - 100,000MOQ: 1 Set -
NDJ-1B Brookfield ViscometerUS$ 1,000 - 100,000MOQ: 1 Set
-
NDJ-79 Brookfield ViscometerUS$ 1 - 10,000,000MOQ: 1 Set
-
HKT-003 Capillary Viscometer Verification Constant Temperature BathUS$ 1 - 10,000MOQ: 1 Set
-
HKT-003 Capillary Viscometer Verification Constant Temperature BathUS$ 1 - 10,000MOQ: 1 Set
Overview
According to the standard of GB/T 265, ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and opaque Liquids (and Calculation of Dynamic Viscosity). HK-265G Kinematic viscosity tester for petroleum products(Semi-automatic)is used to test the Kimenatical viscosity of liquid petroleum products (Newton liquid)
Features
1.Touch screen display,double stopwatch design, be able to censor.
2.Square bath, LED light.
3.Operated by two set of remote-control box, raise the efficient.
4.Cooling water circulating tube inside.
5.Automatic pressure absorption, suction strength adjustable.
6.Calculate, print and record the result automatically.
Technical parameters
Rated voltage |
AC220V±10% 50Hz |
Heating power |
2000W |
Temperature Control |
Digital display temperature control |
Transducer |
Pt100(Platinum resistor) |
Temperature Accuracy |
±0.01°C |
Mixing Method |
Motor mixing |
Bath holes |
Four holes |
Printer |
Thermosensitive printer |
Ambient requirement |
Temperature: 15~30°C Humidity≤85% |
We can provide varies kinds of ASTM thermometers and capillary viscometers for this kinematic viscometer apparatus. See detailed information as below form:
Cannon-Fenske Opaque Viscometers
|
Size |
Approx. constant, mm2/s2(cSt/s) |
Kinematic Viscosity Range mm2/s(cSt) |
25* |
0.002 |
0.5 - 2 |
50 |
0.004 |
0.8 - 4 |
75 |
0.008 |
1.6-8 |
100 |
0.015 |
3-15 |
150 |
0.035 |
7-35 |
200 |
0.1 |
20-100 |
300 |
0.25 |
50-250 |
350 |
0.5 |
100-500 |
400 |
1.2 |
240-1200 |
450 |
2.5 |
500-2500 |
500 |
8 |
1600-8000 |
600 |
20 |
4000-20000 |
650 |
45 |
9000-45000 |
700 |
100 |
20000-100000 |
Cannon-Fenske Routine Viscometers
|
Size |
Approx. constant, mm2/s2(cSt/s) |
Kinematic Viscosity Range mm2/s(cSt) |
25* |
0.002 |
0.5 - 2 |
50 |
0.004 |
0.8 - 4 |
75 |
0.008 |
1.6-8 |
100 |
0.015 |
3-15 |
150 |
0.035 |
7-35 |
200 |
0.1 |
20-100 |
300 |
0.25 |
50-250 |
350 |
0.5 |
100-500 |
400 |
1.2 |
240-1200 |
450 |
2.5 |
500-2500 |
500 |
8 |
1600-8000 |
600 |
20 |
4000-20000 |
650 |
45 |
9000-45000 |
700 |
100 |
20000-100000 |
Ubbelohde Viscometers
|
Size |
Approx. constant, mm2/s2(cSt/s) |
Kinematic Viscosity Range mm2/s(cSt) |
0* |
0.001 |
0.3 -1 |
0C |
0.003 |
0.6 - 3 |
0B |
0.005 |
1-5 |
1 |
0.01 |
2-10 |
1C |
0.03 |
6-30 |
1B |
0.05 |
10-50 |
2 |
0.1 |
20-100 |
2C |
0.3 |
60-300 |
2B |
0.5 |
100-500 |
3 |
1.0 |
200-1000 |
3C |
3.0 |
600-3000 |
3B |
5.0 |
1000-5000 |
4 |
10 |
2000-10000 |
4C |
30 |
6000-30000 |
4B |
50 |
10000-50000 |
5 |
100 |
20000-100000 |
Thermometer
Item |
Division Value(℃) |
Thermometer Range(℃) |
Size |
Length(mm) |
OD(mm) |
Immersion (mm) |
28C* |
0.05 |
36.4-39.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
29C |
0.05 |
52.6-55.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
44C |
0.05 |
18.6-21.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
45C |
0.05 |
23.6-26.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
46C |
0.05 |
48.6-51.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
47C |
0.05 |
58.6-61.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
48C |
0.05 |
80.6-83.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
110C |
0.05 |
133.6-163.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
118C |
0.05 |
100-500 |
Stick |
305±5 |
6.0-8.0 |
Full |
120C |
0.05 |
38.6-41.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
121C |
0.05 |
98.6-101.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
129C |
0.05 |
91.6-94.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
132C |
0.05 |
148.6-151.4 |
Stick |
305±5 |
6.0-8.0 |
Full |
Send Inquiry to This Supplier
