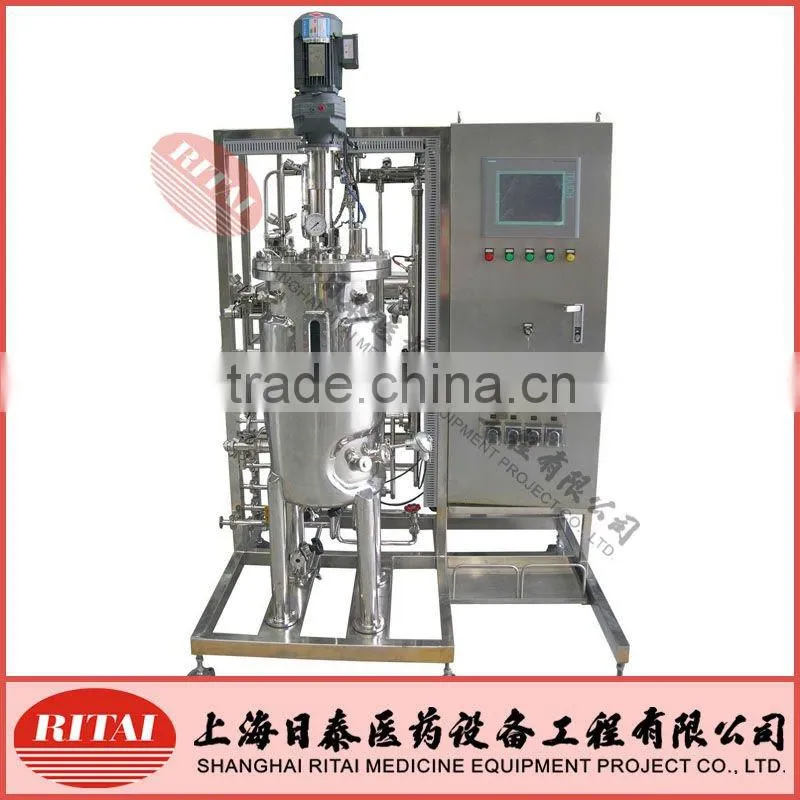

200L-800L SIP Industrial Bio Fermenter/Fermentor
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SHANGHAI RITAI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Fermentor With Seed FermentorUS$ 10,000 - 50,000MOQ: 1 Unit -
Microbiology Fermentor / Bio Fermentor With Control CabinetUS$ 10,000 - 50,000MOQ: 1 Unit
-
Industrial Microbiology FermentorUS$ 10,000 - 100,000MOQ: 1 Unit
-
Fermentor & Bioreactor (30L-150L)US$ 15,000 - 25,000MOQ: 1 Unit
-
Stainless Steel Microbiology FermenterUS$ 10,000 - 100,000MOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
SHANGHAI RITAI
Model Number
RTY-MS
Processing Types
Other, bacteria culture, fungus, enzyme, vaccine, environment,agriculture, ph
Voltage
380V or according to the requirements.
Power(W)
0.37~1.1kw
Dimension(L*W*H)
It depends on the requirements of the volume
Weight
Depending on the volume of the fermenter
Certification
ASME, PED 97/23/EC, NB, GB, ISO 9001:2008
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Feature:
1.SIP fermentors can be sterilized easily by sterilizable -in -place
2.Large 10.4" colourful simens touchscreen simplifier enteringsetpoints and provides displays of parameter.
3.advanced software to make it easy for operation and understanding.
4.Stainless steel vessel, piping and control cabinet has long life
5.Excellent stability and convenient to operate
6.Modular design provide system flexibility
7.Small footprint to minimize space requirement
8.Opening piping frame with plenty of space between valves and piping,make it easy for operation and maintenance
2.Large 10.4" colourful simens touchscreen simplifier enteringsetpoints and provides displays of parameter.
3.advanced software to make it easy for operation and understanding.
4.Stainless steel vessel, piping and control cabinet has long life
5.Excellent stability and convenient to operate
6.Modular design provide system flexibility
7.Small footprint to minimize space requirement
8.Opening piping frame with plenty of space between valves and piping,make it easy for operation and maintenance
Application:
Ritai offers SIP fermentors for microbial culture applications. It is ideal system for production of bacteria, yeast, enzyme,and fungi ,etc in aerobic and anaerobic cultures.This series of products suits for various kinds of microbiology lab, pilot and industrial scale fermentation. User can choose
appreciate model according to Client s detail requirement.
Range:
This series of products suit for various kinds of microbiology fermentation test, such as bacteria culture, fungi, enzyme, vaccine,environment, agriculture, pharmacy, microbiology, etc. This equipment has following features: excellent stability and convenient operation. Users can choose appropriate configuration according to fermentation process.
| Control parts for fermentor | ||||||
| No. |
Parameter name |
Technical indicator |
||||
| 1 |
PH |
1.On-line check and measure, and digitization fully automatic control; 2.PH, acid and base gang control. Peristaltic pump automatically adjust to feed acid and base; 3.Control range 2-12pH, measure precision ± 0.01 pH, control precision ± 0.01 pH; 4. It has auto alarm function. 5.pH sensor and signal transmission line. . |
||||
| 2 |
DO control |
1.On-line check and measure, DO and rotate speed gang control; 2.Range 0-100% or 0-200%, precision ± 1%; 3. It has auto alarm function; 4. DO sensor and signal transmission line.. |
||||
| 3 |
Foam control |
1.Automatically control and automatically alarm; 2.Eletrode check, peristaltic pump automatically add defoamer. |
||||
| 4 |
Feed control |
1.Maunally control; 2.Automatically add according to fixed max. height . |
||||
| 5 |
Temp. control |
1.PID fully digitization signal processing, digitization control settings 2.Circulating water automatically control temperature 3.Measure range 0-150 degree, control range 15-45 degree,control precision ± 0.5degree 4.Pt 100 Ω temp. Sensor |
||||
| 6 |
Rotation speed |
1.Fully automatic control settings, with automatic alarm function 2.Speed range, please check the drawing, precision ± 1% 3.It is mechanical agitator, turbine type, vertical impeller 4.Speed:50-400rpm |
||||
| 7 |
Sterilization |
Manually control |
||||
| 8 |
Pressure |
Checked by pressure gauge, manually control, range 0-0.4Mpa. |
||||
| 9 |
Air flow |
Display on the rotormeter. |
||||
| Remarks: the table is only for reference, if client have difference requirement on the control points, we can also make according to client requirement. | ||||||
Packaging & Shipping
Packaging: wooden case Shipping: by sea
Our Services
We offer design, customization, manufacture, installation, and maintenance services, etc.
Company Information
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
