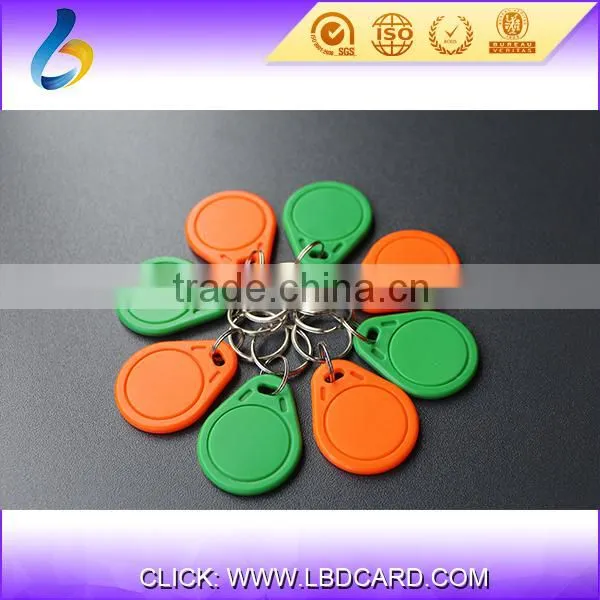

High Quality 125KHZ Factory price EM4200 Keyfob

LF: EM4200 - Compatibility

1.1 Data Structure

    ♦2 * 64 bits EM4100/EM4102 data telegram composed by:
         ♦9 bits header – Start bit “0”
         ♦8 bit customer code
         ♦32 bit data field
         ♦Column and Row Parity bit
    ♦1 * 128 bit of EM4005/EM4105
          ♦ISO11784/11785
          ♦BDE telegram structure
1.2 Data encodings: Manchester, Biphase, PSK
1.3 Data Rates: RF/16, RF/32, RF/64
1.4 Resonant Capacitor: 75pF

LF:T5577 RFID card chips:

• High Performance IDIC® (Extended Read/Write Distance)
• Contactless Power Supply
• Contactless Read/Write Data Transmission
• Radio Frequency fRF from 100 kHz to 150 kHz
• Basic Mode or Extended Mode
• Compatible with T5557, ATA5567
• Configurable for ISO/IEC 11784/785 Animal and Waste Standards Compatibility
• Total 363 Bits EEPROM Memory: 11 Blocks (32 Bits + 1 Lock Bit)
• On Chip Trimmed Capacitor
• High Q-antenna Tolerance Due to Build in Options
• Adaptable to Different Applications: Access Control, Animal ID and Waste Management

 Advantage of  T5577 Smart Cards :

1.High quality PVC.PET ABS,Crystal epoxy layer

2.Size:85.5*54mm or custom

3.Thickness:0.9-0.96mm or 1.7-1.8mm or custom

4.Shaped size available,such as 30*50mm

5.Competitive price with short lead time

6.Chip come from Atmel Company

7.Write data,PIN Code and other crafts are available

LF: TK4100 RFID CARD

 TK4100 is a contactless read/write Identification IC for applications in the 125Khz or 134Khz frequency band. A single coil connected to the chip serves as the IC's power supply and bi-directionsl communication interface. The antenna and chip together from a transponder or tag.

Compatibility

The TK4100 is designed to be compatible with the ATA5567. The structure of the configuration register is identical . The two modes , Basic mode and Extended mode , are also available. The tk4100 is able to replace the E5551 in most common operation modes.

 Function: Read/Write protect by password

- Memory: 330-bit EEPROM(10 blocks, 33bits each)

- Frequency: 125KHz

- RF protocol: N/A

- Modulation: FSK, PSK, Manchester, Biphase, NRZ

Our Service:

1.Any of your inquiry will be replied within 24hours

2.Professional manufacturer with big factory and whole machines

3.OEM ODM available:

1)Silk printing, CMYK Printing

2) Laser code, PIN Code , Sprying code.etc

3) Standard size, customized size

4) Gold Silver background .etc

5) Any of your crafts we can print

4.Factory price, Top quality, Best Service, Fast delivery.

5.After-sale service

1) Top quality, all of the products will be via strict QC and will be packaged well.

2) One year Warranty. And we are sure all of the products will be reproduce within warranty period.

3) All of the products will be free product if it is our mistake.

6.Samples:

Samples are in store and 7-8workdays for bulk production ,depend on quantity.

7.Payment:

T/T, Western Union , Paypal

Package details:

200pcs per inner box,1000pcs per carton,2000pcs per carton or demand

Delivery Details:

1,000 – 50,000pcs: 5-8 working days

60,000 – 100,000pcs : 8-15 working days

150,000 – 500,000pcs: 10-18 working days

Delivery Way:

1.By International express(2-5days door to door fastest service )

2.By Air (3-10Days Fast and Cheaper for Large order)

3.By Sea (4-30Days Cheapest Way for Large order)

Above shipping way is depending on inquiry.

About us:

Shenzhen LBD Smart Card Co., Ltd. is a professional high-tech enterprise producing and selling contact and contactless smart cards. The company is committed to research and development of smart card products currently covered by the low-frequency, high frequency and UHF series.

Our competitive facility:

The production workshop is 100,000-grade dust-free. As for equipment, we have 3 new German Heidelberg four-color printing machines, 10 sets of automatic winding machine, 5 sets of automatic butt welding machine, 16 sets of CNC laminating machine, 7 sets of automatic die cutter, and advanced wafer fabrication equipment as well as series of high-end detection machines, which provide comprehensive warranties for you.

"Quality first, the quantity will be reached", this is our slogan ever since the company's establishment.

High productivity of quality products and fast lead times will ensure satisfaction of customers with each delivery.

Name: Judy Zhu

Skype:sakurazhu

Phone No.: +86-13823680292

Tel: +86-755-29966288    Fax:+86-755-29933288

Company: ShenZhen Liangbida Technology Co.,Ltd

Address: 1.2.3/F,Liangbida Building,Hangcheng Hexi Industrial Zone ,Qianjin Second Road NO.135,Baoan District,Shenzhen,China
