Help CenterLABORATORY CELL CULTURE BIOREACTOR
Related Products
-
Microcarrier Cell Culture BioreactorUS$ 5,000 - 150,000MOQ: 1 Unit -
Cellpower 08 Series Cell Culture BioreactorUS$ 10,000 - 300,000MOQ: 1 Unit
-
Cell Culture BioreactorUS$ 10,000 - 300,000MOQ: 1 Unit
-
DF-BED (FIXED-FLUIDIZED BED) FIBER DISK CELL CULTURE BIOREACTOR -STAINLESS STEEL TYPEUS$ 10,000 - 50,000MOQ: 1 Unit
-
MICROCARRIER CELL CULTURE BIOREACTORUS$ 10,000 - 50,000MOQ: 1 Unit

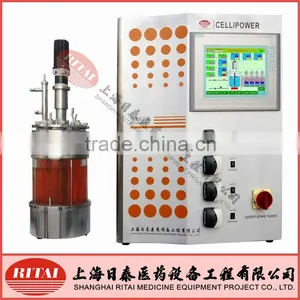

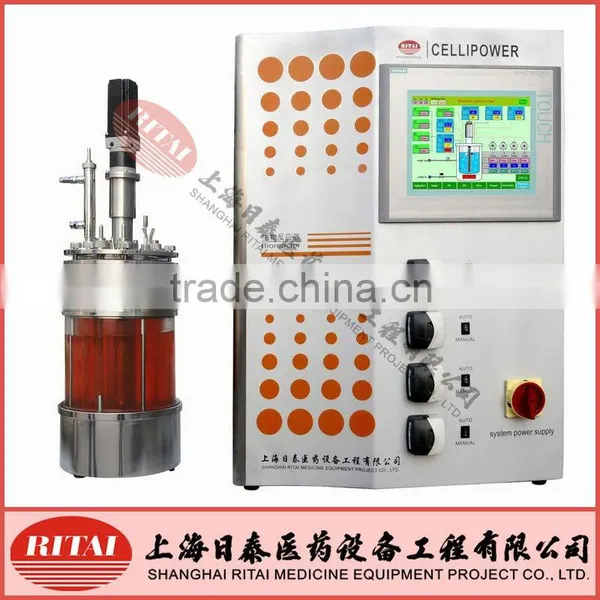

Shanghai RITAI introduces a new generation of microcarrier Cell Culture Bioreactors. We adopt centrifugal lifting type Agitator, which has features of low shearing force, rapid solution circulation , shorter mixing time, and ability of linear scale up. And we adopt new type of aeration tube, which has features of foam free deep aeration, oxygen Transfer Rate (Kla between 4-8) satisfy.. Moreover, we also adopt unique decanting column, which has features of Simple structure, stable and reliable, Perfusion rate higher than 5 times of the working volume/per day, a self cleaning function and of features of liquid level being automatically controlled
| Model | CELLIPOWER08 SYSTEM | ||||||
| Working volume | 5L,10L,15L | ||||||
| Filling volume | 65-80% | ||||||
| Material | Special type of magnetic silicone glass , which can resist temp. and pressure. Wetted parts are SS316L, and others is SS304. |
||||||
| Stainless steel part finish | inside surface is 0.28-0.6μm by mechanical polishing, ( passivation or electropolish are optional) outside surface is 0.4-0.8μm by satin finish. |
||||||
| Pressure | ATM (atmospheric pressure) | ||||||
| Agitation | 11. Fermentor use servo motor mechanical agitator , single mechanical seal 3.speed range:50-200rpm 4. Centrifugal lifting type agitator |
||||||
| Equips of vessel | 1.using alcohol flame inoculation 2.electrical heater 3.PH,DO, temp. sensor foam and level probe port, etc. |
||||||
| construction | bench-top One fermentor vessel with one control system (simens PLC and HMI) |
||||||
| Operating panel | Chinese and English version | ||||||
| Main components and controls of system | |||||||
| PH | 1.On-line check and measure, and digitization fully automatic control; 2.PH, CO2 and base gang control. Mass flow meter automatically adjusting CO2, peristaltic pump automatically adjusting base. 3.Control range 2-12pH, measure precision±0.01 pH, control precision±0.1 pH; 4. It has auto alarm function. 5.pH sensor and signal transmission line, mettler Toledo |
||||||
| DO | 1.On-line check and measure; digital display. 2.Range 0-200%, precision ±1%; 3.It has auto alarm function; 4.DO sensor and signal transmission line, mettler Toledo |
||||||
| Feed controlperfusion | 1.Automatically control and automatically alarm; 2.peristaltic pump automatically feeding and perfusion |
||||||
| Temp. control | 1.PID fully digitization signal processing, digitization control settings 2.Measure range 0-150°C, control range 15-45°C,control precision±0.2°C 3.Pt 100Ωtemp. Sensor 4.system with electrical heater to control the temp inside vessel |
||||||
| Rotate speed | 1.Automatically control , with auto alarm function 2.servo frequency converter to adjust the speed. |
||||||
| Air flow | Automatically adjusting with massflow meter | ||||||
| sterilization | Should sent to autoclave for sterilization | ||||||
| Control | Siemens PLC, and Siemens 10.4” LCD touch screen(HMI) and RITAI program | ||||||
| PC | 1.PC with kingview software for recording function (optional) 2.PC with simens remote control and kingview recording function (optional) 3.printer (optional) |
||||||
Packaging: wooden case
Shipping: by air or by sea
We offer design, customization, manufacture, installation, and maintenance services, etc.
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
