Help CenterISO 18000-6C Gen2 Protocol UHF RFID Card With Alien Higgs 3 Chip RFID Card
Related Products
-
High Quality Door Card ManufacturerUS$ 0.13 - 0.89MOQ: 500 Pieces -
Large Capacity Mifare Desfire Ev2 Card, Mifare Desfire Ev1 2K Card,13.56Mhz Rfid Card Maker LBD AMY05 2016US$ 0.08 - 0.09MOQ: 100 Pieces
-
Competitive Price Chip Card PVC Card With Chip Manufacturer From ChinaUS$ 0.25 - 0.5MOQ: 500 Pieces
-
Competitive Price Voter ID Card Format New Custom Printing National ID Card Bangladesh Election Commission ManufacturerUS$ 0.4 - 0.6MOQ: 500 Pieces
-
China 125KHz T5577 Thick CardsUS$ 0.03 - 0.54MOQ: 500 Pieces
Specifications
Alien Higgs-3 card1.Chip:Alien Higgs-3
2.Standard:ISO18000-6C
3.Size:85.5*54mm
4.Frequency:860-960MHZ
ISO 18000-6C Gen2 protocol UHF RFID Card with Alien Higgs 3 chip RFID card
Specification about UHF H3 cards:
Standard: ISO 18000-6C, EPC Class1 Gen2 or ISO/IEC 18000-6B
Operate Frequency : 860 ~ 960MHz
Reading Distance :5-8Meter Depending on reader power and antenna
Dimension :85.6 x 54 x 0.82mm CR80
Material :PVC / PET / PET-G
Housing: Lamination
Resistance :Common indoor environment, water proof
Thickness :<0.84mm
Data Retention: 10 years
Reading Distance: 10~16M stable reading(depending on the reader design)
Write Endurance(cycles):>100000
Technical features of UHF H3 chips:
|
1. Chip Type:
|
Alien H2/H3 |
2. Main Features |
EPC Class1 Gen2/ISO 18000-6C Meet small form factor requirement Operated Frequencies 860-960MHz Passive 240 bits EPC Number 512 bit User Memory |
|
3. RF Features
|
Operated Frequencies 860-960MHz Mode Of Operated Passive(battery free)
|
|
4. Protocol: 5. Memory: |
EPC Class1 Gen2 / 18000-6C 240 bits EPC Number |
6. Inlay Material |
Antenna: AL,15μm±3μm UHF IC: Silicon, 150μm±10μm Substrate: PET, 55μm±5μm |
7.Environmental Specification |
Shelf Life: 5 Years Recommended: -25c to +50c Storage Condition: 20% to 90%RH Operating Temp: -40c to +65c
|
8.Read/write Times: |
100000 times
|
9. Reading Range: |
3m-10m (according to the design of the antenna or reader)
|
10. Application: |
Public Transportation, Access management, E-tickets, Logistic and supply management, Production manufacturing |

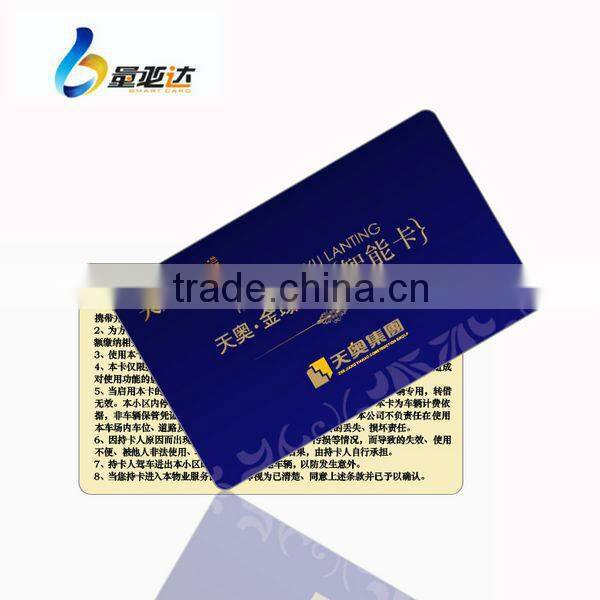

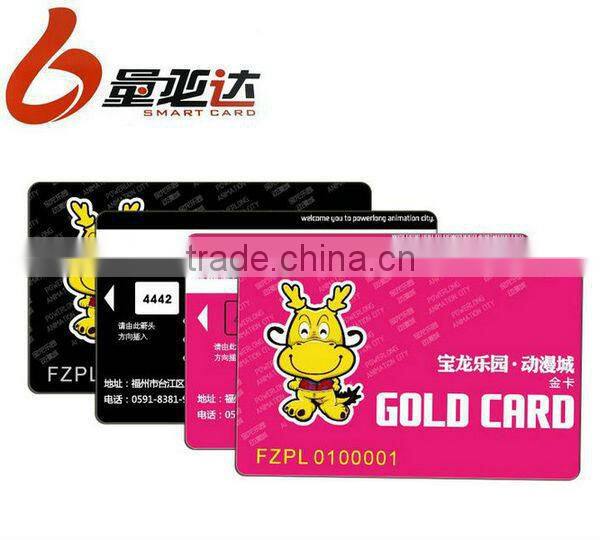

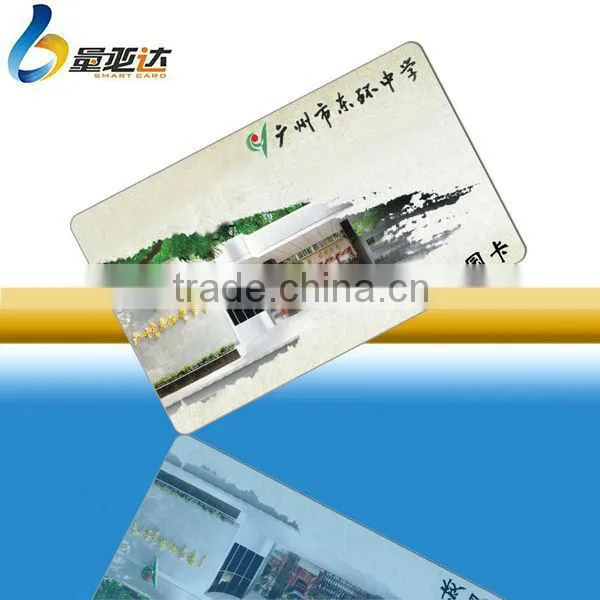

Product show:

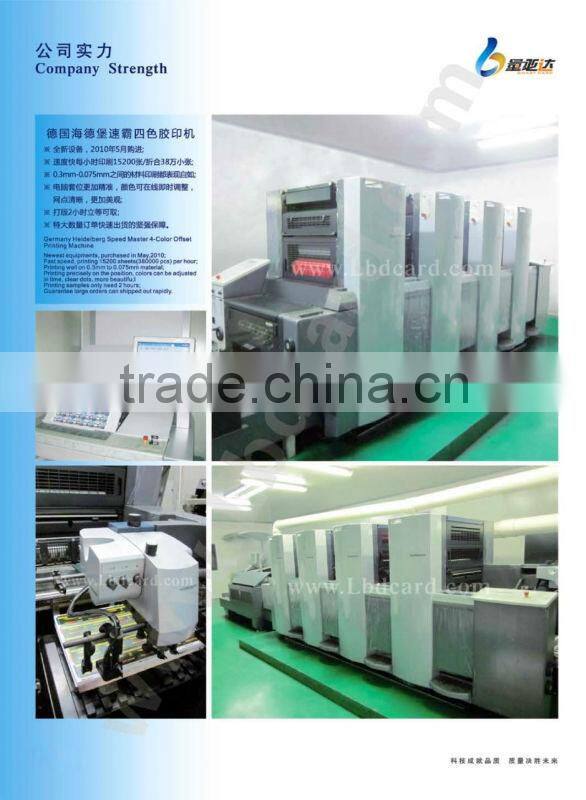

Our factory and building:
Welcome to our factory,customers' satisfaction is our duty and mission.Any questions please feel free to let us know,we will reply you ASAP.
About us:
Shenzhen LBD Smart Card Co., Ltd. is a professional high-tech enterprise producing and selling contact and contactless smart cards. The company is committed to research and development of smart card products currently covered by the low-frequency, high frequency and UHF series. Our chip cards products of M1, ID, T5577, I Code2, CPU, 24C series are widely used in transportation, finance, telecommunications, post, telecommunications, taxation, health care, insurance and other fields, including ultra-thin card (≤ 0.48mm) successfully applied to the metro project at home and abroad.
Our competitive facility:
The production workshop is 100,000-grade dust-free. As for equipment, we have 3 new German Heidelberg four-color printing machines, 10 sets of automatic winding machine, 5 sets of automatic butt welding machine, 16 sets of CNC laminating machine, 7 sets of automatic die cutter, and advanced wafer fabrication equipment as well as series of high-end detection machines, which provide comprehensive warranties for you.
"Quality first, the quantity will be reached", this is our slogan ever since the company's establishment.
High productivity of quality products and fast lead times will ensure satisfaction of customers with each delivery
