Specifications
4442 chip card with signature panel1.Chip:SLE5542/4442,sle5528/4428,ATMEL serial
2.Protocal:ISO7816
3.Size:85.5*54mm
4.Mat

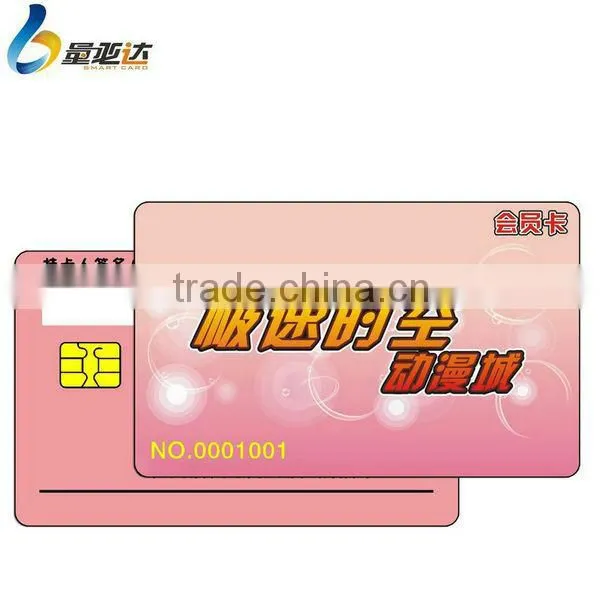

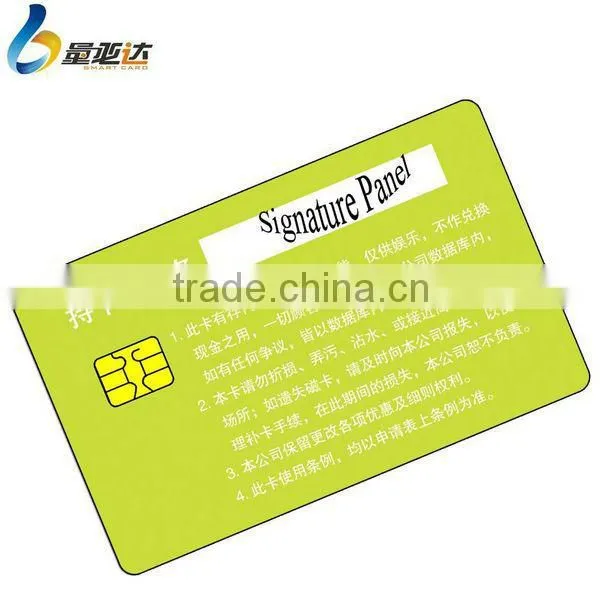

4442 chip card with signature panel
Technical features of SLE5542 chips:
256bit encryption card,can read data,write data and password,protect data and write password.
ISO 7816 Compliant pad locations
256*8 bit EEPROM organization
byte-wise addressing
Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)
32*1 bit organization of protection memory
2-wire link protocol
Answer to reset according to ISO standard 7816-3
Programming time 2.5mS per byte for both erasing and writing
Minimum of 10000 write/erase cycles
Data retention > 10 years
Programmable Security Code (PSC)
Data write only after correct 3-byte PSC
Key features of SLE5542contact cards:
- Dimensions: CR80 85.60 x 53.98mm
- Thickness: 0.84mm
- Material: PVC, PET
- Card Surface: Matte/ gloss finish
- Housing: Lamination
- Operating Temperature: -20 to +60°C
- Storage Temperature: -20 to +65°C
Available Crafts of SLE5542 contact cards :
A. Offset or silk printing (metallic printing)
B. Scratch panel
C. Sequential number printing
D. Barcode
E. Logo printing, embossing,
F. Signature Panel: Ink signature panel, hot stamping signature panel
G. Printing Method: Off-set print, silk-screen print
H. Invisible UV Printing
I. Thermal Stamp
J. Magnetic Stripe Option: 300oe, 2750oe, 4000oe
Typical Application of SLE5542 contact cards:
Member score cards,Prepaid cards of interal bar,Medical insurance cards,Electronic door locks,prepaid water and electricity metering cards and so on
We are professional manufacturer of Smart cards in Shenzhen,china:
| Factory | Model number | Specification |
| SILMENS | SLE5542(4442) | 256bit encryption card,can read data,write data and password,protect data and write password. |
| ISO 7816 Compliant pad locations | ||
| 256*8 bit EEPROM organization | ||
| byte-wise addressing | ||
| Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31) | ||
| 32*1 bit organization of protection memory | ||
| 2-wire link protocol | ||
| Answer to reset according to ISO standard 7816-3 | ||
| Programming time 2.5mS per byte for both erasing and writing | ||
| Minimum of 10000 write/erase cycles | ||
| Data retention > 10 years | ||
| Programmable Security Code (PSC) | ||
| Data write only after correct 3-byte PSC | ||
| SLE5528(4428) | ISO 7816 Compliant pad locations | |
| 1024*8 bit EEPROM organization | ||
| byte-wise addressing | ||
| Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31) | ||
| 32*1 bit organization of protection memory | ||
| 2-wire link protocol | ||
| Answer to reset according to ISO standard 7816-3 | ||
| Programming time 2.5mS per byte for both erasing and writing | ||
| Minimum of 10000 write/erase cycles | ||
| Data retention > 10 years | ||
| Programmable Security Code (PSC) | ||
| Data write only after correct 3-byte PSC | ||
| Shanghai Fudan | FM4442 | 256bit encryption card,can read data,write data and password,protect data and write password.(compatible SLE4442) |
| FM24C16 | 16Kbit | |
| FM4428 | 1024bit encryption card,can read data,write data and password,protect data and password operation.(compatible SLE4428) | |
| Shanghai Beiling | BL7442 | 256bit |
| BL24C04 | 4Kbit | |
| ISSI | ISSI4442 | 256bit |
| ISSI24C16 | 16Kbit | |
| ISSI4428 | 8Kbit | |
| ATMEL | AT24C01 | 1Kbit(stop production) |
| AT24C02 | 2Kbit | |
| AT24C04 | 4Kbit | |
| AT24C16 | 16Kbit | |
| AT88SC102 | 1Kbit |
Contact IC Card--SILMENS and Fudan Features:
SLE4428 Contact card IC feature |
- SLE5542 Intelligent 256-Byte EEPROM - SLE5528 Intelligent 1K-Byte EEPROM - SLE4428 Intelligent 1K-Byte EEPROM - Write Protection function on unique manufacturer code to identification of application. |
SLE4428 Contact card Key Feature |
- Dimensions: CR80 85.60 x 53.98mm |
Printing Option |
- Full color offset printing - Silk-screen printing - Silver/Gold silk-screen printing background |
Additional crafts |
- Magnetic Stripe Option: 300oe, 2750oe, 4000oe |
Application |
- hotel key card, membership management |
Product show:
Our factory and building:
Welcome to our factory,customers' satisfaction is our duty and mission.Any questions please feel free to let us know,we will reply you ASAP.
About us:
Shenzhen LBD Smart Card Co., Ltd. is a professional high-tech enterprise producing and selling contact and contactless smart cards. The company is committed to research and development of smart card products currently covered by the low-frequency, high frequency and UHF series. Our chip cards products of M1, ID, T5577, I Code2, CPU, 24C series are widely used in transportation, finance, telecommunications, post, telecommunications, taxation, health care, insurance and other fields, including ultra-thin card (≤ 0.48mm) successfully applied to the metro project at home and abroad.
Our competitive facility:
The production workshop is 100,000-grade dust-free. As for equipment, we have 3 new German Heidelberg four-color printing machines, 10 sets of automatic winding machine, 5 sets of automatic butt welding machine, 16 sets of CNC laminating machine, 7 sets of automatic die cutter, and advanced wafer fabrication equipment as well as series of high-end detection machines, which provide comprehensive warranties for you.
"Quality first, the quantity will be reached", this is our slogan ever since the company's establishment.
High productivity of quality products and fast lead times will ensure satisfaction of customers with each delivery
