Original Chip Low Frequency Access Control PVC ID Card Sample Design with T5577 Chips

Specifications

1.Chip: EM series, T5577,Hitag series
2.Protocal:ISO11784
3.Size:85.5*54mm
4.Material:PVC ,PET,ABS
5.ISO/SGS/ROHS

Original Chip Low Frequency Access Control PVC ID Card Sample Design with T5577 Chips





Contactless card Access Control PVC ID Card



Contactless card, also called proximity card, with the chip of low frequency 125KHz, high frequency 13.56MHz, or ultra-high frequency 860~960MHz, achieves contactless transmission of data with electromagnetic waves transmitting data between the RFID chips and reading devices.With customers of more than 40 countries, Liangbida Smart-Card can offer you various RFID products with superb quality, cost-effective price and fast delivery!We also welcome our customers to consign chips to us for final card/label production in China.

•       A full range of contactless card products
•       Superb quality, cost-effective price & good delivery
•       Diverse personalization options
•         Professional technical support
•       Perfect management system & dynamic work team
•       Reliable partner from China

T5557/T5567 Access Control PVC ID Card Multifunctional 330-bit Read/Write RF Identification IC



T5557,T5567 is a contactless R/W identification IC for applications in 125KHz frequency range. The antenna and chip together form a transponder or tag. The on-chip 330-bit EEPROM (10 blocks, 33 bits each) can be read and written block-wise from a reader. Block 0 is reserved for setting the operation modes of the T5557/67 tag. Block 7 may contain password to prevent unauthorized writing. Data is transmitted from the IDIC using load modulation.



Features for Access Control PVC ID Card



•Contactless Read/Write Data Transmission



• Radio Frequency fRF from 100 kHz to 150 kHz



• e5550, e5551, T5557 Binary Compatible



• Extended Mode



• Small Size, Configurable for ISO/IEC 11784/785 Compatibility



• 75 pF On-chip Resonant Capacitor (Mask Option)



• 7 × 32-bit EEPROM Data Memory Including 32-bit Password



• Separate 64-bit Memory for Traceability Data



• 32-bit Configuration Register in EEPROM to Setup:



–Data Rate for Access Control PVC ID Card



• RF/2 to RF/128, Binary Selectable, or



• Fixed e5550 Data Rates



–Modulation/Coding for Access Control PVC ID Card



• FSK, PSK, Manchester, Bi-phase, NRZ



– Other Options for Access Control PVC ID Card



• Password Mode



• Max Block Feature



•Answer-On-Request (AOR) Mode



• Inverse Data Output



• Direct Access Mode



• Sequence Terminator(s)



• Write Protection (Through Lock-bit per Block)



• Fast Write Method (5 Kbps versus 2 Kbps)



• OTP Functionality



• POR Delay up to 67 ms



Access Control PVC ID Card Applications



Public Transport :subway tickets, bus rfid ticket
Access Control: payment membership card, time attendance, game ticket…
Logistics, hotel management, transportation, library and campus, Parking lot system and Consuming system, anti-fake label, warehous management, productioin line….Access Control   , Cashless Vending, Loyalty & Discount Cards
Leisure card,Toll Card, Student/Campus Card/School Card, Identity Card, etc



Specifications for Access Control PVC ID Card



1. Products type:	PVC /IC card/ID card
2. Material:	PVC /PET/PC/PETF
3. Size:	ISO CR80 Standard: 3.38"L*2.125"W/ 85.5*54mm or on demand
4. Thickness:	0.8~1.2mm
5.Chip Available:	EM4200, EM4205, EM4305, EM4450,
	TK4100
	T5567/T5577
	Hitag1/2, HTS256/2048,Hitag uR064
6.Environmental Specification	Shelf Life 5 Years
	Recommended: -25 degree to +50 degree
	Storage Condition: 20% to 90%RH
	Operating Temp: -40 degree to +65 degree
7. Available crafts:	4 color offset printing, magnetic stripe, series number punch, hole punched, UV Printing etc
8. Applications:	Staff Card, access control etc.
9. Package details(for standard size):	200pcs/box, 10boxes/carton
	box size: 6*9.3*22.5cm
	carton size: 52.5*25.5*15cm
10. Standard size card weights	1,000pcs 7KG
11. Certificate:	ISO 9001-2008, SGS



How to order?



1)      Provide your specific requirements and artwork with format of PDF or AI;

2)      Quotation;

3)      Confirm to place the order;

4)      Our designer will make the bleed on your artwork or do a design according to your requirements;

5)      Send you the confirmation draft and a Proforma Invoice;

6)      Signed the confirmation draft and send it back, then make the payment;

7)      Start production after confirmation and payment;

8)      Production , 7 working days for quantity under 50,000pcs (no special crafts);

9)      Delivery by DHL / UPS / FedEx etc. according to your shipping address.



Why do you choose us?



The Largest and Cleanest Standard Factory you can find on Alibaba!



&  10 years experience in RFID / Smart Card field.

&  Long term supplier of South Korea’s Metro Cards.

&  6000m² of dust-free workshop and best Heidelberg pinters to ensure you Short Lead Timeand High Quality.



Lead time

1,000 – 50,000pcs………around 5-8 working days

60,000 – 100,000pcs …..around 10-12 working days

150,000 – 500,000pcs….around 13-15 working days



Monthly productivity: 8 million cards  (The only one with this capability on Alibaba)

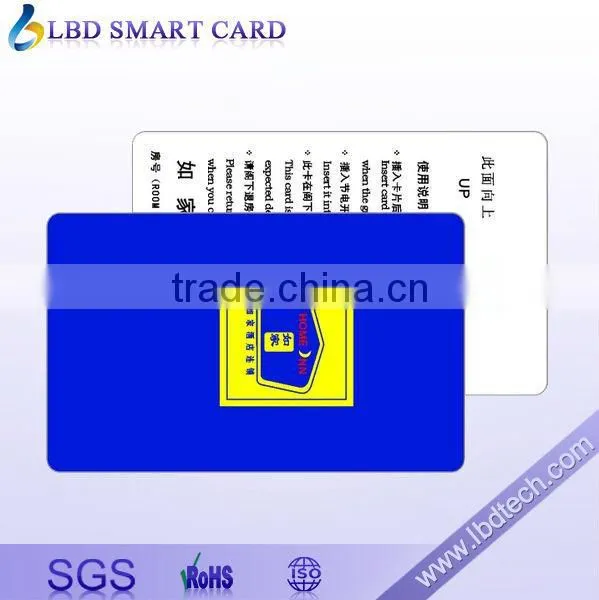

Access Control PVC ID Card Products show



About us:

Shenzhen LBD Smart Card Co., Ltd. is a professional high-tech enterprise producing and selling contact and contactless smart cards. The company is committed to research and development of smart card products currently covered by the low-frequency, high frequency and UHF series. Our chip cards products of M1, ID, T5577, I Code2, CPU, 24C series are widely used in transportation, finance, telecommunications, post, telecommunications, taxation, health care, insurance and other fields, including ultra-thin card (≤ 0.48mm) successfully applied to the metro project at home and abroad.



Our competitive facility:

The production workshop is 100,000-grade dust-free. As for equipment, we have 3 new German Heidelberg four-color printing machines, 10 sets of automatic winding machine, 5 sets of automatic butt welding machine, 16 sets of CNC laminating machine, 7 sets of automatic die cutter, and advanced wafer fabrication equipment as well as series of high-end detection machines, which provide comprehensive warranties for you.



"Quality first, the quantity will be reached", this is our slogan ever since the company's establishment.
