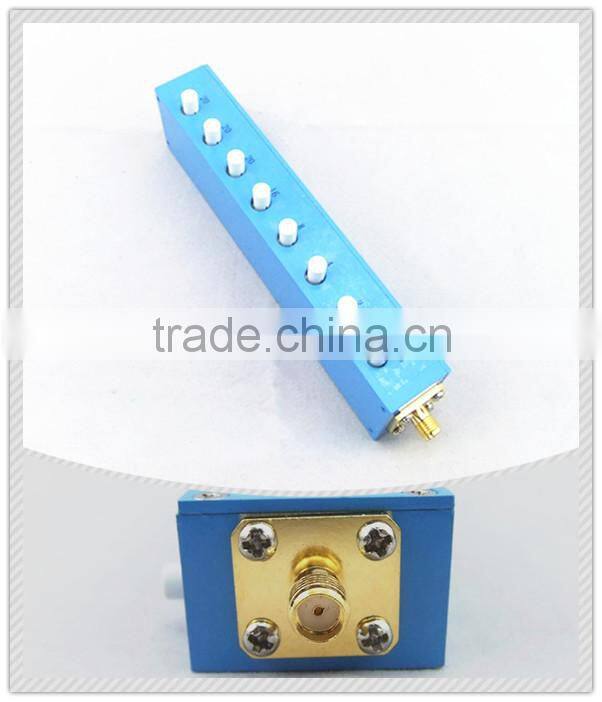

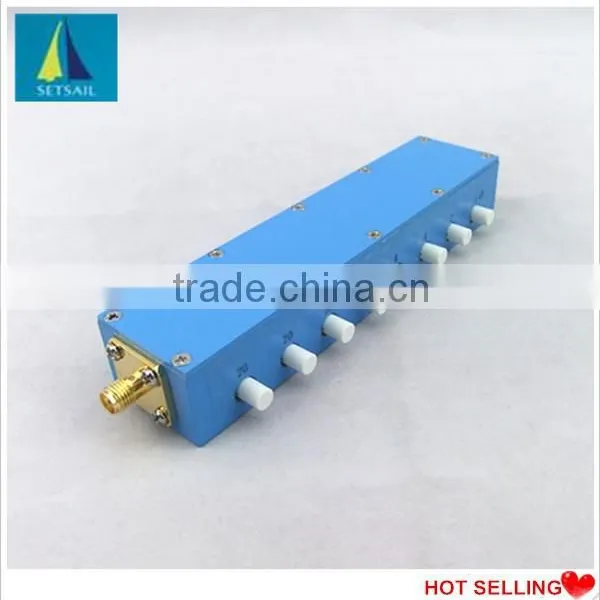

SMA type 0-90dB 5 Wattes pushbutton variable step attenuator China supplier
Applications:
1.Pushbutton Step attenuators can be used to adjust the power signal level by step within certain
frequency range without power off, they can also be used to adjust the test system's power level
as inset attenuators, it is small with high accuracy and high stability etc.
2.GKTS serial B type pushbutton step attenuators' average power 2W, 5W, 10W,
frequency range from DC-3GHz, attenuation value 0-90dB or 0-70dB by 0.1dB / 1dB/ 10dB step.
Technical specifications:
Product Name: Pushbutton Step Attenuator
Frequency Range: DC-2.5GHz
Attenuation Range: 0-90dB in 1dB steps
Attenuation Step: 1,2,4,8,16,20,20,20dB
Max VSWR: 1.40
Insertion Loss: ≤ 3.5dB
NOMINAL IMPEDANCE: 50/75ohm
AVERAGE POWER: 2/5/10W
PEAK POWER: 100W (5μs pulse width with 2% duty cycle )
Connector Type: N,SMA,BNC,F
Product description:
Each piece in opp bag, each bag in small white inner box, and then the small boxes in standard
exporting carton. the products will be protected very well with paper cardboard and foam.
More hot selling products:
Our service
1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
Warranty and return
1. All products accessories have been checked for 3 times before shipping out.
2. All products have one year warranty. If there is no man-made problems,
we will replace or repair for you.
