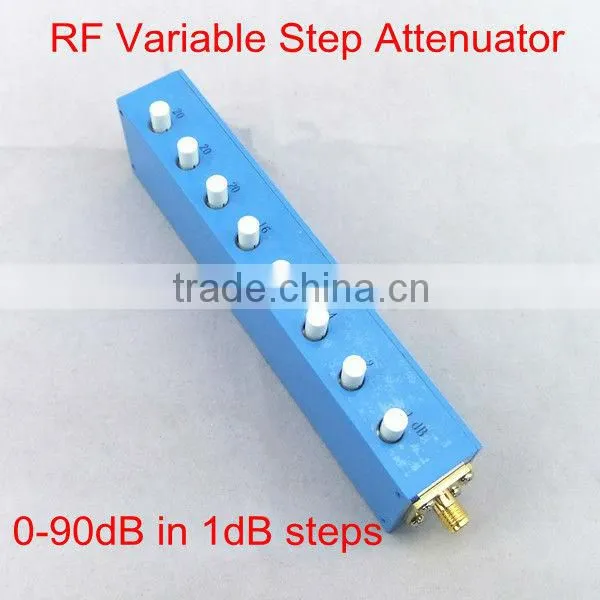

Help Center0-90dB 2 Wattes SMA RF Step Variable Attenuator
Related Products
-
0-90dB 2/5/10Wattes RF Step Variable AttenuatorNegotiableMOQ: 1 Piece -
RF 10dB/90dB Variable Rotary Step Attenuator (2W,SMA)NegotiableMOQ: 5 Pieces
-
DC-3GHz SMA Female RF 0-90dB 2watt Rotary Attenuator VariableNegotiableMOQ: 5 Pieces
-
SMA Female RF 0-10dB/90dB Variable Rotary Step AttenuatorNegotiableMOQ: 5 Pieces
-
SMA 0-10dB/90dB Rotary Step RF Variable AttenuatorNegotiableMOQ: 5 Pieces
Specifications
variable step attenuatorManufacturer of Attenuator with 8 years.
Attenuation range:15db30db60db90db
Frequency Range:DC-3GH
Techanical Specifications of RF Coaxial Attenuator:
Model Number |
Frequency Range (GHz) |
Attenuation Range (dB) |
Attenuation Step (dB) |
Attenuation Accuracy(dB) |
Max VSWR |
Insertion Loss(dB) |
|
2W/5W |
10W |
||||||
GKTSXX-8-90-1-B |
DC-1 |
0-90dB in 1dB steps |
1,2,4,8,16,20,20,20 |
±0.5dB 0-10dB ±0.8dB 10-50dB ±3%dB ≥50dB |
1.40 |
≤2.0 |
|
GKTSXX-8-90-2.5-B |
DC-2.5 |
±0.8dB 0-10dB ±1.25dB 10-50dB ±3%dB ≥50dB |
≤3.5 |
||||
GKTSXX-8-90-3-B |
DC-3 |
±0.8dB 0-10dB ±2dB 10-50dB ±4%dB ≥50dB |
1.50 |
≤3.5 |
|||
MECHANICAL SPECIFICATIONS | |
Connectors |
Brass Nickel Plated |
Female Pin |
Beryllium Copper Gold Plated |
Housing |
Aluminum, Blue Spray Painting |
Temp Range |
-20°C~+85°C |
Dimensions |
162×35.5×20mm |
Weight |
170g |
Note:All the specifications can be changed as customer's requirment. Our company has a variety of RF Coaxial Attenuator to choose.
Applications:
Pushbutton Step attenuators can be used to adjust the power signal level by step within certain frequency range without power off, they can also be used to adjust the test system's power level as inset attenuators, it is small with high accuracy and high stability etc.
GKTS serial B type pushbutton step attenuators' average power 2W, 5W, 10W, frequency range from DC-3GHz, attenuation value 0-90dB by 0.1dB / 1dB/ 10dB step.
