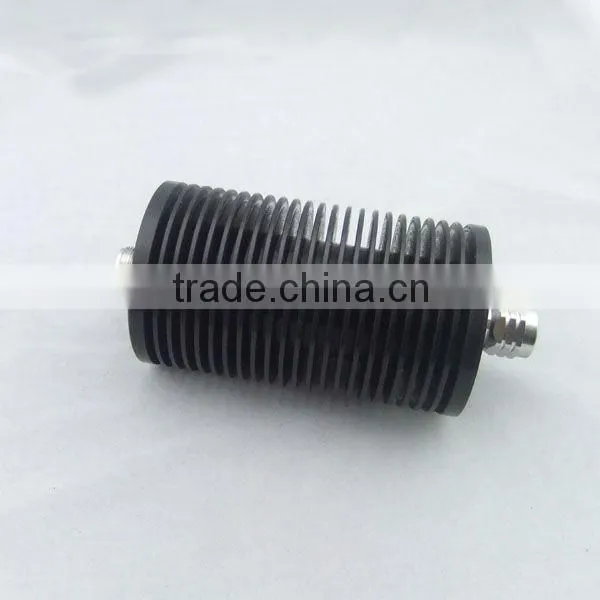

100W RF Coxial Attenuator DC-3.0GHz
- 300 Piece / Pieces per Month
- Shanghai/Ningbo/Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Anhui, China | Brand Name: | SETSAIL | Model Number: | YF-ATT-3G-(3-60)-100W-NFM |
Packaging Details
standard exporting cartons for 100w attenuator
Product Description
Specifications
1,Manufacturer of coxial attenuator with 10years.2,specialized engineers and professional workers.
3,best service and price
Technical Specifications of 100w attenuator:
Model | YF-ATT-3G-(3-60)-100W-DIN |
Frequency(GHz) | DC-3.0 |
Attenuation(dB) | 3-6,10,20,30,40,50,60 |
Tolerance(dB) | ±0.5, ±0.8, ±1.0, ±1.0, ±2.5, ±3.0 |
VSWR | ≤1.2:1 |
Power Capacity (W) | 100 |
Impedance(Ohm) | 50 |
Connector | N(M-F) |
Connector Material | Brass |
Temparature(deg.) | -40-+80 |
Color | Black |
Noted:all the technical specifications can be changed as customer's requirements
Production Application:
RF Coaxial Attenuator is widely used in below fileds:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
RF Coaxial Attenuator 5W is just one of SETSAIL's RF Attenuators Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Attenuator. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Packing Details:
each piece in opp bag, each bag in small white inner box, and then the small boxes in standard exporting carton. the products will be protected very well with paper cardboard and foam.

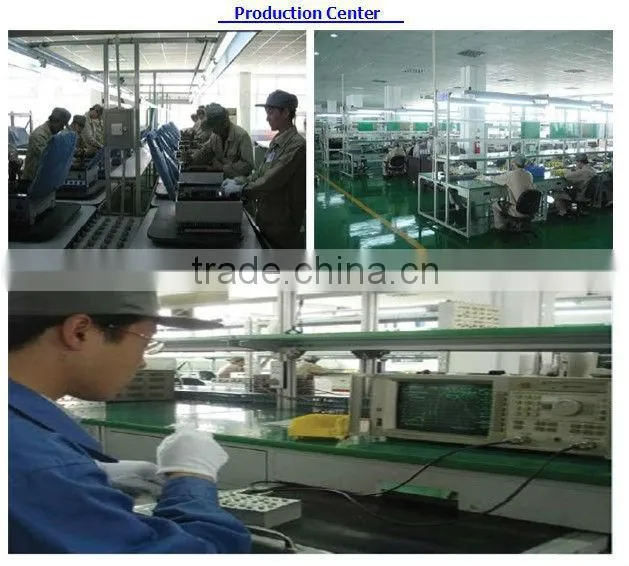

Company Profile
Hefei Setsail Telecom,Co,Ltd (established in 2002) is an Professional
Manufacturer of RF Passive Components:Power Spliter, Directional
Coupler, 3dB Hybrid Coupler, Combiner, Dummy Load/Termination, Attenuator, Duplexer, Isolator, Cable, Connector and Antenna.
1. Hefei Setsail Telecom,Co,Ltd is established in 2002.located in Hefei National Hi-tech Industry Development Zone.We focus on Microwave Technology Research,RF,Microwave Components and System Industry Development.Our products are widely used in communication network,satellite orientation,radar and military field.We offer a highly diversified product line that serves top tier telecom,satellite companies.
2. Products include 10 series and 100 designs with their own property right and authority approval.The products line have Hybrid Coupler,Power Splitter,Directional Coupler ,Coaxial Attenuator,Coaxial Termination,Cable
Assembly,Connector,Arrester,Filter,Duplexer,Combiner and so on .Customer designs (OEM/ODM) are also available.
3. Headquarters of Setsail is located at hi-tech developing district in Hefei Anhui,includeing two factories, At the same time,Setsail's market network has been all over the world.
4. Setsail company has a tremendous fellowship that is compased of many high-level technologists .And also has established a research institution which cooperating with some famous universities.(University of Science and Technology of China.)
5.All the staffs are filled with confidence ,attending the market cpmpetition and offering clients the exquisite technology,reasonable price,excellent quality and best service.
