Specifications
Automatic Single Sliding Table Precise Four-column Homemade Hydraulic Press1.MICOM control
2.Saving cost
3.High efficiency
Description:
40T Automatic Single Sliding Table Precise Four-column Homemade Hydraulic Press
USE AND CHARACTER:
1. The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by die cutter. For example: such industries as plastics packing, pearl cotton packaging, rubber, such as EVA floor, PVC floor, asphalt floor, plastic floor, rubber floor and printing etc.
2. Microcomputer controlled, with simple, prompt and accurate operation.
3. The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which can guarantee that the cutting depth at every cutting position is same.
4. The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees the service life and precision of machine.
6. Single-side or double-side automatic feeding system can be allocated to enhance the production efficiency of machine twice or thrice.
7. Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
8. Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.
Optional:
a. Single-side and double-side automatic feeding systems
b. Cutting board micro-movement device
c. Die cutter pneumatic clamp device
TECHNICAL SPECIFICATION:
| Model number | XCLP3-400 | XCLP3-500 | XCLP3-600 | XCLP3-800 | XCLP3-1000 | XCLP3-1500 | XCLP3-2000 |
| Maximum cutting force | 400KN | 500KN | 600KN | 800KN | 1000KN | 1500KN | 2000KN |
| Distance between the upper platen and the working table surface | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Cutting area | 1600×610mm 1220×610mm | 1600×810mm 1220×810mm | 1600×810mm 1220×810mm | 1600×810mm 1220×810mm | 1600×810mm 1220×810mm | 1600×810mm 1220×810mm | 1600×810mm 1220×810mm |
| Main motor power | 3kw | 4kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 11kw |
Note:
Cutting area: Adopt ordinary cold steel welding die cutter, adopt laser wood die cutter. The special specification can be made to order.
Specificationcomplete, the specialspecificationcan be made to order according to your requirements.

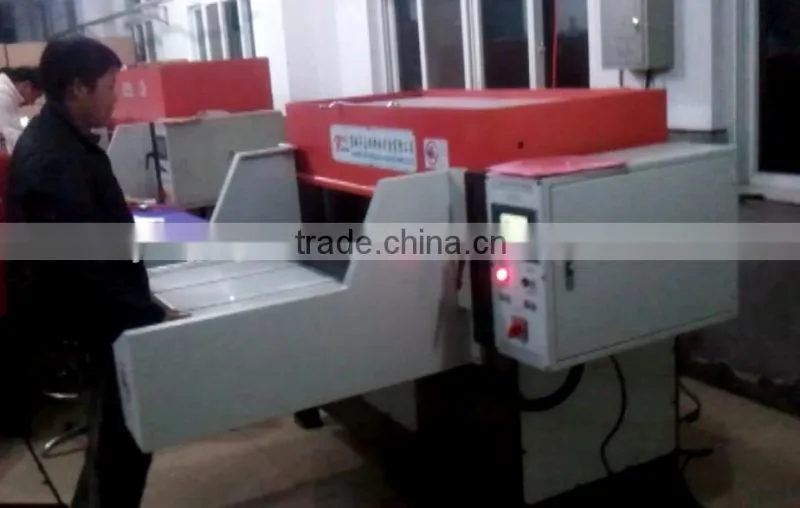

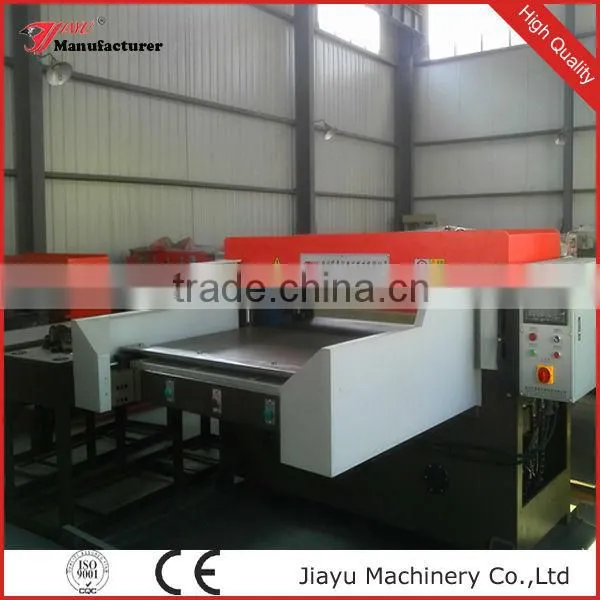

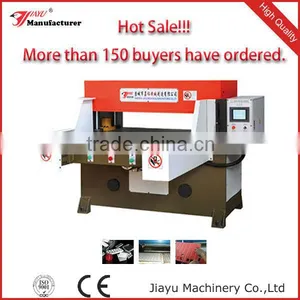

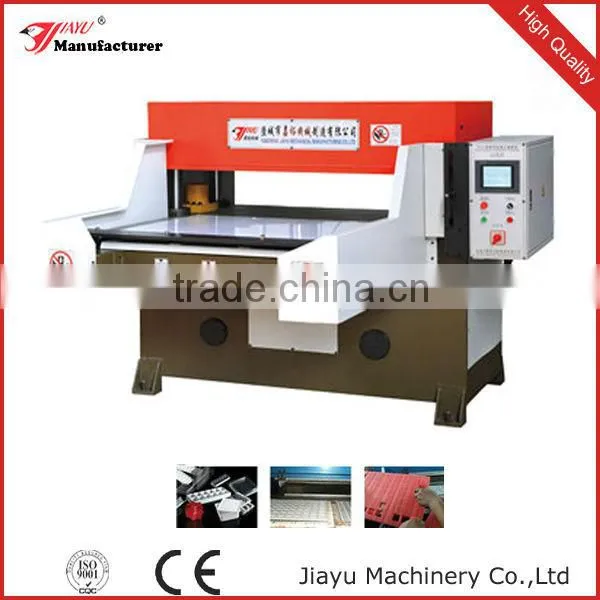

Product Pictures:
Contact Information:
Welcom to visit our factory!
We'll offer you the quotation as soon as possible once receive your inquiry,so please don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
Factory direct sale; Guarantee Period one year.
