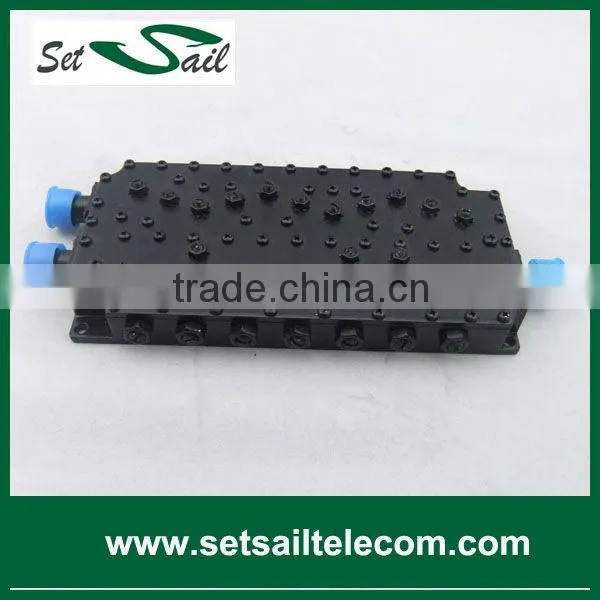

Help Center800-960MHz/1710-2170MHz,CDMA2000/PHS ,RF2 WAY HYBRID COMBINER
Related Products
-
GSM885-954MHz/TDA1880-1920MHz RF 2 Way/Band Hybrid Combiner/DiplexerNegotiableMOQ: 5 Pieces -
RF DCS/3G DuplexerNegotiableMOQ: 1 Piece
-
GSM&DCS/3G 2 BAND Combiner(diplexer), Passive ComponentNegotiableMOQ: 1 Piece
-
800-2700MHz, 7/16, DIN-female, 3 in 1 Out CombinerUS$ 1 - 200MOQ: 1 Piece
-
800-2700MHz, 7/16, DIN-female, 3:1 RF Passive CombinerUS$ 1 - 200MOQ: 1 Piece
Specifications
1,Manufacturer of combiner with 10years.2,specialized engineers and professional workers.
3,best service and price
TECHNICAL SPECIFICATIONS FOR COMBINER
Model |
YFTX-RFCOM-01N |
|
CH1:CDMA2000 |
CH2:PHS |
|
Frequency(MHz) |
800-960 |
1710-2170 |
Insertion Loss(dB) |
≤0.4dB |
≤0.4dB |
Passband Ripple(dB) |
≤0.3dB |
≤0.3dB |
Outband Rejection(dB) |
≥80@CH1 |
≥80@CH2 |
VSWR |
≤1.25 |
|
IM3 |
≤-120dBC/@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-K |
|
NOTE: All the specifications of combiner can be changed as customer's requirment.
Introduction and Applications:
The combiner in communication system combine signal into one set of indoor distribution system.which
is widely used in the following fields:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Packing Details:
each piece in opp bag, each bag in small white inner box, and then the small boxes in standard
exporting carton. the products will be protected very well with paper cardboard and foam.
