King Winding Machine for Sewing Thread

King Winding Machine for Sewing Thread thumbnail-1
King Winding Machine for Sewing Thread thumbnail-2
King Winding Machine for Sewing Thread thumbnail-3
King Winding Machine for Sewing Thread thumbnail-4
King Winding Machine for Sewing Thread thumbnail-5
King Winding Machine for Sewing Thread thumbnail-6
King Winding Machine for Sewing Thread photo-1
King Winding Machine for Sewing Thread photo-2
King Winding Machine for Sewing Thread photo-3
King Winding Machine for Sewing Thread photo-4
King Winding Machine for Sewing Thread photo-5
King Winding Machine for Sewing Thread photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
sewing thread/embroidery thread winding
Automatic Grade:
Semi-Automatic
Contact Supplier Request Quote Chat Now
Xinghua Tangshi Textile Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application sewing thread/embroidery thread winding
Automatic Grade Semi-Automatic
Place of Origin Jiangsu, China
Brand Name TANGSHI
Model Number TS008O
Voltage 380V
Power(W) 1000w
Dimension(L*W*H) L2250 x W1050 x H1650 mm
Weight 600KG
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

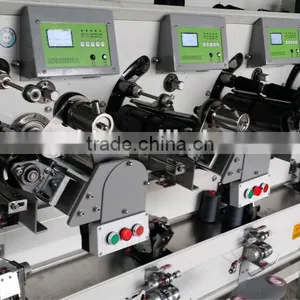

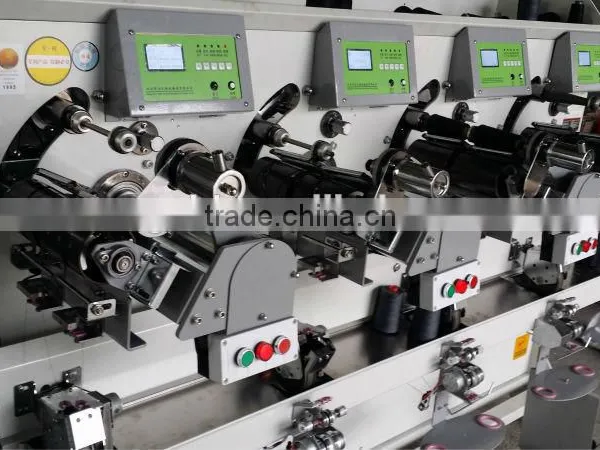

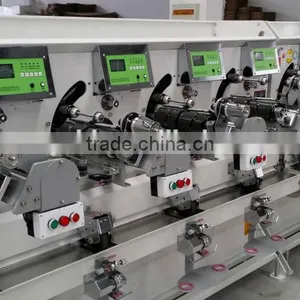

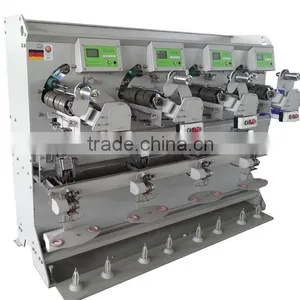

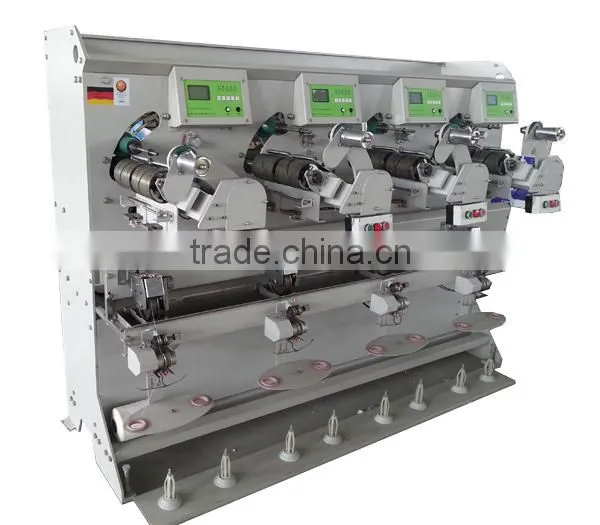

Name:TS008O King winding Machine for sewing thread
king winding machine for sewing thread king winding machine for sewing thread
Oil Device Electromagnetic tension device
king winding machine for sewing thread king winding machine for sewing thread
High speed Guider Two cone winder

king winding machine for sewing thread

king winding machine for sewing thread



king winding machine for sewing thread

king winding machine for sewing threadking winding machine for sewing thread

Machine Application:

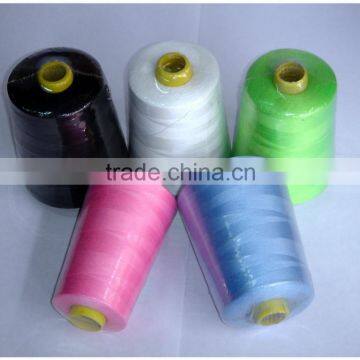

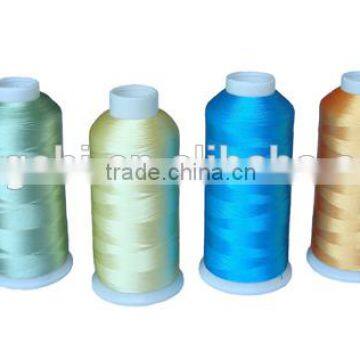

  TS008O King winding machine is applicable for winding sewing thread , embroidery thread , nylon thread ,etc. This machine features availability of computer-based separate control of each single spindle , a frequency –change slotted spool yarn guide device , an electro-magnetic tension force control system , a pump-based cycling –type oiling device , etc. characteristics of a good shape formation , high efficiency , easy operation , assured safety and reliability and broad applicability , etc..
Computer yarn-length measurement.
1. Yarn length measured by computer, accuracy +1%.
2. Yarn speed adjustable, which from 400 to 1,000 meter/per minute.
Drum thread-guidance system
1. High speed, low noise drum.
2. Drum with special hardened polish treatment, smooth & wear resist.
Automatic lubrications system.
1. Threads are being uniform lubricate, thanks to the constant yarn speed, the oiling roller speed is adjustable.
2. Release the tension from beginning to the end; it makes the winded package good appearances
3. LED display easy operation.
Circulating oil device.
1. Keep always the full level of oil to each spindle.
2. Big-scale return oil trough and oil fender to filter without pollution and oil waste.
3. One oil filter is devoiced for every oil wheel to reduce the oil slinging out.
4. One oil tank can supply for the use of 24 spindles.
5. Detachable filter, easy to clean.
Specification:

Mode
TS008O-A

TS008O-H
TS008O-Y

Con shape
Cone type

Cylinder type
Horn type

No of spindles
4

4
4

Cone for each spindle
1or 2

1or 2
1or 2

Cone angle
0°-2°20′

0°
2°20′-5°57′

Max. winding speed

1000mtrs/min

Max. winding-up Dia.

115mm

Measurement(M^3)

2250(L)×1050(W)×1650(H)mm

Pattern round number

2.5~4

Machine weight

680kg
