Best Sale on Alibabba Fishing Yarn Winding Machine/spool Winder Machine

Best Sale on Alibabba Fishing Yarn Winding Machine/spool Winder Machine photo-1
Best Sale on Alibabba Fishing Yarn Winding Machine/spool Winder Machine photo-2
Best Sale on Alibabba Fishing Yarn Winding Machine/spool Winder Machine photo-3
Best Sale on Alibabba Fishing Yarn Winding Machine/spool Winder Machine photo-4
Best Sale on Alibabba Fishing Yarn Winding Machine/spool Winder Machine photo-5
Best Sale on Alibabba Fishing Yarn Winding Machine/spool Winder Machine photo-6
US$ 8,000 - 8,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Sewing Thread winder
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Sewing Thread winder
Automatic Grade Semi-Automatic
Production Capacity 300M~1000M /per Min
Place of Origin Jiangsu, China
Brand Name TANGSHI
Model Number TS008O
Voltage 380V
Power(W) 1.2kw
Dimension(L*W*H) 2150 L x 950 W x1650 H mm
Weight 580KGS
Certification ISO9001 /CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Best Sale on Alibabba Fishing yarn winding machine/spool winder machineBest Sale on Alibabba Fishing yarn winding machine/spool winder machine



Machine Application:

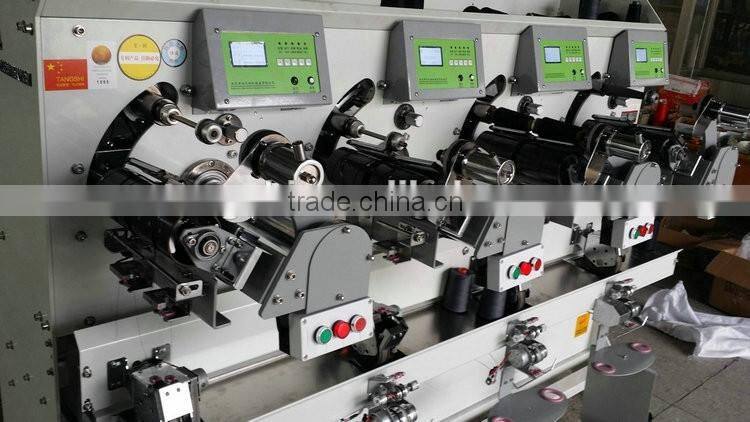

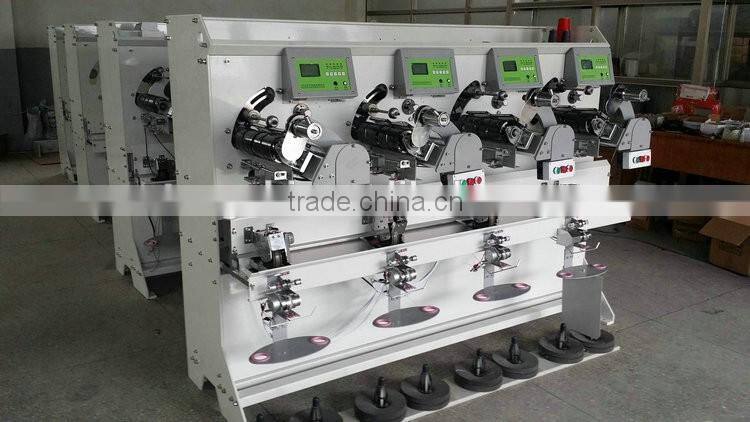

     TS008O High speed sewing thread winding machine is applicable for winding sewing thread , embroidery thread , nylon thread ,etc. This machine features availability of computer-based separate control of each single spindle , a frequency –change slotted spool yarn guide device , an electro-magnetic tension force control system , a pump-based cycling –type oiling device , etc. characteristics of a good shape formation , high efficiency , easy operation , assured safety and reliability and broad applicability , etc..



Computer yarn-length measurement.

1. Yarn length measured by computer, accuracy +1%.

2. Yarn speed adjustable, which from 400 to 1,000 meter/per minute. Drum thread-guidance system 1. High speed, low noise drum.2. Drum with special hardened polish treatment, smooth & wear resist.



Automatic lubrications system.

1. Threads are being uniform lubricate, thanks to the constant yarn speed, the oiling roller speed is adjustable.

2. Release the tension from beginning to the end; it makes the winded package good appearances

3. LED display easy operation.



Circulating oil device.

1. Keep always the full level of oil to each spindle.

2. Big-scale return oil trough and oil fender to filter without pollution and oil waste.

3. One oil filter is devoiced for every oil wheel to reduce the oil slinging out.

4. One oil tank can supply for the use of 24 spindles.

5. Detachable filter, easy to clean.



Specification:



Mode

TS008O-A

TS008O-A

TS008O-Y

Con shape

Cone type

Cylinder type

Horn type

No of spindles

4 4 4

Cone for each spindle

1or 2

1or 2

1or 2

Cone angle

0°-2°20′

2°20′-5°57′

Max. winding speed



1000mtrs/min

Max. winding-up Dia



115mm

Measurement(M^3)



2250(L)×1050(W)×1650(H)mm

Pattern round number



2.5~4

Machine weight



580kg



Best Sale on Alibabba Fishing yarn winding machine/spool winder machine



Best Sale on Alibabba Fishing yarn winding machine/spool winder machineBest Sale on Alibabba Fishing yarn winding machine/spool winder machineBest Sale on Alibabba Fishing yarn winding machine/spool winder machineBest Sale on Alibabba Fishing yarn winding machine/spool winder machineBest Sale on Alibabba Fishing yarn winding machine/spool winder machineBest Sale on Alibabba Fishing yarn winding machine/spool winder machine



Best Sale on Alibabba Fishing yarn winding machine/spool winder machine
