China Factory Rayon Yarn Winding Machine and Poy Yarn Winder Machine
US$ 20,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
winding yarns on cones
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Popular Viscose Yarn Winder Machine and Soft Cone to Hard Cone Winder MachineUS$ 20,000 - 80,000MOQ: 1 Set -
China Wholesale Cheaper High-efficiency Cone Rewinding Machine From FactoryUS$ 20,000 - 80,000MOQ: 1 Set
-
Chinese Suppliers Most Popular Mono Filament Yarn Winding MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
2016 New Product Silk Yarn Winding Machine and Rayon Yarn Winding MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
2016 Competitive Price High-efficiency Tube Bobbin Winder MachineUS$ 20,000 - 80,000MOQ: 1 Set
Condition
New
Application
winding yarns on cones
Automatic Grade
Semi-Automatic
Production Capacity
300-1000Meter/min
Place of Origin
Zhejiang, China
Brand Name
TAIHE
Model Number
TH-11C
Voltage
220--440v
Power(W)
installed power 280w per spindle
Dimension(L*W*H)
1900MM X 700MM X 1500MM/SECTION
Weight
270kg/section
Certification
ISO9001:2008 / CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

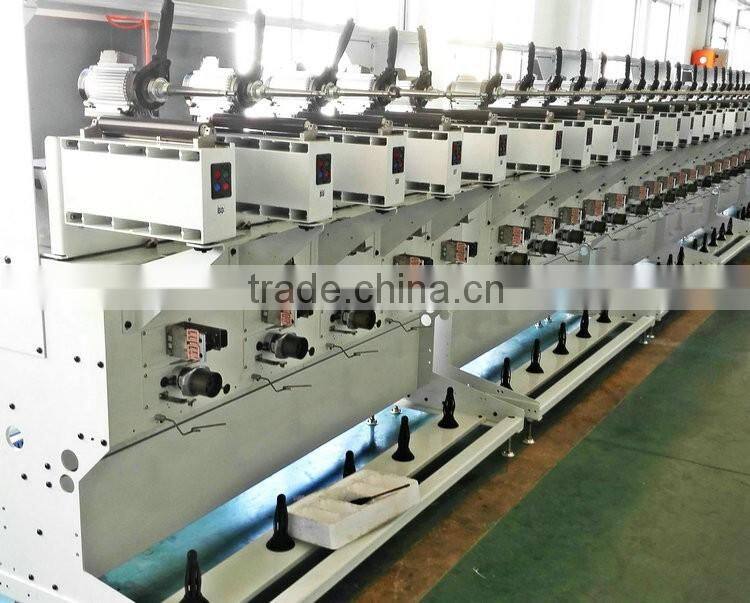

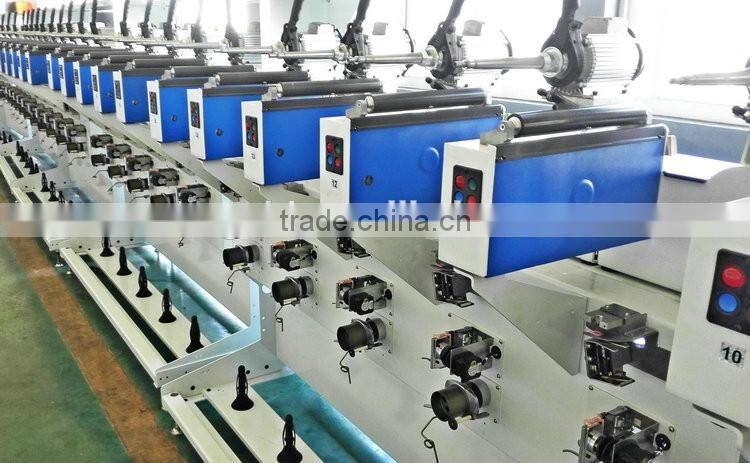

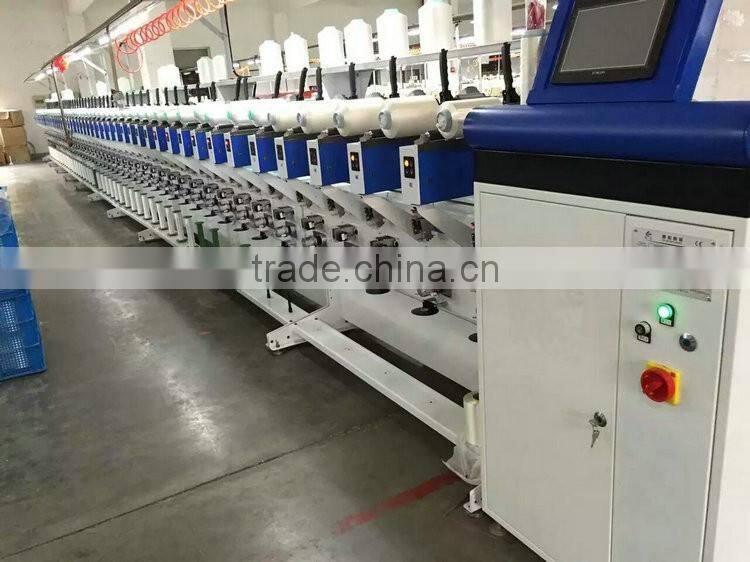

TH-11C Precision Filament yarn winding machine(pineapple cone winding machine),Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of cotton, flax, silk, and chemical fiber.
| Types of winding | program or precision |
| Mechanical speed | up to 1200m/min (process speed depending on process parameters) |
| Package shape | freely programmable |
| Traverse length | 147-250mm infinitely variable |
| Take-up package diameter | up to 280mm |
| Package weight | up to 4kg |
| Supply package diameter | up to 320mm |
| Yarns | textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns |
| Take-up tubes | cylindrical and conical up to 3°30′ conicity |
| Layout | single sided machine |
| Number of spindles per section | 5 |
| Min. / Max. number of spindles | 5/60 |
| Gauge | 360mm |
| Drive | individual |
| Installed power | ~280w per spindle |
| Power consumption | ~100w per spindle |
| Density of winding | automatic control |
| Volume per section (L*W*H) | 1880*780*1720mm |
