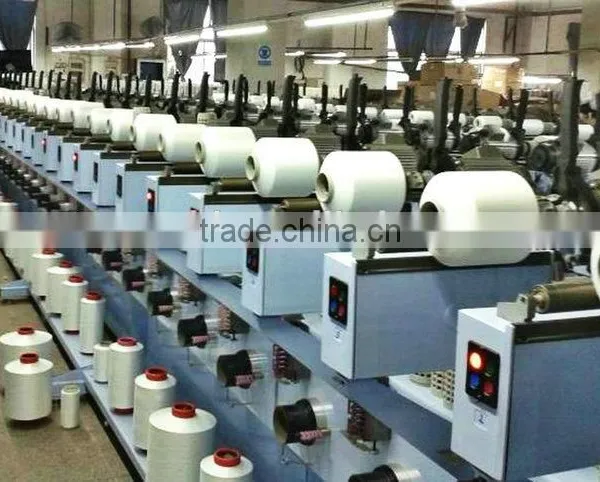

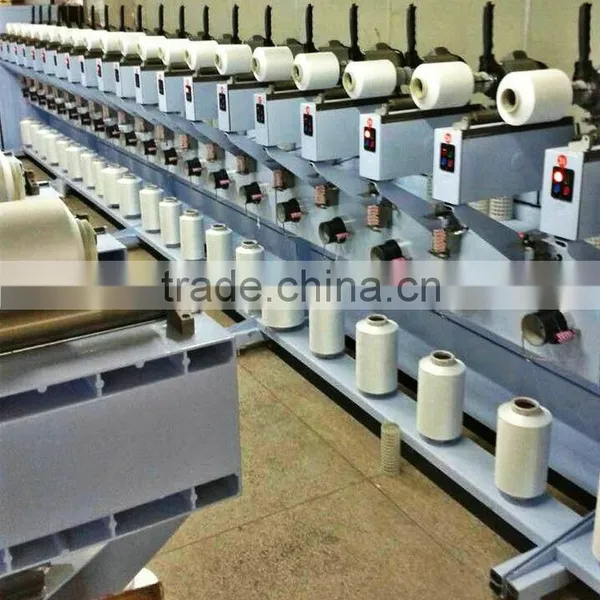

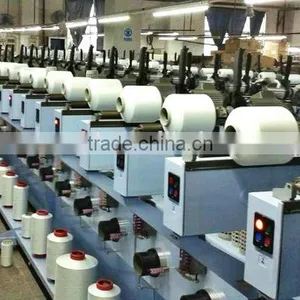

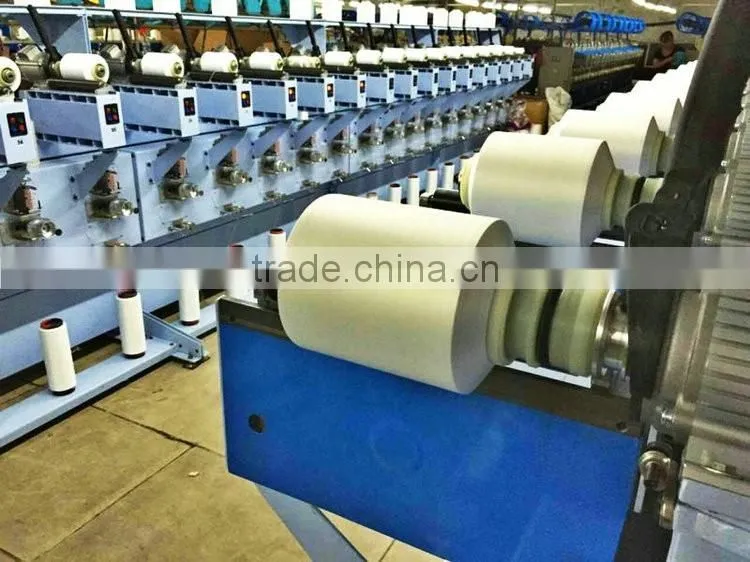

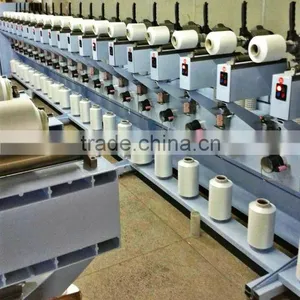

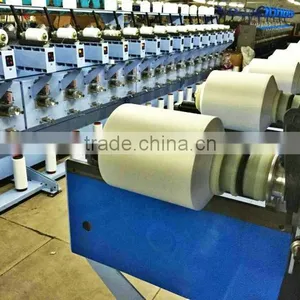

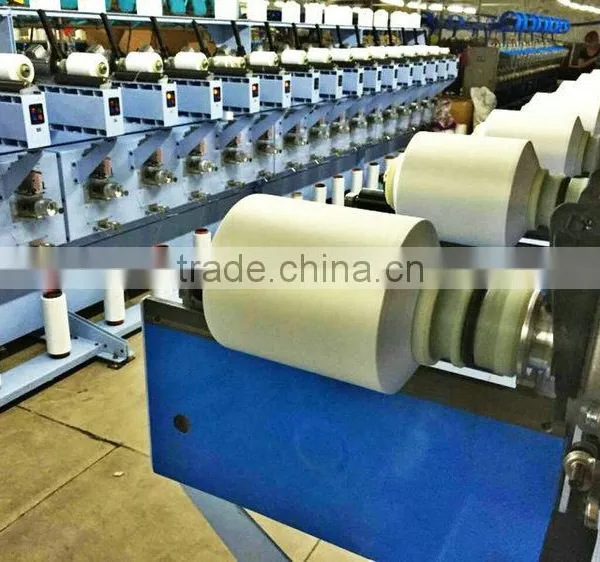

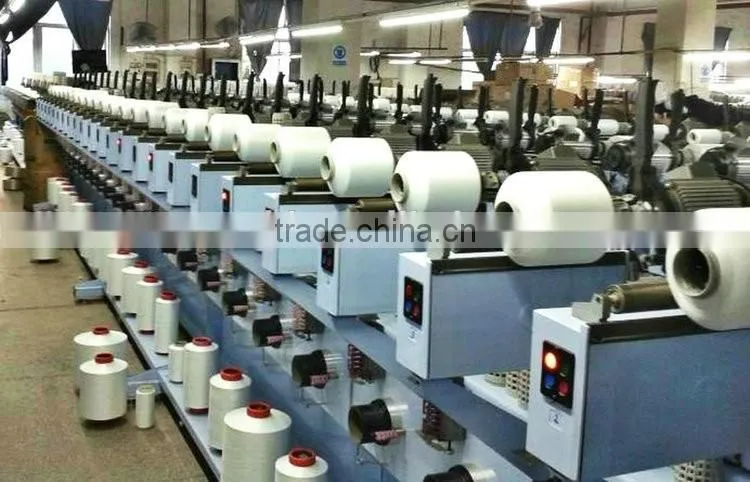

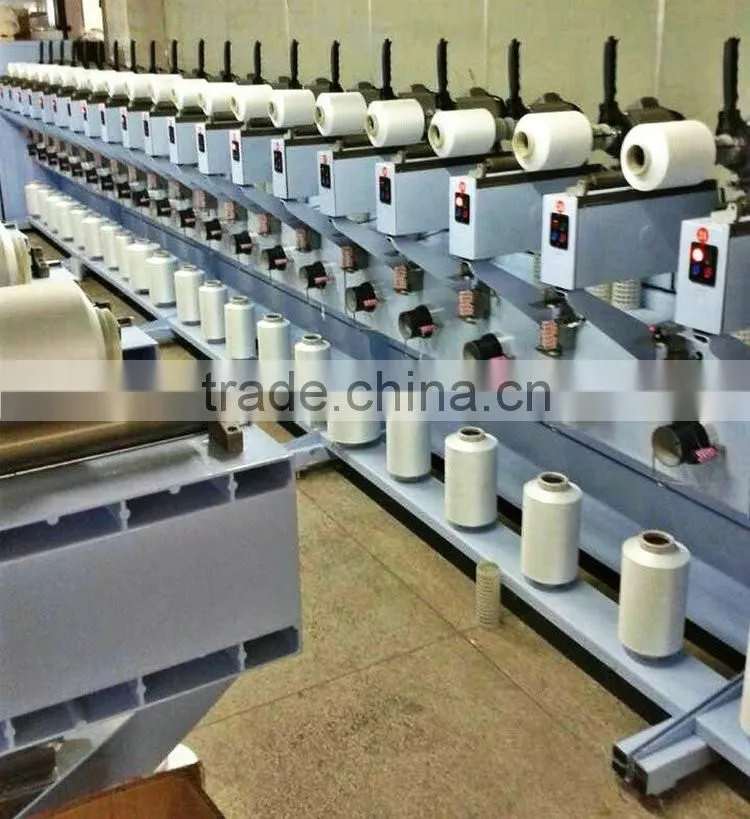

New Style FDY Yarn Winding Machine and Soft Package Winding Machine
US$ 20,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
winding yarns on cones
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Filament Yarn Winding Machine and Polyester Filament Yarn Winding MachineUS$ 20,000 - 80,000MOQ: 1 Set -
Latest Design FDY Yarn Soft Winder Machine and Filament Yarn Winding MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
China Precision Traverse Winder Machine and Precision Bobbin Winder MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
12 Months Warranty Soft Package Winder Machine and Before Yarn Dyeing Winding MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
China Supplier Pineapple Cone Winding Machine and Soft Package Winder MachineUS$ 20,000 - 80,000MOQ: 1 Set
Condition
New
Application
winding yarns on cones
Automatic Grade
Semi-Automatic
Production Capacity
300-1000Meter/min
Place of Origin
Jiangsu, China
Brand Name
TAIHE
Model Number
TH-11A
Voltage
220--440
Power(W)
280w per spindle
Dimension(L*W*H)
1900MM X 700MM X 1500MM/SECTION
Weight
270kg/section
Certification
ISO9001:2008 / CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
TH-11A Precision winding machine, it's a precision traverse type winding machine, Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1000 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of cotton, flax, silk, and chemical fiber.
| Types of winding | program or precision |
| Mechanical speed | up to 1000m/min (process speed depending on process parameters) |
| Package shape | freely programmable |
| Traverse length | 147-250mm infinitely variable |
| Take-up package diameter | up to 280mm |
| Package weight | up to 4kg |
| Supply package diameter | up to 320mm |
| Yarns | textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns |
| Take-up tubes | cylindrical and conical up to 3°30′ conicity |
| Layout | single sided machine |
| Number of spindles per section | 5 |
| Min. / Max. number of spindles | 5/60 spindles |
| Gauge | 360mm |
| Drive | individual |
| Installed power | ~280w per spindle |
| Power consumption | ~100w per spindle |
| Density of winding | automatic control |
| Volume per section (L*W*H) | 1880*780*1720mm |
