Help CenterOnline Monitoring of the Dust Particle for Clean Room
Related Products
Clean room / Online monitoring of the dust particle

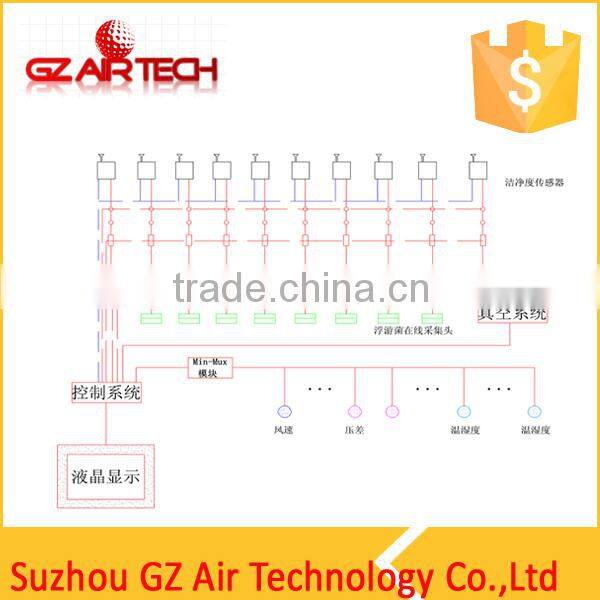

Configuration instructions

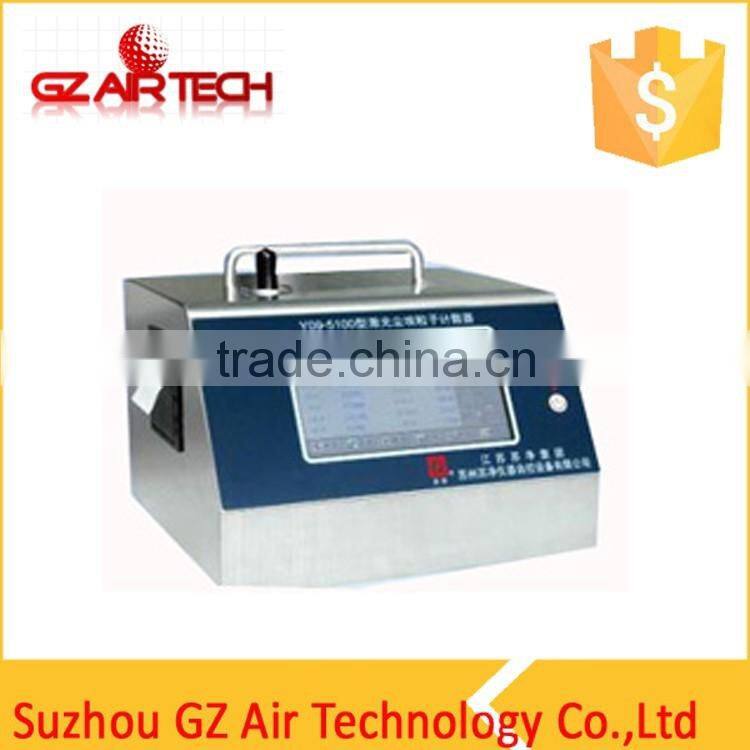

1.Dust particle detection sensor transmitter,
The sampling flow rate: 28.3L/min
The particle size of channels: 0.3, 0.5, 1, two 5.0um optional
2.Flow sensor detection sampling flow rate, and for the cubic data according to the actual flow conversion.
3.The sampling flow throttle valve control, keep the sampling flow rate was 28.3L/min.
4.Solenoid valve control sampling.
5.Signal processing system: converting the analog signal transmitter to send over the dust particle counter to digital conversion, and statistics.
6.Controller to detect and control the sampling and sampling system.
7.Display: display all parameters, and can make the curve chart.
8.To maintain a constant pressure sampling sampling system.
The main parameters of the two.
1.The sampling flow rate: 28.3L/min---50L/min (optional)
2.Detection channels: 0.3um, 0.5um particles, 1.0um, 5.0um, can be arbitrarily selected two files
3.The sampling system of constant pressure value: vacuum degree 25kPa
4.Laser wavelength: 650nm, life of 300000h
5.Power: 60W
6.Power supply: AC220V/50Hz and DC12v
Installation instructions
1.Sampling pipeline system adopts stainless steel tube fast connection.
2.Communication lines using shielded twisted pair line, with stainless steel line pipe.
Four other functions can be extended.
1.Scalable microbial sampler sampling
2.Can be expanded pressure online detection
3.Scalability speed on-line detection
4.Can be extended to a temperature and humidity detection
5.To provide 3Q proof file
Five control instructions
- With the online particle sensor for real-time online cleanliness monitoring.
The screen and the online particle sensor is connected through the PLC LCD touch.
The online sensor address configuration, up to 1024.
- Online adjustable flow and the precision of sensor.
- Optional sensor to start and stop.
- Start time, running times and run arbitrary spaced sensor.
The sensor can be provided in any cleanliness level alarm, alarm information display, can be equipped with sound and light alarm.
Real time save the monitoring data in the U disk, customers can according to transfer data to the computer, or directly connected to the Internet and convenient query, query and processing of historical data.
Can display curve - monitoring data form, convenient for cleanness of the law and trend of change.
The sensor plug air quality - monitoring indoor temperature and humidity, pressure, wind speed, planktonic bacteria online comprehensive sampling parameters.
The host computer can be connected to the Internet, in the world at any position can be viewed online detection data and status through the internet.
Our comapny major in clean room project and clean equipment,if you need more detail information,please check clean room project
