Assembly Winding Machine

Specifications

Assembly Winding Machine
TS008A Multi-ply yarns mixing winding machine, for mixing winding 2-6 plys yarns together on the bobb

Name : TS008A Assembly / Multi-ply yarns Winding Machine

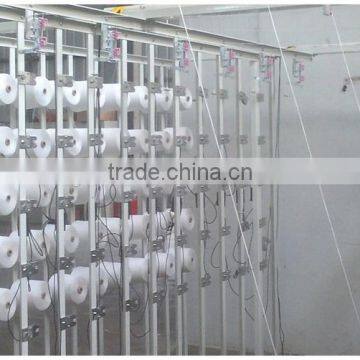

Pictures :







Machine Application:

TS008A Multi-ply Yarn Winder Machine, it's for multi ply yarns mixing winding together, can wind like 2-12 plys yarns on the bobbin, can suit like cotton yarn, wool yarn, fiber yarn, polyester yarn and etc.





Parameters:



1. Master digital controller;



2. each spindle run separately with a motor drive;



3. Length counter installed on each spindle;



4. Auto stop device;



5. adjust speed by inverter;



6. uniform tensioner;







Specification:



Technical parameters:

Spindle No. Max 36 spindles Spindle Gauge 420MM Spindle NO. per group 4 spindles Winding yarn Plys 2-12 plys Winding Speed ≤500m/min Driver: Each spindle with a motor driving Tensioner: tabletting tension Auto Stop Device Yarn sensor Traverse Gauge 6-10' inch Air Splicer Optional installed Blower cleaner Optional installed Brake system Optional installed Dimensions L 1920 x W 850 x H 1600 mm (one group size)
