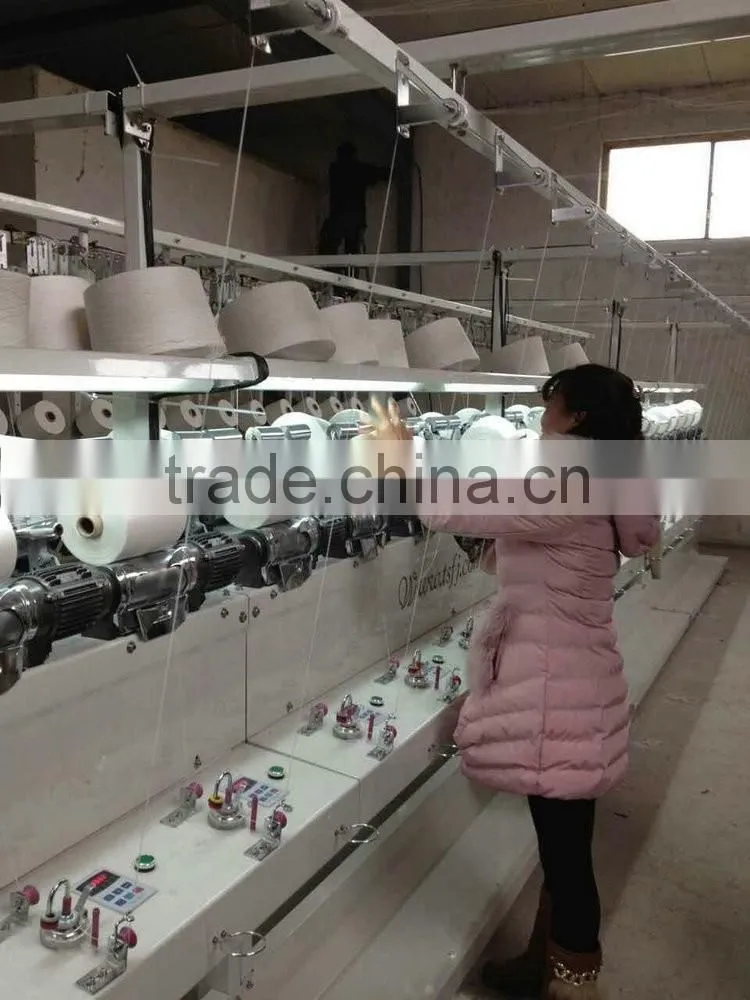

Economical Durable Use Assemble Yarns Winder Machine/Doubling Machine
US$ 10,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
mixing multiply yarns winding
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Different Design Mixing Yarn Winding Machine and Assemble Yarns Winder MachineUS$ 10,000 - 40,000MOQ: 1 Set -
New Design Doubling Winder Machine and Mixing Yarn Winding MachineUS$ 10,000 - 40,000MOQ: 1 Set
-
2016 New Product Doubling Winding Machine and Doubling Winder MachineUS$ 10,000 - 40,000MOQ: 1 Set
-
Tangshi New Type High Speed Assembly WinderUS$ 10,000 - 35,000MOQ: 1 Set
-
2015 New Type High Speed Aassembly Winding MachineryUS$ 10,000 - 35,000MOQ: 1 Set
Condition
New
Application
mixing multiply yarns winding
Automatic Grade
Semi-Automatic
Production Capacity
300-1000Meter/min
Place of Origin
Jiangsu, China
Brand Name
TANGSHI
Model Number
TS008A
Voltage
0.18kw/spindle
Power(W)
0.18KW/Spindle
Dimension(L*W*H)
L 1920 x W 850 x H 1600/section
Weight
300KGS/section
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Machine Application:

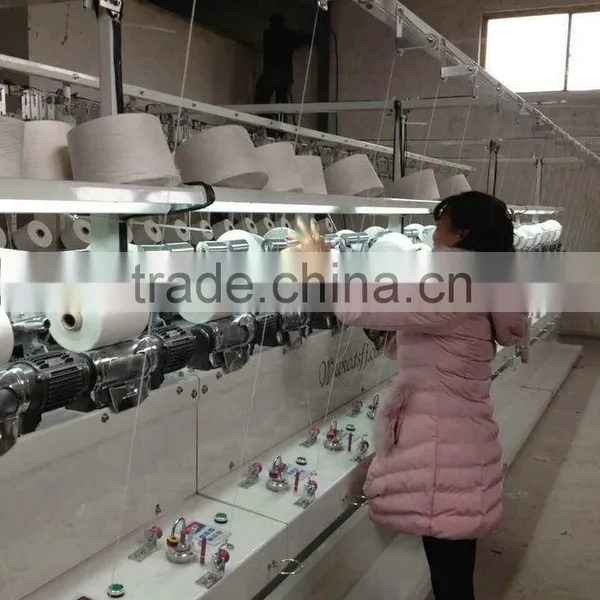

TS008A Multi-ply Yarn Winding Machine, it's for multi ply yarns mixing winding together, can wind like 2-12 plys yarns on the bobbin, can suit like cotton yarn, wool yarn, fiber yarn, polyester yarn and etc.
Parameters:
1. Master digital controller;
2. each spindle run separately with a motor drive;
3. Length counter installed on each spindle;
4. Auto stop device;
5. adjust speed by inverter;
6. uniform tensioner;
Specification:
Technical parameters:
| Spindle No. | Max 36 spindles |
| Spindle Gauge | 420MM |
| Spindle NO. per group | 4 spindles |
| Winding yarn Plys | 2-12 plys |
| Winding Speed | ≤500m/min |
| Driver: | Each spindle with a motor driving |
| Tensioner: | tabletting tension |
| Auto Stop Device | Yarn sensor |
| Traverse Gauge | 6-10' inch |
| Air Splicer | Optional installed |
| Blower cleaner | Optional installed |
| Brake system | Optional installed |
| Dimensions | L 1920 x W 850 x H 1600 mm (one group size) |
