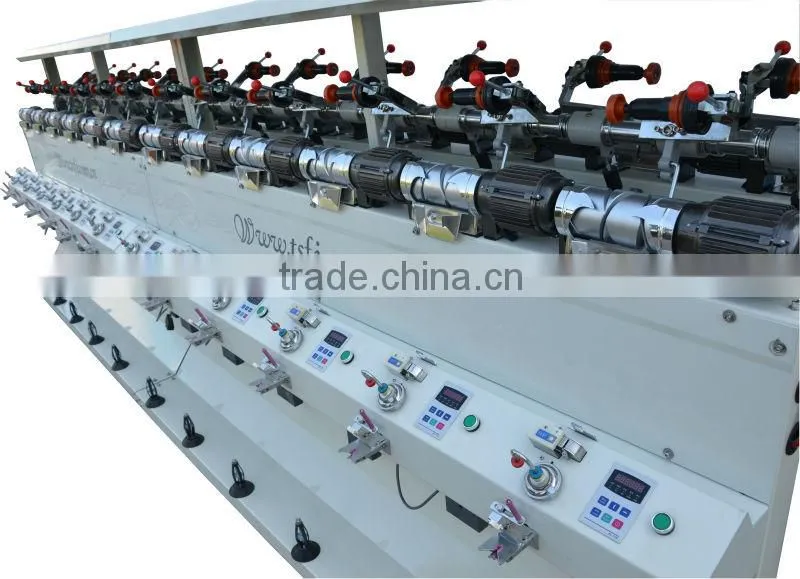

Name : TS008M thread winding machine

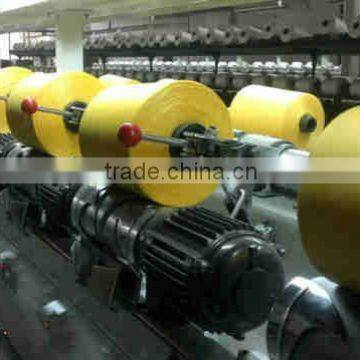

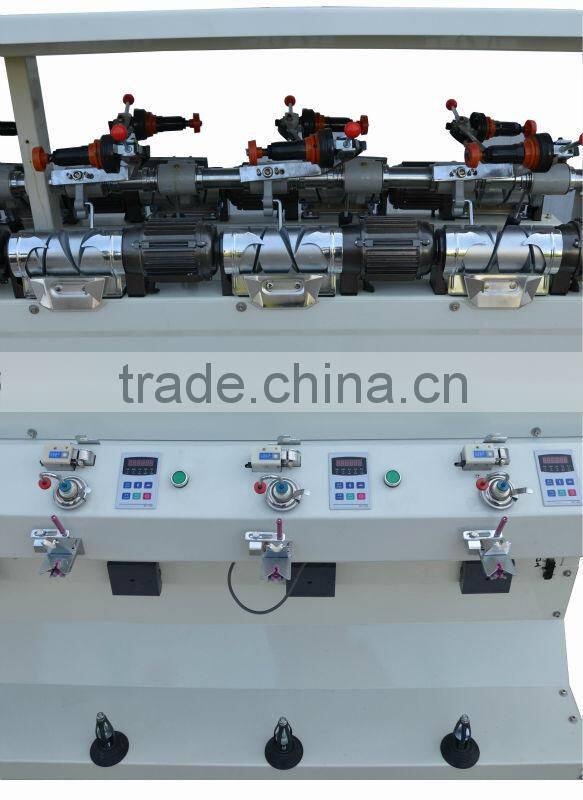

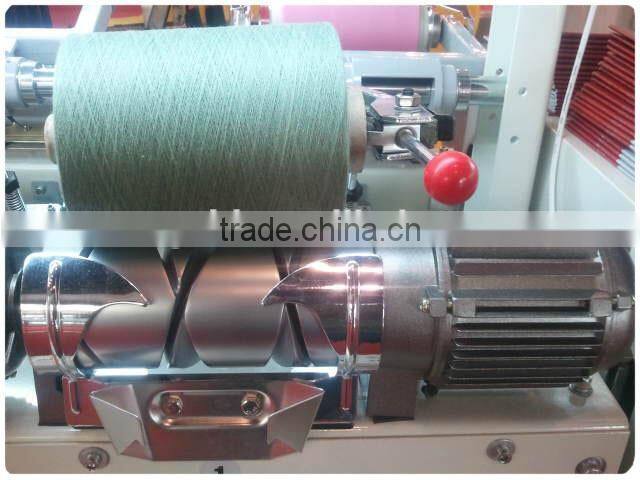

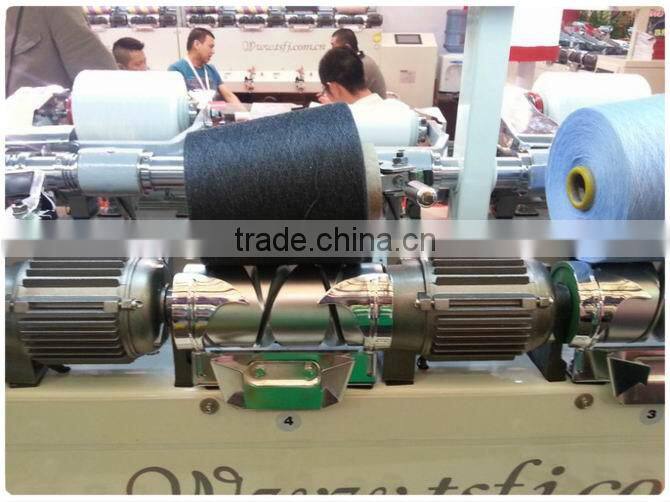

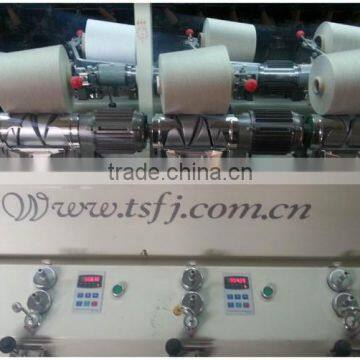

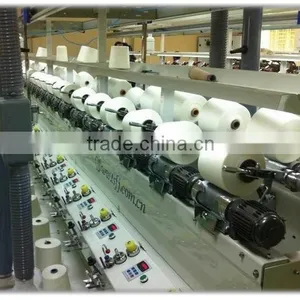

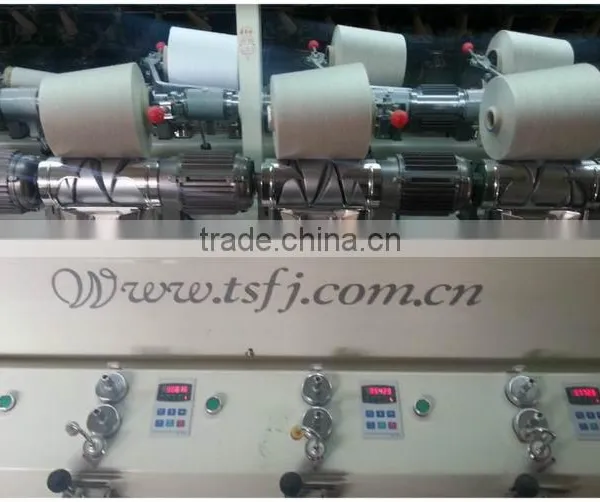

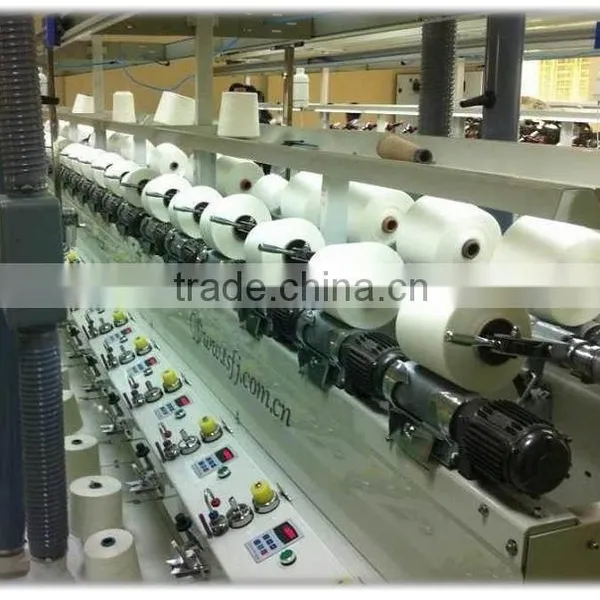

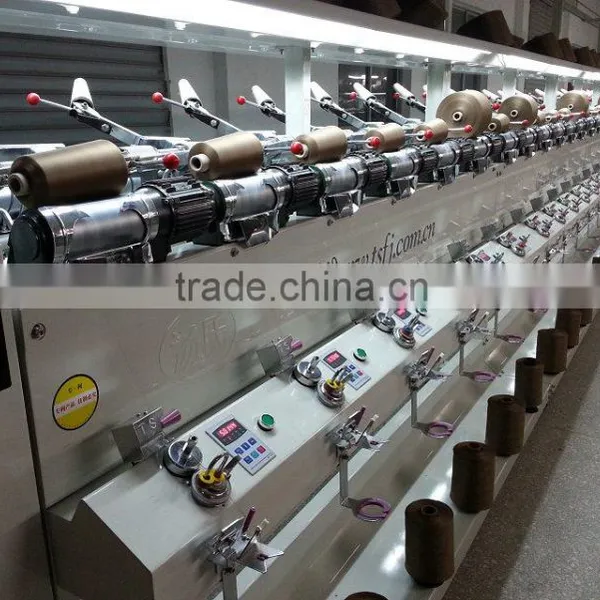

Pictures :
Machine Application:
TS008M High Speed Plastic Cone Winding Machine, it’s mainly for After Dyeing rewinding yarns using or thread rewinding from one bobbin to another bobbin using , suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)
Parameters:
1.Drive: every spindle per motor
2.Winding speed: 300-1000 M/min
3.Has function of auto stop when yarn break.
4.Package Dia≤ 250mm; Take-up Traverse: 150mm;
5.Each spindle with length counter;
6.Advanced control panel;
Specification:
Bobbin type: |
6’(170mm) |
Layout: |
Double-side, can be 12-96 spindles |
Power Supply |
Three phases 380V 50/60HZ |
Driving |
Every spindle per motor |
Power Consumption |
0.09KW/spindle |
Take-up package |
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
Yarn tension and waxing device |
Every spindle has a yarn tension and waxing device |
Auto Stop Device |
Each spindle install auto stop device |
Electronic Anti-Stack |
Inverter Control |
Cleaner device |
Every spindle has a Mechanical Knife yarn cleaner |
Electronic Yarn Cleaner |
Optional installed |
Air Splicer |
Optional installed |
Blower cleaner |
Optional installed |
Lighting System |
Optional installed |
Dimensions |
L 13700 x W 1050 x H 1650 mm |
