Hhigh efficiency automatic self cleaning filter Air Shower

Specifications

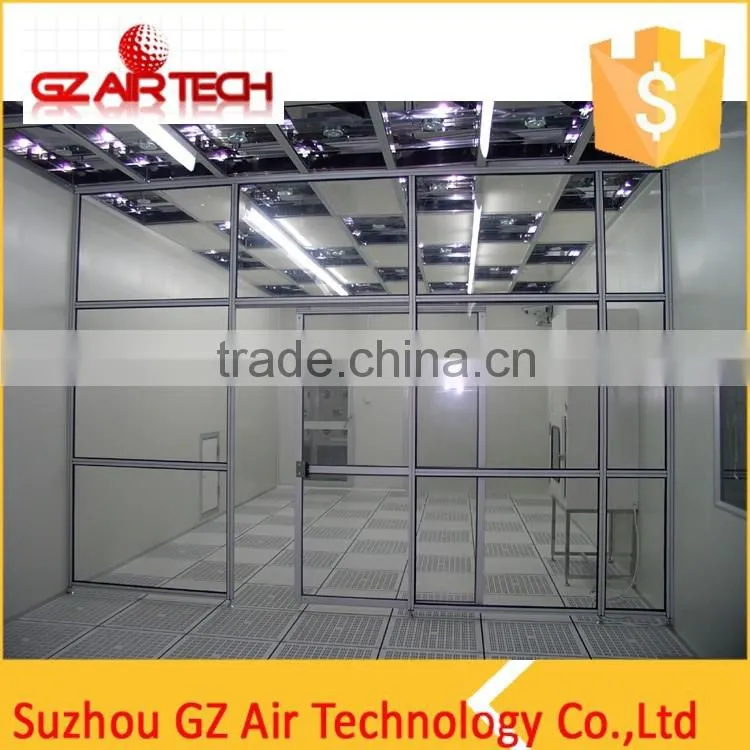

This is a clean room full service construction under GMP request. Turnkey project.

 A Cleanroom or clean room is an environment, typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors. More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size. To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter, corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.

We kindly needs following information to design your clean room

The structure parts:

1.  Panel style:

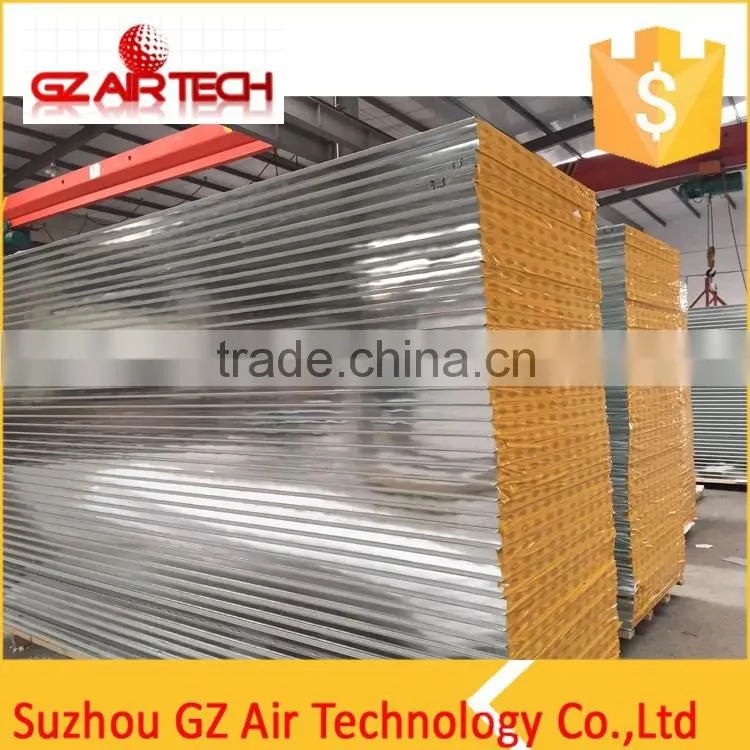

Metal-face polyurethane core board,

Metal-face rockwool core board (widely used),

Metal-face polystyrene core board (without fire proof),

Metal-Face Honeycomb Core Board,

Metal-Face Plastered Core Board (widely used for ceiling),

Metal-face glass-magnesium core board.

Panel thickness: 50mm and 100mm

Panel Height: according to customer request

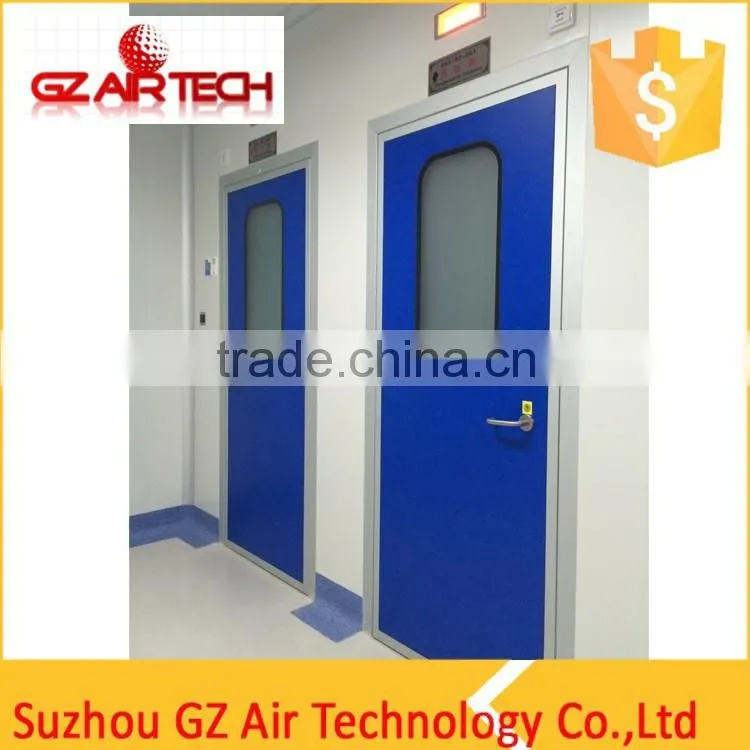

2.  Door shape and window shape and quantities

3.  Ornament material: circle 50 degree, 75 degree, alloy aluminum, silver color or painted color.

4.  Layout drawings

5.  The house structure: steel structure or ferroconcrete

Air conditioner and air fan parts

1.  The technical height(the height between ceiling to girder lower point)

2.  Air feeding duct and air sucking duct direction and arrangement

3.  The clean grade request, temperature and humidity request, pressure balance request, wind speed request.

4.  Air exhaust request and air exhaust quantity request

5.  Workers quantity and equipments heat generating amount

6.  Air conditioner or air fan brand and style request:

Water cooling or fan cooling?

Equipment parts:

1.The air shower room specification and material request.

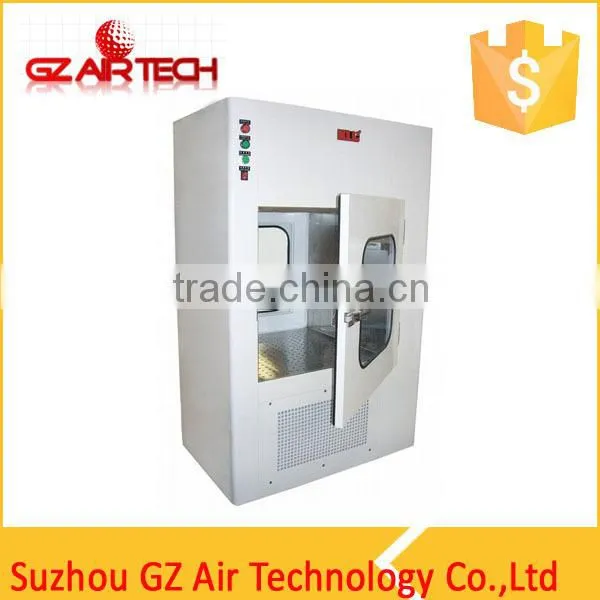

2.The pass box specification and material, technical request.

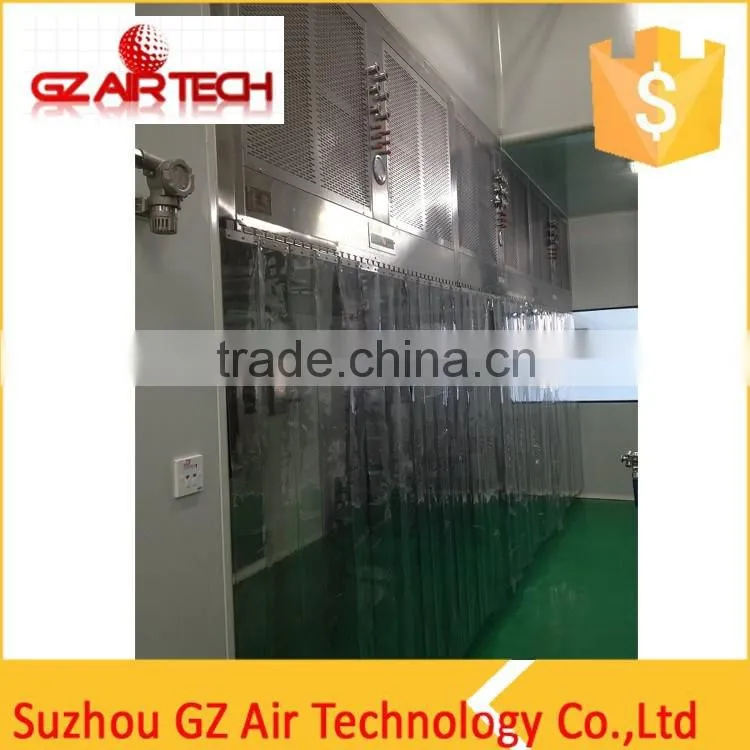

3.Laminar flow specification and request

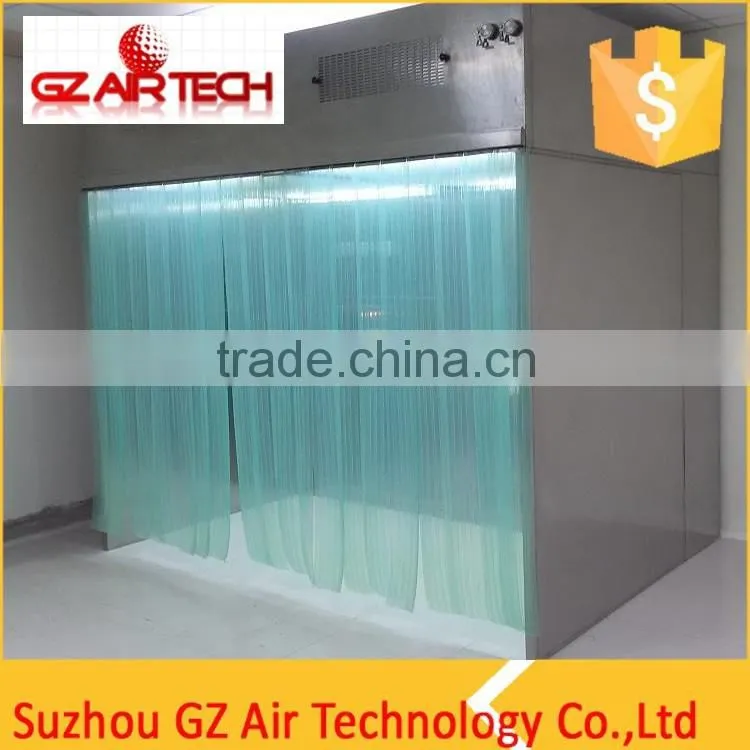

4.Weight room specification and request

5. FFU specification and request

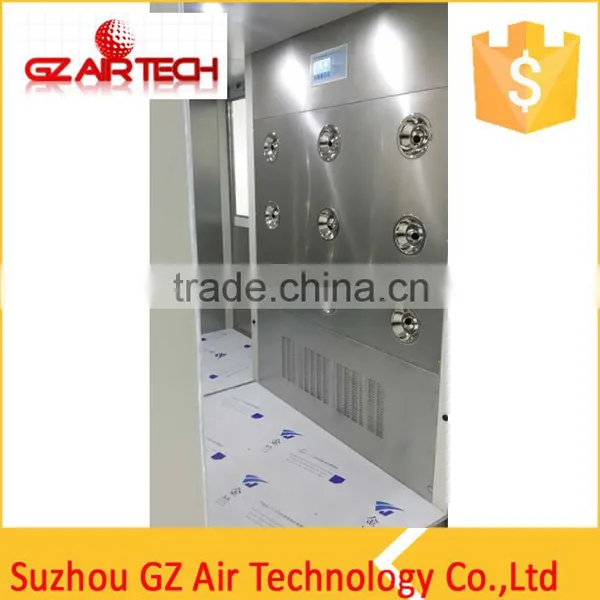

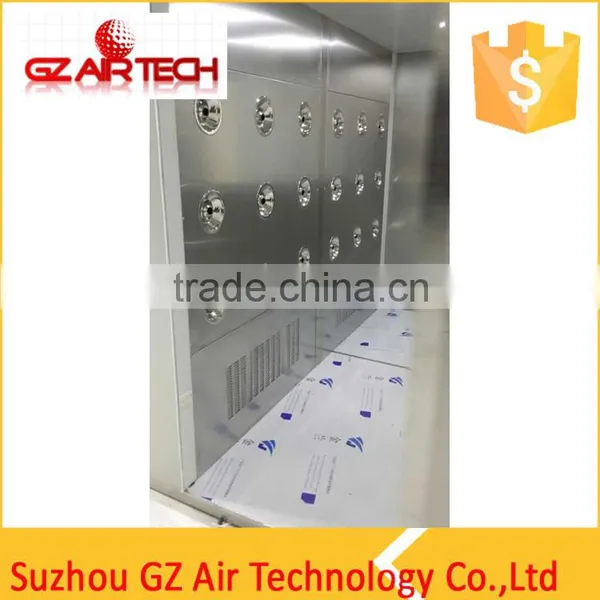

AS series air shower

Characteristics:

This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower

Main characters:

Photoelectric control, automatic shower.

Circulated air design keeps shower area clean in non-shower state.

Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.

Made as negative pressure and anti-exploding air shower according to users’ requirement.

Equipped with the device to remove static

Carry on air brake, cushion type and other particular design, manufacturing.

Parameter:

Electricity Parts

1.Clean room illumination request, clean light style

2.Total power

3. Control style (full auto/manual)

4. Wire hidden style (pretreatment/hidden in sandwich board)

Floor parts:

1.The cement basic (the cement floor intension and flat degree)

2.Floor request (PVC/roller/plate static proof request, epoxy color)
