Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WANSHFA
Model Number:
KN1-403
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
WANSHFA
Model Number
KN1-403
Max. Current
5A
Max. Voltage
250V
Mechanical Life
10000
Specifications
Min toggle switch1.used for instrument,electrical appliances
fessional manufacturer and exporter for 15 years
3.OEMODM
KN1-403 min toggle switch(electrical switch,switch) mainly used for instrument, electrical appliances toggle switch(electrical switch )
toggle switch
1) Max. rating current and voltage: 2A, 250V AC
2) Contact resistance: ≤50mΩ
3) Insulate resistance: ≥1,000MΩ
4) Dielectric strength: 1,000V
5) Electronic life (cycles): ≥10,000
6) Pole: single pole, double poles, three poles, four poles
7) Circuit: on-on, mid, stop, single return, single big return, double return

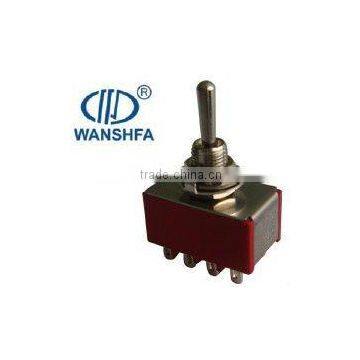

Toggle Switch KN1-403
Specification:
| Rating | 2A 250V |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Withstand voltage | 1500VAC |
| Switching life | ≥10000cycles |

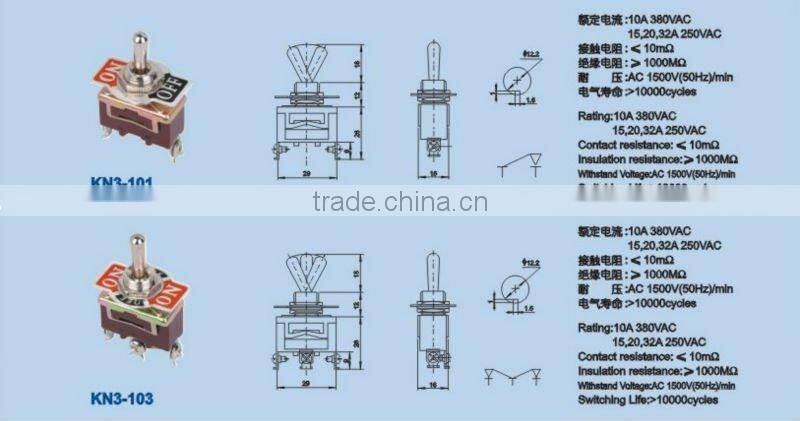

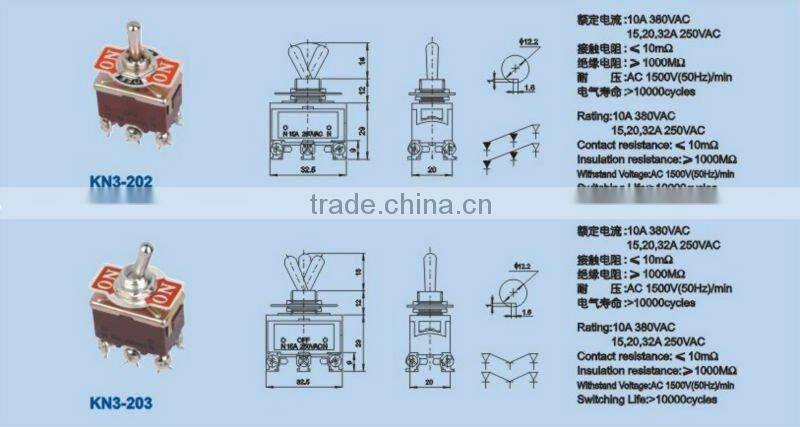

Drawing
Catalogue
Our factory
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
1995
Factory Size
5,000-10,000 square meters
Total Employees
101 - 200 People
