on off rocker switch/miniature rocker switch KCD6-201
- 300000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card PayPal
- car engine start switch racing switch panel
- high quality KCD101-029 rocker switch 6a 250v 10A 125V
- Universal panel switch,racing switch panel,12v electric switch panel
- Racing ignition switch panel,electric switch panel
- 12/24V Universal F1 Racing Toggle Switches With 1 ACC Control
- KCD1-105 20MM round rocker switch 3 Pins 6A 250V Power Switch with led light SPST 3PIN On/Off button switch
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Wanshfa | Model Number: | KCD6-201 |
Max. Current: | 10A | Max. Voltage: | 250V AC | Mechanical Life: | More than 10000cycles |
Product Description
Specifications
on off rocker switch KCD6-201more than 10000cycles life time
Good material, strict quality control and nice price
OEM,ODM
Item: on off mini rocker switch KCD6-201,mini rocker switch,miniature rocker switch, momentary rocker switch
Specifications:
6A 250V AC/10A 125V AC
Contact resistance: ≤50m ohm
Insulation resistance: ≥1500V AC/1min
switching life: ≥ 10000cycles
Character:
1. ON Off control
2. Terminal size selection: 2.8/4.8*0.6mm

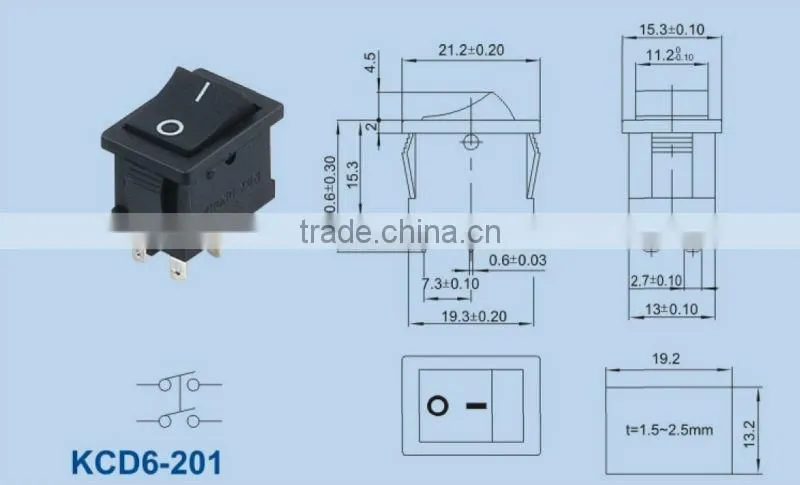

3. Installation dimension: 19.2*13.5
Thickness: 1.5-2.5mm
What is rocker switch?
A rocker switch is an on/off switch that rocks (rather than trips) when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth. A rocker switch may have a circle (for "on") on one end and a horizontal dash or line (for "off") on the other to let the user known if the device is on or off. Rocker switches are used in surge protector s, display monitors, computer power supplies, and many other devices and applications.
Whey to select we wanshfa electronics?
1. We are professinal manufacturer in this filed more than 15year.
2. All items are use good materials.
3. Can supply OEM, ODM service.
4. Fast delivery and nice service.
Welcome friends distribute or agent our wanshfa brand switches overabroad!
Product photo:
