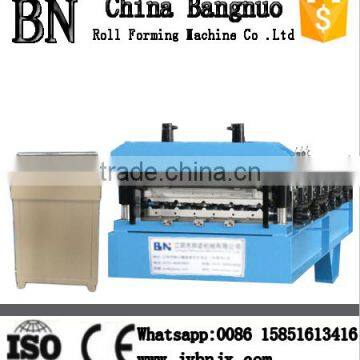

standard metal storage making machine rack roll forming machine

1. 3T manual decoiler
2. Feeding→roll forming→rectify device→post cutting
3. Output table
4. Hydraulic station
5. Control desk

Profile, layout & production flow:

Profile thickness between 0.4-0.8mm carbon steel
Effective width: base on proilr
Following profile in only for customer reference, the exactly can be provide by customer
This machine include two sizes

Uncoiler

 Dimensions: 1700mm*1000mm*800mm
 Width of feeding: 300mm
Capability: 3Ton
Rnge of expand(by manual): 420mm—510mm
 Mode of expand &fight: inner expand &fight by manual
 Way of feeding: manual
 Color: Blue (or base on customer request)
 Quantity: 1

Feeding

Armed adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
 Entrance table-guide: adjustable
 Entrance width range:100-250mm
 Entrance and guide roller: diameter is ￠65mm, material is sae1045, HRC48-52° surface with chrome
 Quantity: 1

 Post cutting system

 Machine adopt hydraulic cutting system, When cutting the machine will stop, after cutting will start the motion automatically.
Hydraulic power: 3KW
 Hydraulic working pressure: 10Mpa
 Cutting after forming: Cut the sheet after roll forming to required length
 Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
 Length measuring: Automatic encoder lengthmeasuring,

Output table

 Frame: welding by tube
 Size: about 1.0m long*0.3mwide*0.9mhigh
 One out table with support roller
Supporter roller: ASTM 1045 with chrome
 Diameter of rollers: 55mm
 Color: Blue
 Quantity: 2 units

Control desk

Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
 Length inaccuracy can be amended easily.
 Control panel: Button-type switch and touch screen
 Unit of length: millimeter (switched on the control panel)
Language: English/Spanish and Chinese
 PLC brand: Panasonic
Frequency converter brand: Yaskawa, quantity: 1
 Touch screen: Taiwan Weinview

Pre-sales service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
